3D Laser Customization System for Luxury Jewelry Enables Intricate Personalized Marking on Curved Jewelry Surfaces

Customization:	Available
After-sales Service:	24 Hours Online After-Sales
Warranty:	2 Years

Basic Specifications

Model NO.

FB-20/30/50W UV-5W CO2-30/60W

Laser Visibility

Invisible

Applicable Material

Metal and Nonmetal

Cooling System

Air / Water Cooling

Technical Class

Pulse Laser

Laser Wavelength

1064nm, 355nm, 10.6μm

Type

3D Laser Marking Machine

Production Capacity

100 sets/Month

Product Overview

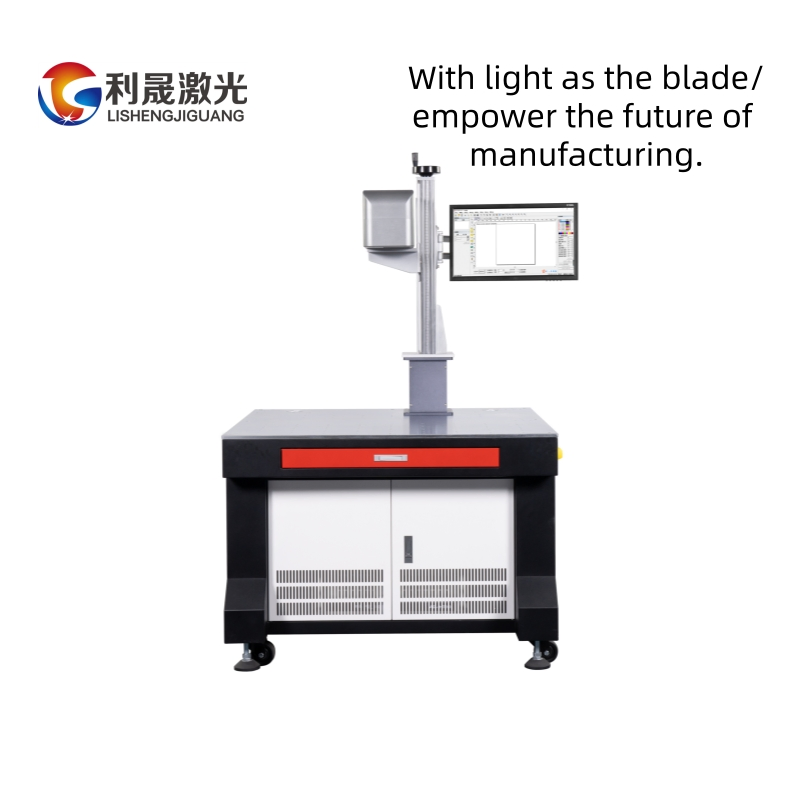

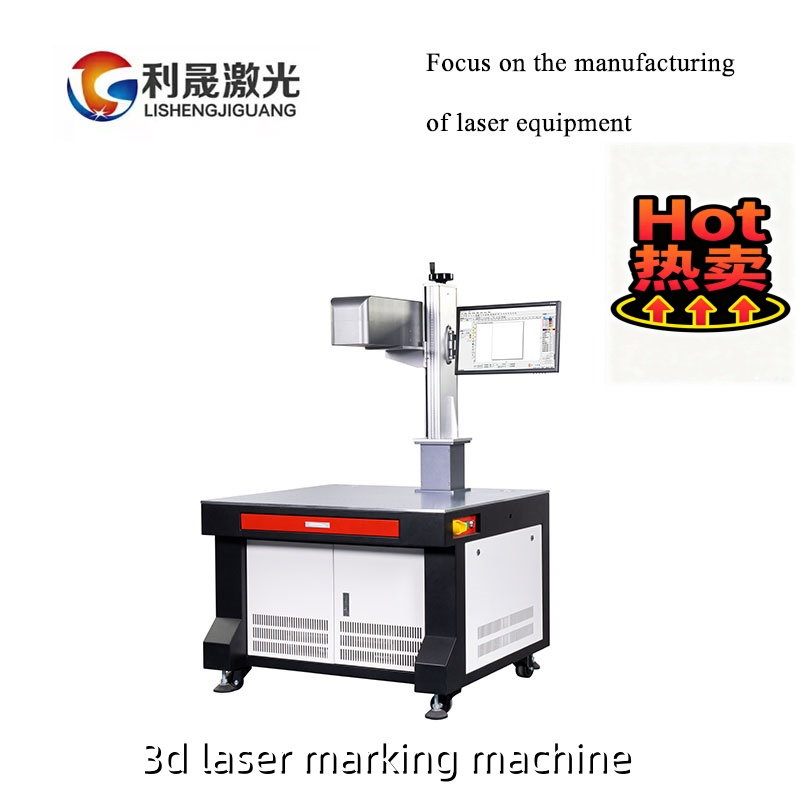

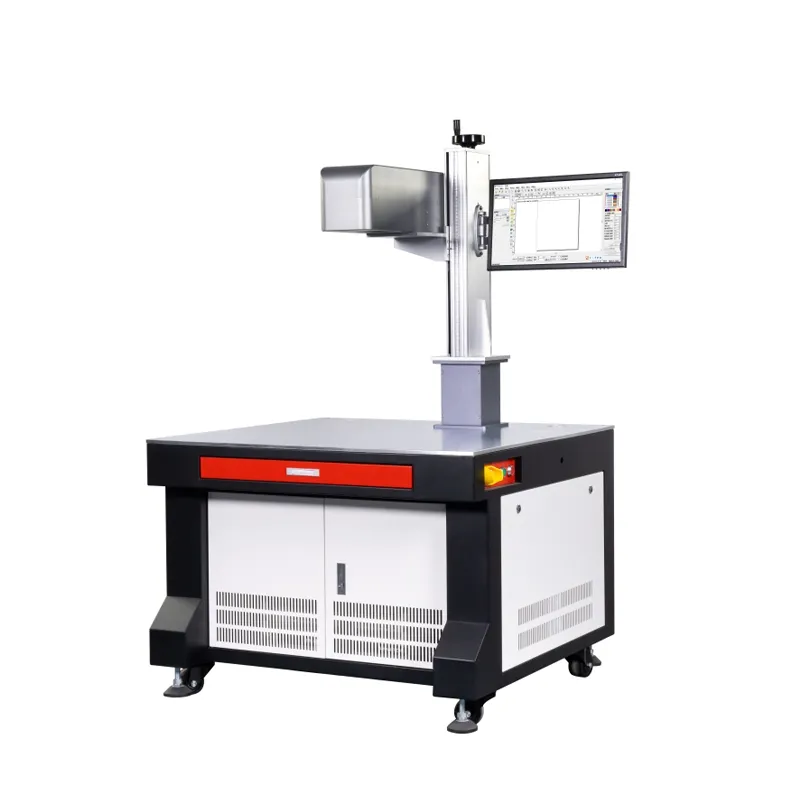

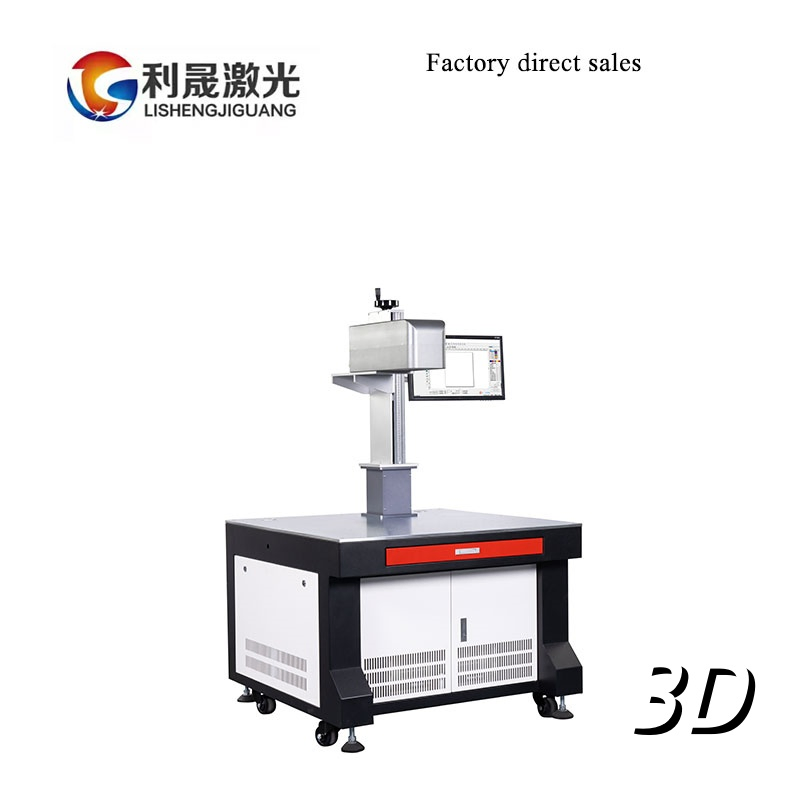

The 3D Laser Marking Machine is a high-precision laser processing equipment developed to meet special laser marking processing needs such as long automotive interior parts, 3D curved objects, and marking on different planes. Unlike traditional 2D laser marking, this system adopts an advanced pre-focusing method and is equipped with a dynamic focusing mount. Through software control, the system changes the focal length of the laser beam to achieve accurate surface focusing on objects with different heights.

Key Features

◈

Superior Precision: Uses larger X and Y axis deflection lenses for better focusing precision and more effective energy distribution.

◈

Multi-Height Marking: Capable of one-time marking on objects with different heights without multiple assembly or focus adjustments.

◈

Complex Surfaces: Efficient marking on uneven, gradient, and 3D curved surfaces without visible distortion.

◈

Rich Effects: Realizes black, white, and multi-color marking on the same plane for enhanced aesthetic results.

◈

Dynamic Focusing: Automatically adjusts the laser focal length in real-time to meet complex 3D marking requirements.

Technical Parameters

Model	LS-3DFB-50/100W	LS-3DUV-10/20W	LS-3DCO2-60/120W
Applicable Wavelength	1064nm	355nm	10.6um
Galvanometer Aperture (mm)	10/20/30	10	30
Repeat Marking Angle (μrad)	8	8	8
Max Processing Speed	350@400x400	600@400x400	350@400x400
Working Range (mm)	100x100 to 1000x1000	125x125 to 400x400	300x300 to 1200x1200

Application Scope

Suitable for laser marking processing of special-shaped products such as products requiring marking on different surfaces, curved surfaces, inclined surfaces, high-low surfaces, and irregular surfaces. It is ideal for refined marking needs such as relief engraving, inner engraving, stone carving, and large-format industrial products.

Frequently Asked Questions

Q1. Are you a manufacturer?

Yes, we are a professional Chinese manufacturer and factory specialized in high-end laser equipment.

Q2. What is the delivery time for these machines?

Standard machines usually take 7-14 days. For customized or non-standard requirements, delivery ranges from 15 to 30 days.

Q3. What materials can be processed with this 3D laser?

The system is compatible with both metal and non-metal materials, depending on the laser source (Fiber, UV, or CO2) chosen for your specific application.

Q4. How does 3D marking differ from traditional 2D marking?

3D marking uses dynamic focusing to maintain focus on curved or irregular surfaces, whereas 2D marking is limited to flat planes within a specific range.

Q5. What payment methods do you accept?

We accept various payment methods including T/T, L/C, and other standard international trade payment options.

Q6. Can the machine be customized for larger working areas?

Yes, the working range is customizable. For instance, fiber models can be customized up to 1000x1000mm and CO2 models up to 1200x1200mm.
