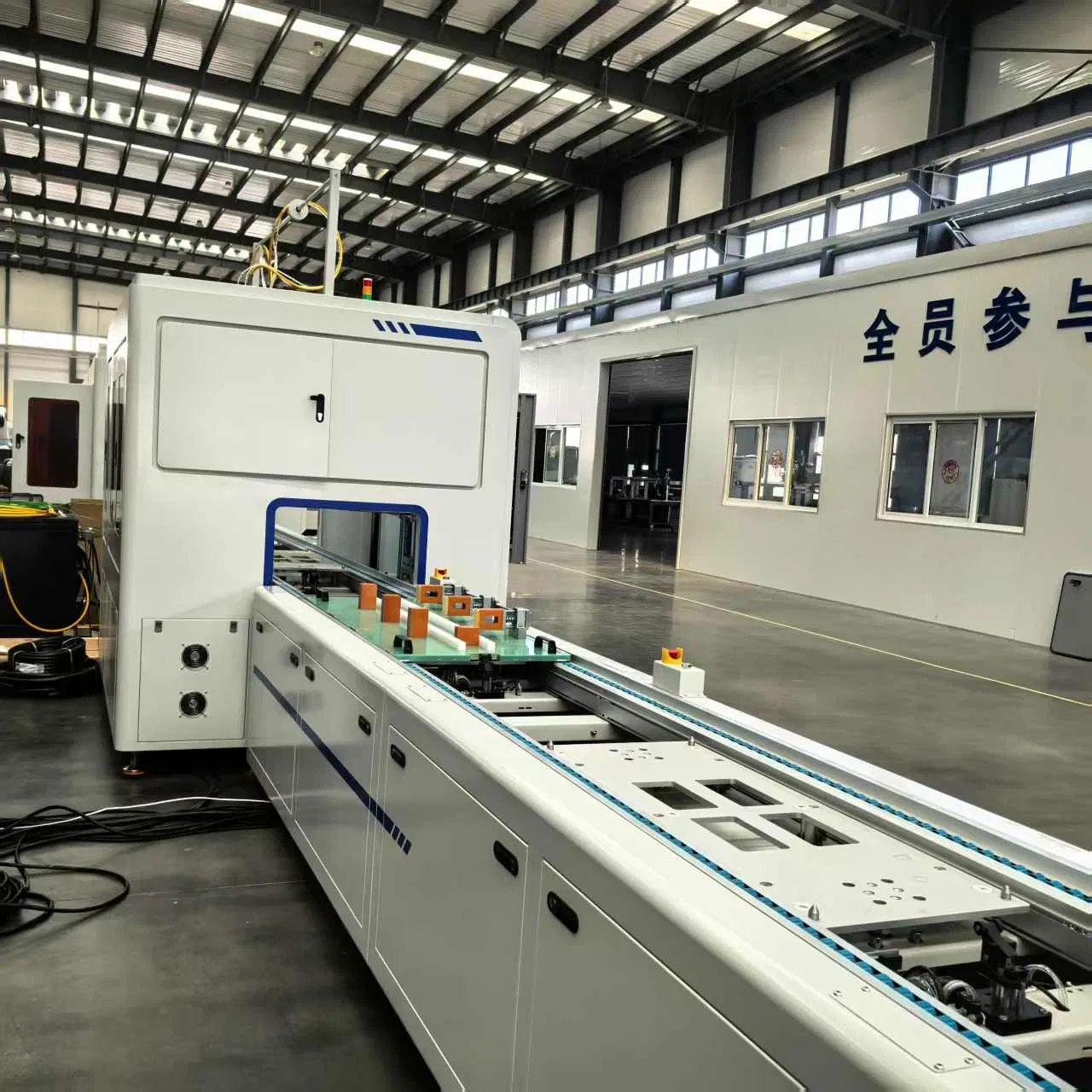

Automated Energy Storage Battery Assembly Line with Laser Welding Precision

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

1

Basic Specifications

ConditionNew

AutomationAutomatic

Welding Precision±0.1mm

Degree of Automation≥ 95%

Warranty2 Years

CertificationFDA ISO CE

Production Capacity1.5gwh/Per Year

Package Gross Weight200.000kg

2

Product Description

The Energy Storage Prismatic Battery Module PACK Line is an efficient, intelligent, and customized automated production line, specifically designed for the energy storage field. It is suitable for application scenarios such as large-scale energy storage systems, home energy storage, and industrial energy storage. This production line integrates advanced laser welding technology, automated assembly systems, and intelligent detection equipment, aiming to provide battery modules with high consistency and high reliability.

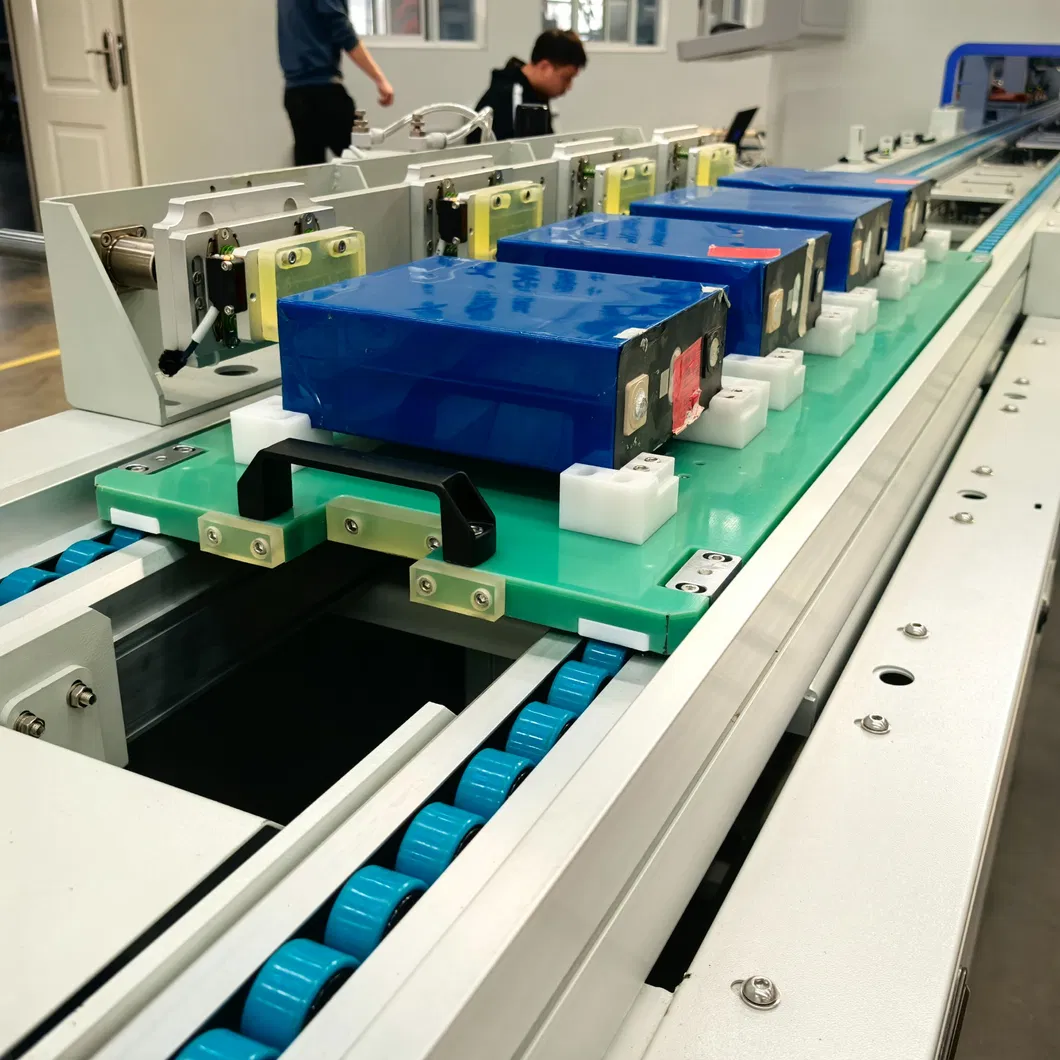

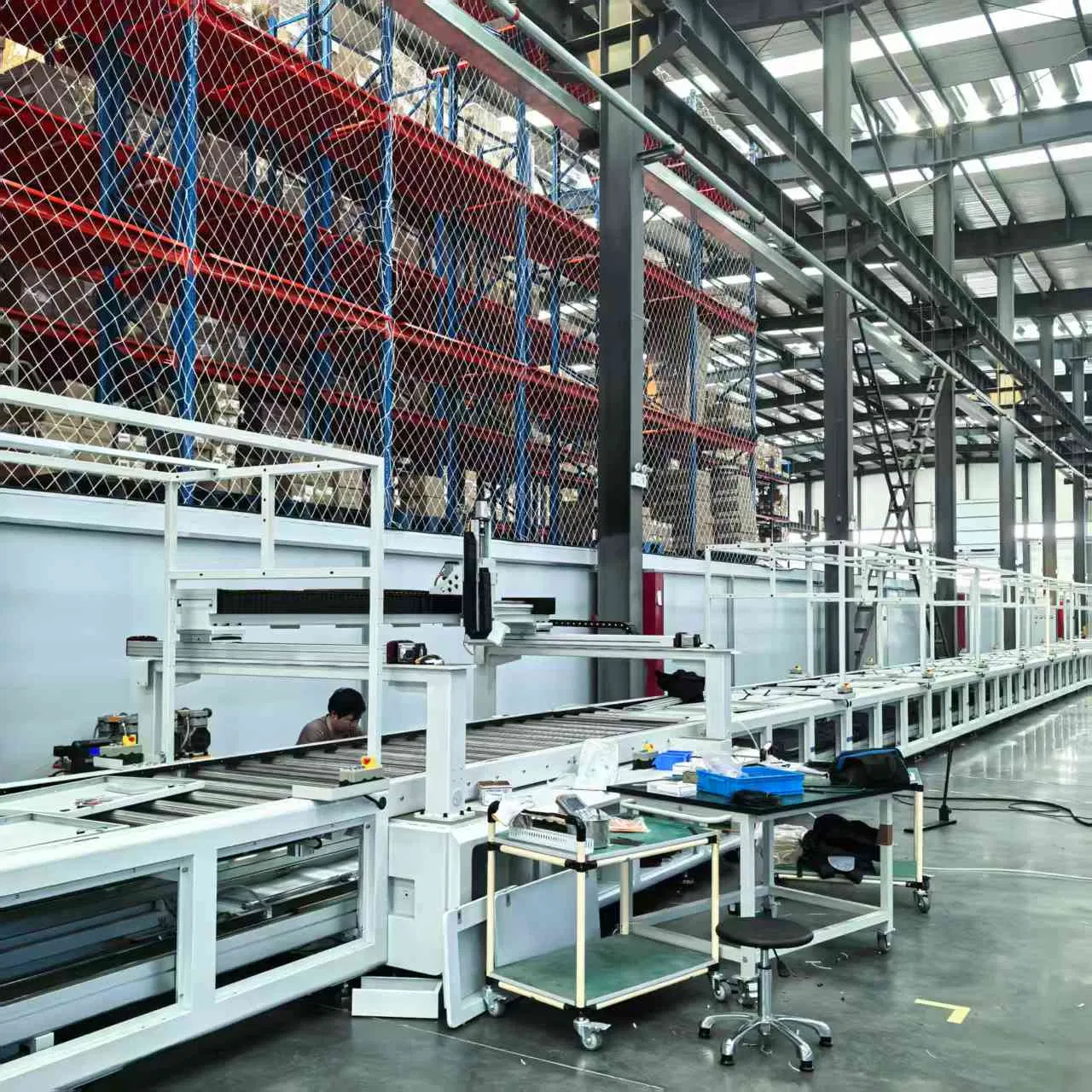

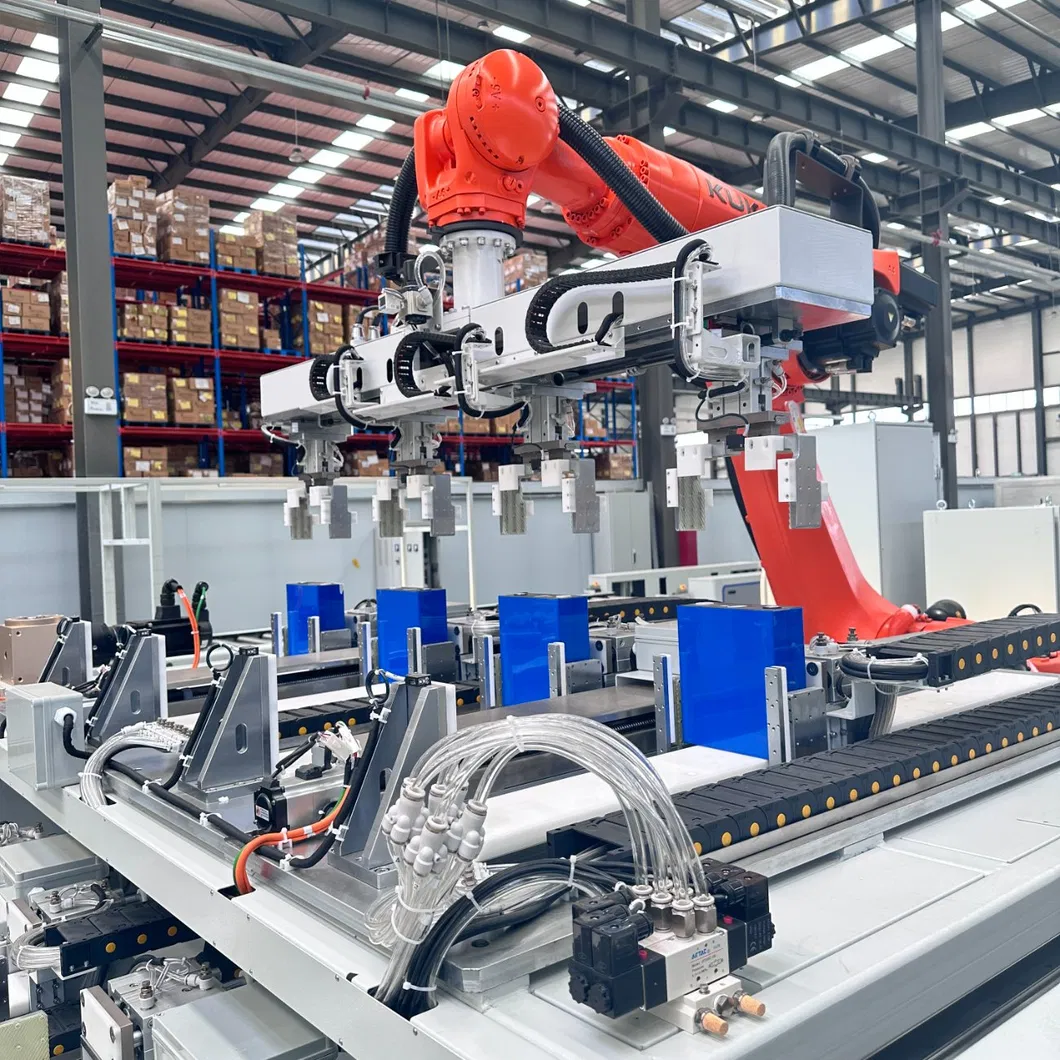

Automated Energy Storage Battery Assembly Line

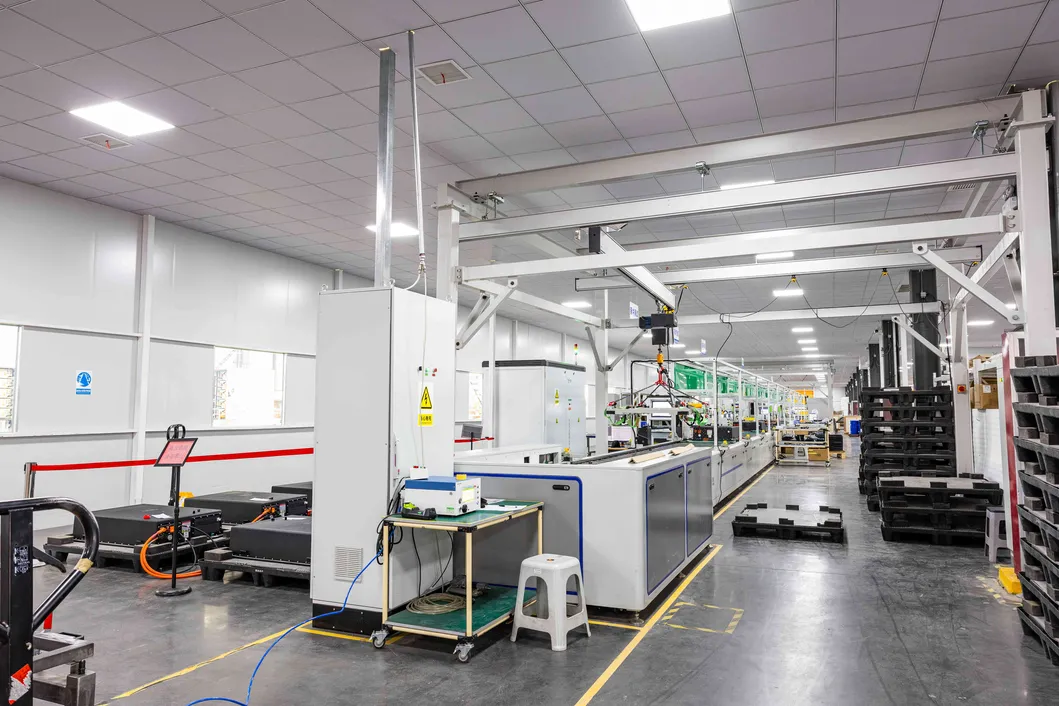

High-precision Laser Welding Advanced laser welding technology is adopted to ensure high-precision welding between the cell tabs and connection pieces. The welding has high strength and low resistance, significantly improving the electrical performance and safety of the modules. The process is contact-free and pollution-free.

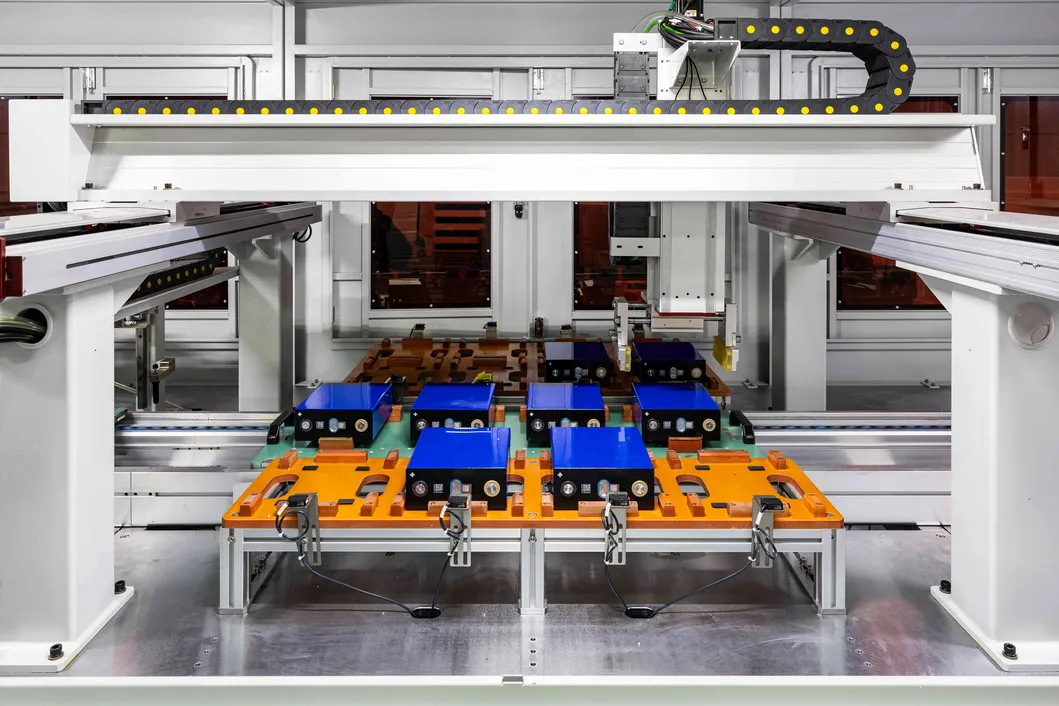

Fully Automated Production The production line is highly automated, covering processes such as cell feeding, sorting, stacking, welding, encapsulation, detection, and unloading, greatly reducing manual intervention and improving production efficiency. It supports 7x24 hours continuous production.

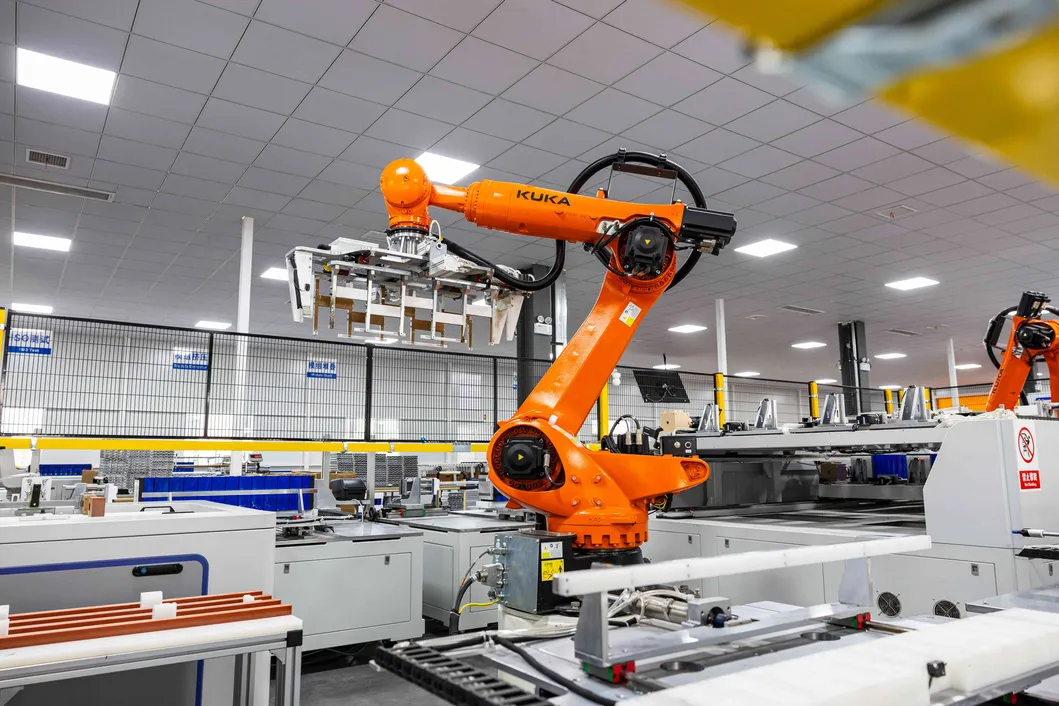

Intelligent Detection and Monitoring Equipped with voltage detectors, internal resistance testers, and insulation withstand voltage testers to ensure every module meets standards. The intelligent monitoring system collects production data in real-time for quality traceability.

3

Main Parameters

Production Cycle	≥ 12 PPM (Adjustable according to requirements)
Welding Precision	±0.1mm
Detection Items	Voltage, Internal Resistance, Insulation, Withstand Voltage, etc.
Applicable Cell Types	Prismatic Cells (LFP, NCM, etc.)
Line Compatibility	Supports various module sizes and structural designs
Degree of Automation	≥ 95%

4

Process Flow & Applications

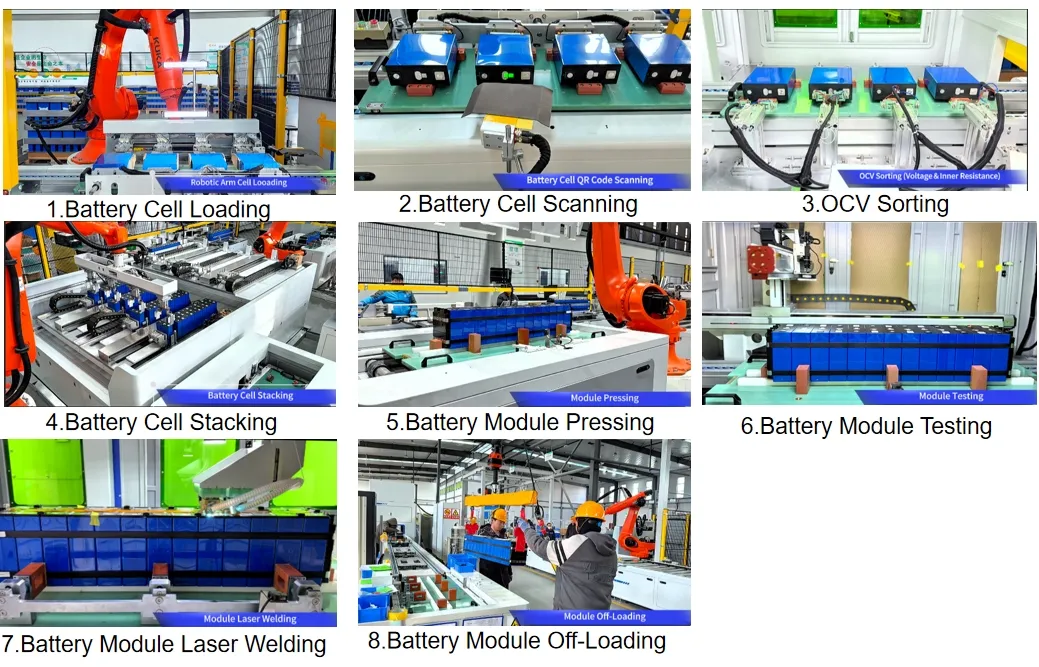

Product Process Flow

Application Fields

5

Quality Assurance

The system provider is an industry-leading manufacturer of new energy intelligent equipment, dedicated to providing innovative turnkey solutions for Battery Module PACK Production Lines and CCS Intelligent Manufacturing. With ISO9001, ISO14001, and ISO45001 certifications, we ensure standardized production models and high-quality product management.

?

Frequently Asked Questions

What is the production cycle of this line?

The PACK line adopts a highly automated design. The production cycle can reach ≤ 2 minutes per module, and it supports 7x24-hour continuous operation for large-scale production.

Does the line support different battery specifications?

Yes, our PACK line adopts a modular design and can be flexibly adjusted. It supports various prismatic battery module specifications and models with strong adaptability.

How is welding precision and consistency ensured?

We use high-precision laser welding technology with a precision of up to ±0.1mm. An intelligent detection system monitors welding quality in real-time for every module.

What is the level of automation?

The production line has an automation degree of over 95%, covering feeding, sorting, stacking, welding, encapsulation, and testing, significantly reducing manual labor.

How is module quality verified?

The line is integrated with multiple testing devices, including voltage detectors, internal resistance testers, and insulation testers, to ensure safety and electrical performance.
