Basic Information
Laser Visibility
Invisible
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Type
CO2 Laser Marking Machine
Marking Method
CO2 Marking Machine
Package Size
1000.00cm * 800.00cm * 1250.00cm
Product Description

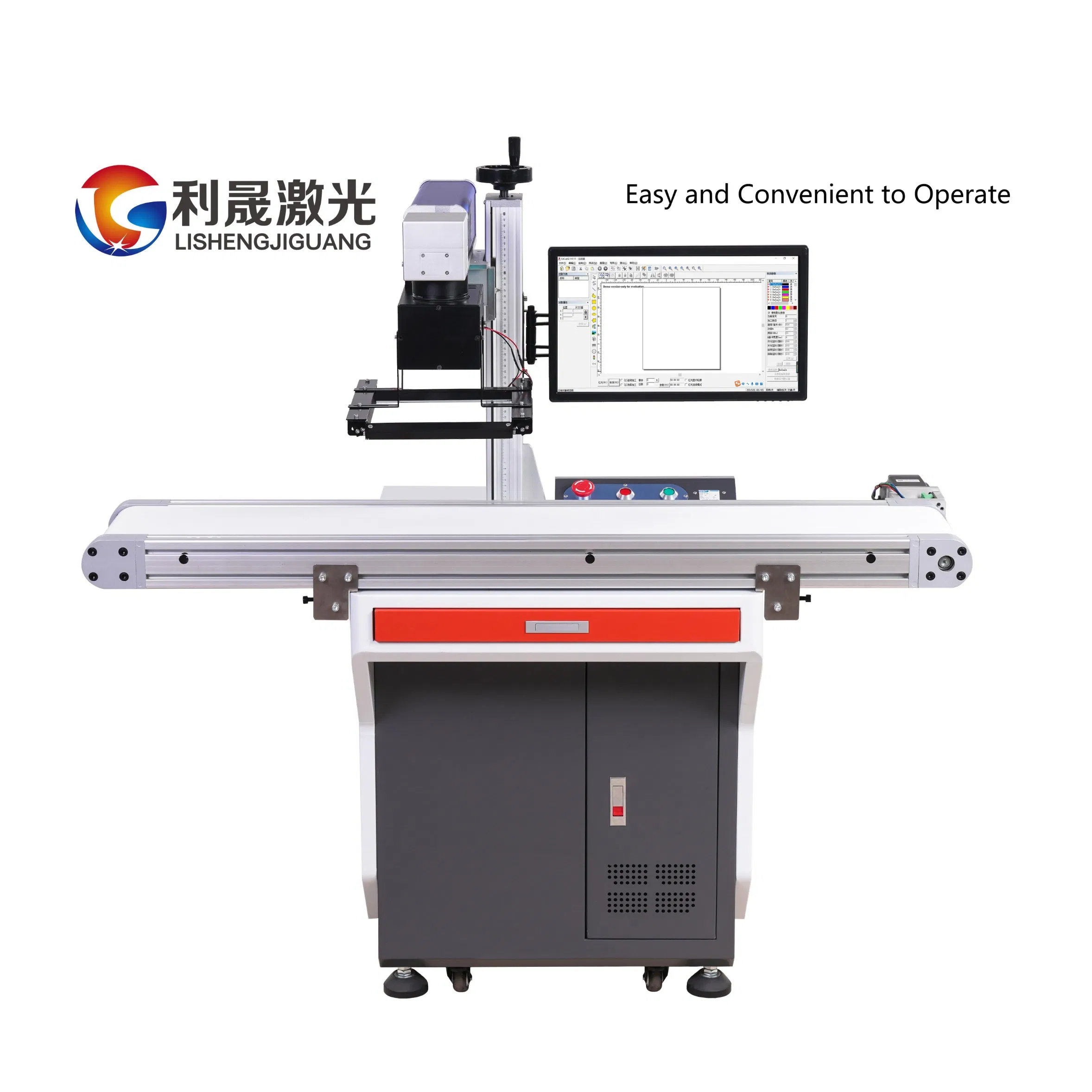

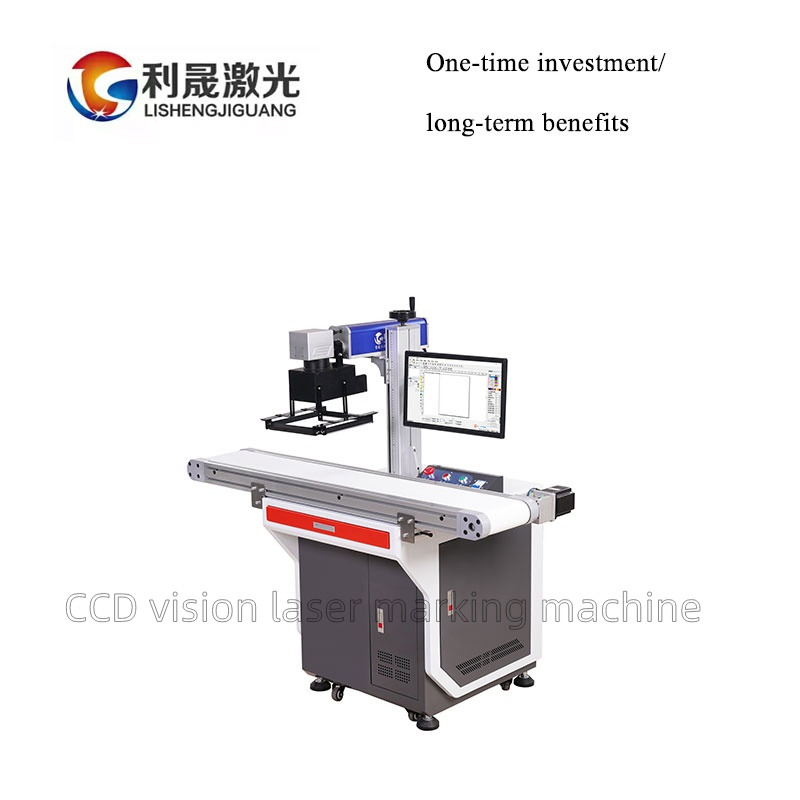

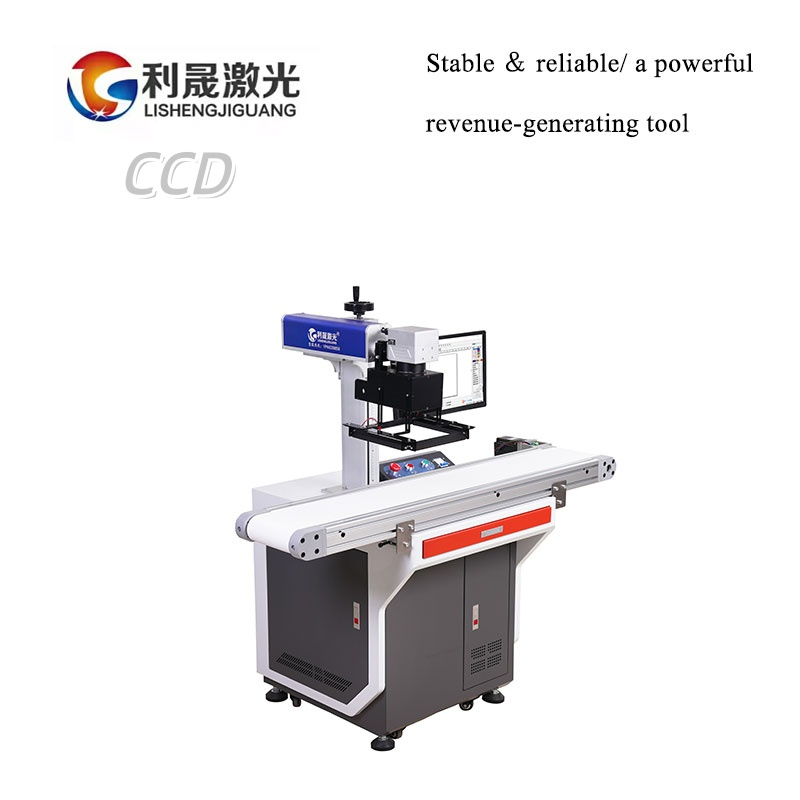

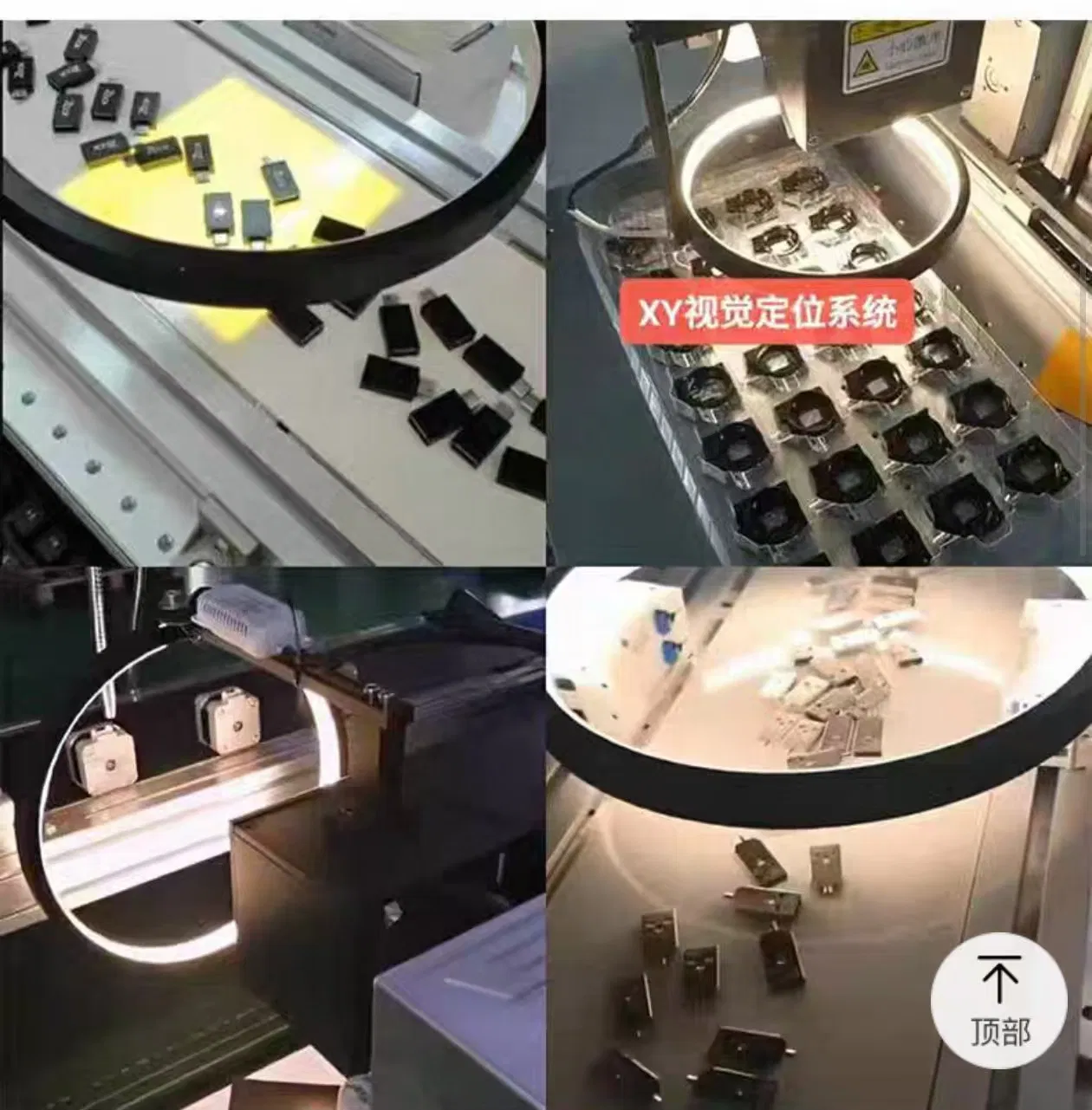

The core function of the vision positioning laser marking machine is to calibrate product features through visual imaging and perform laser marking, enabling fast positioning. The CCD vision laser marking machine adopts the principle of visual positioning: first, create a template for the product, determine the reference points, and save it as a standard template. During normal processing, the computer compares the real-time image with the calibrated template to accurately identify the marking position. This technology effectively reduces phenomena such as missing marking, marking deviation, and inconsistent marking positions.
Product Features
Allows random feeding and achieves precise positioning.
Reduces manual participation and improves marking efficiency.
Eliminates problems of difficult fixture design and manufacturing.
High precision, fast speed, and stable performance with high-speed galvanometer.
Vision system automatically calculates operating conditions, avoiding human error.

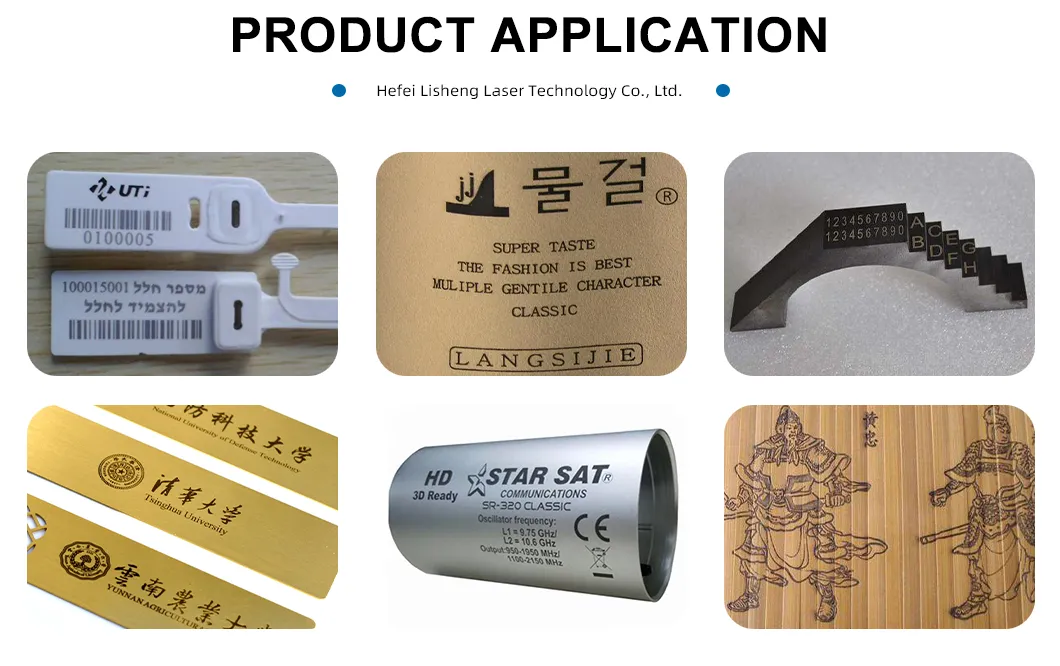

Industry Applications
Suitable for industries with large production volume, difficult positioning, and high precision requirements:
- Jewelry & Medical Devices
- Flexible PCB board marking and dicing
- Silicon wafer micro-hole processing
- Mobile phone buttons & IC cards
- Hardware, electrical enclosures, and daily necessities
Technical Parameters
| Equipment Model |
LS-VFB-20/30/50 |
LS-VUV-3/5/10 |
LS-VCO2-30/60/100 |
| Applicable Wavelength |
1064nm |
355nm |
10.6μm |
| Cooling Method |
Air Cooling |
Water Cooling |
Air / Water Cooling |
| Visual Accuracy |
0.05~0.15mm |
0.05~0.15mm |
0.05~0.15mm |
| Positioning Speed |
100ms |
100ms |
100ms |
| Power Consumption |
≤1.5KW |
≤1.5KW |
≤1.5KW |
| Vision Parameters |
Target tracking, Multi-target parallel tracking, Galvanometer distortion calibration, Supports 5MP camera |
Frequently Asked Questions
1. What is the main benefit of CCD Visual Positioning?
It allows for random feeding of products. The system identifies the workpiece automatically, eliminating the need for precise manual placement or complex fixtures.
2. How accurate is the visual positioning system?
The visual positioning accuracy ranges between 0.05mm and 0.15mm, ensuring high precision for delicate components like IC cards and jewelry.
3. What types of materials can this CO2 laser mark?

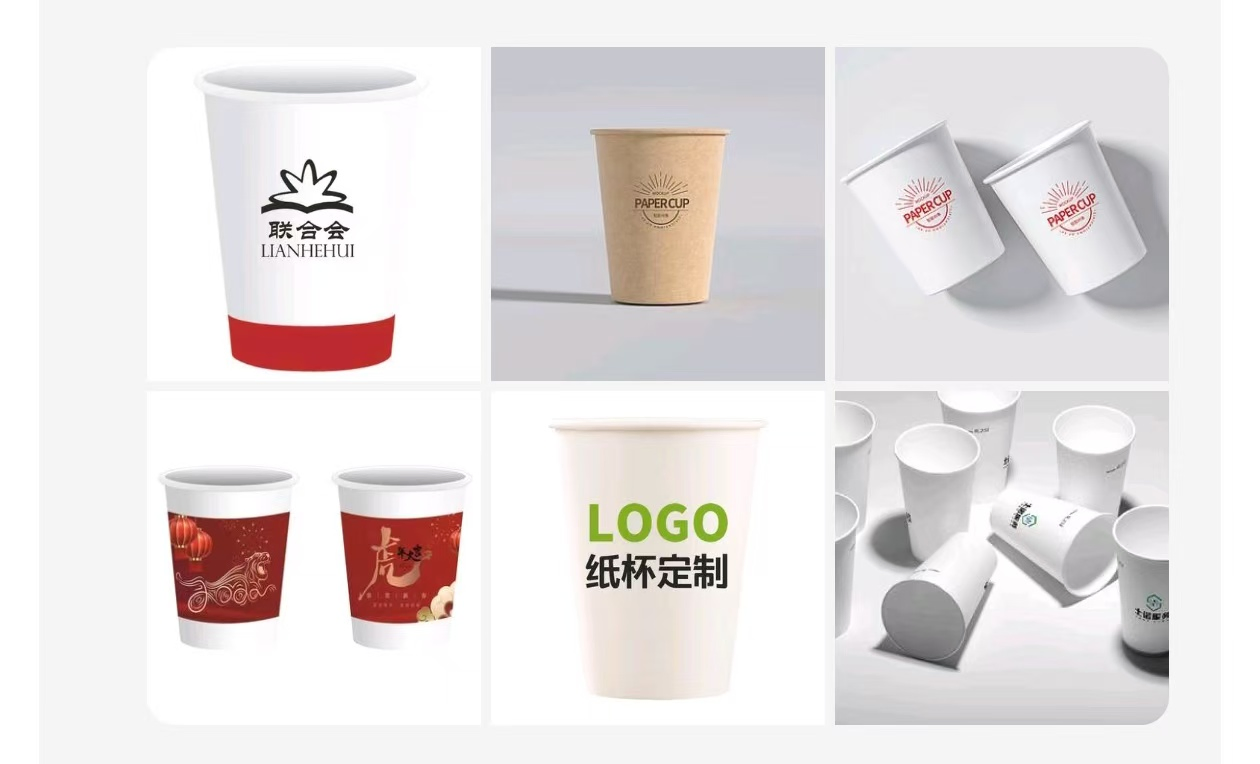

This machine is primarily designed for nonmetal materials, including plastics, ceramics, wood, paper cups, and various daily necessities.
4. What is the typical lead time for delivery?
Standard machines typically take 7-14 days. Customized solutions or non-standard requirements may take between 15 to 30 days.
5. Does the system support automatic assembly lines?
Yes, it supports multiple working modes including photoelectric induction for conveyor belts and step-type movement for continuous automatic marking.
6. Can the vision system handle multiple targets at once?
Yes, the system supports multi-target parallel tracking, allowing it to identify and mark multiple pieces in the vision range simultaneously.
