Basic Information
Technical Class
Continuous Wave Laser
Applicable Material
Nonmetal
Laser Classification
Gaseous Laser
Engraving Method
Vector Engraving
Working Size
600X900mm or Customized
Power
60W/80W/90W/100W/130W
Drive Type
Leadshine Stepper Driver
Certification
SGS, CE, ISO 9001
Structure
Steel Structure of Lathe Bed
Production Capacity
50 sets/Month
Technical Specifications
| Model | CK1290 laser engraving machine |
| Working area | 120cm*90cm / 47in*35in (L*W) |
| Laser power | 40W/60W/90w/100w |
| Laser type | CO2 sealed laser tube, water-cooled |
| Engraving speed | 25-24000mm/min |
| Cutting speed | 50-5000mm/min |
| Power supply | 220V±10%/50HZ , 110V±10%/60HZ |
| Min. Shaping character | Letter 1.0 x 1.0mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI, CDR |
| Software supported | CorelDraw, PhotoShop, AutoCAD |
| Laser Output Control | 1-100% software setting |
| Highest Scanning Precision | 2500DPI |
| Equipment Dimension | 1650mm*1250mm*970mm (L*W*H) |
| Net Weight | 350kg |
| Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
Product Overview

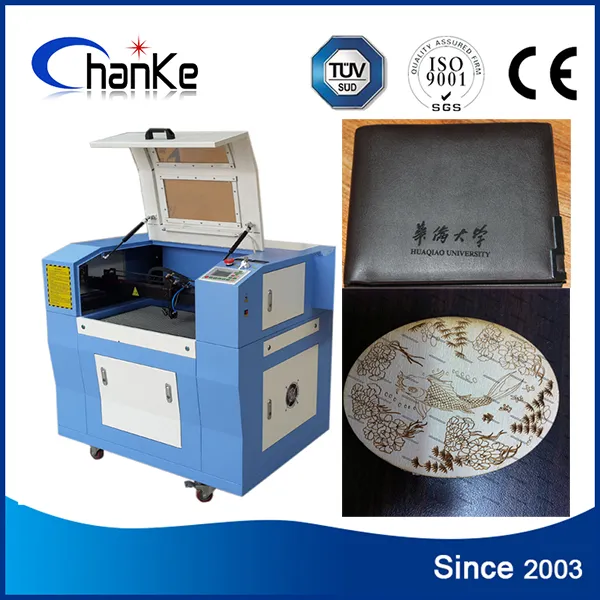

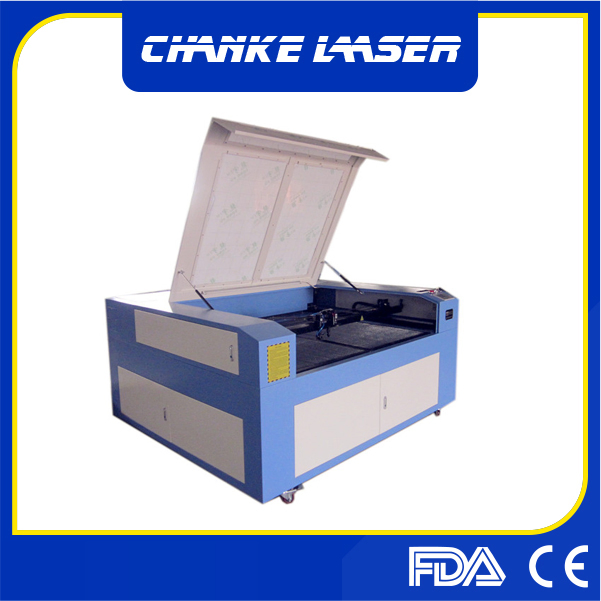

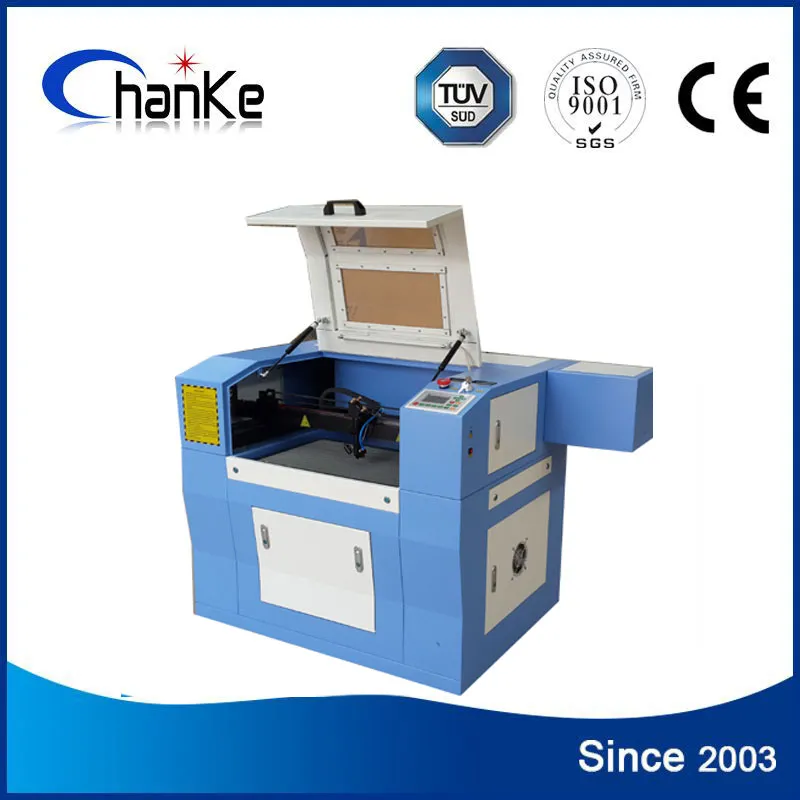

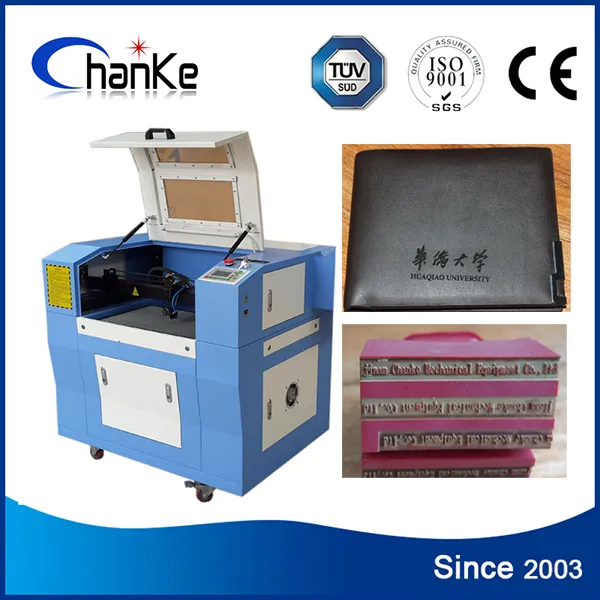

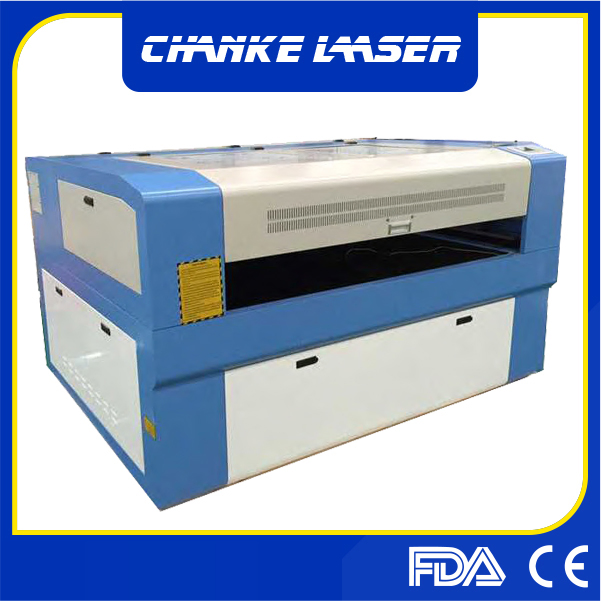

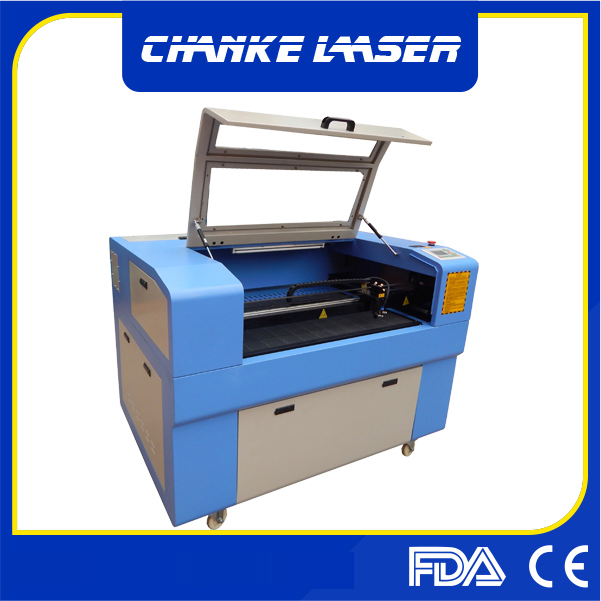

Our CO2 Laser Engraving System for Granite Stone excels in cutting and engraving acrylic materials, achieving a maximum thickness of 20mm. Available in versatile working sizes such as 1300x900mm, 1300x2500mm, 600x900mm, 1400x1000mm, and 1600x1000mm, this system is adaptable to your specific needs.
Equipped with laser tubes ranging from 60W to 150W by renowned brands like Beijing RECI and Chengdu Weegiant, it features both honey nest and blade table configurations.
🔹 The honey nest table is ideal for soft materials including leather, cloth, paper, and fiber, offering precision and care for delicate fabrics.

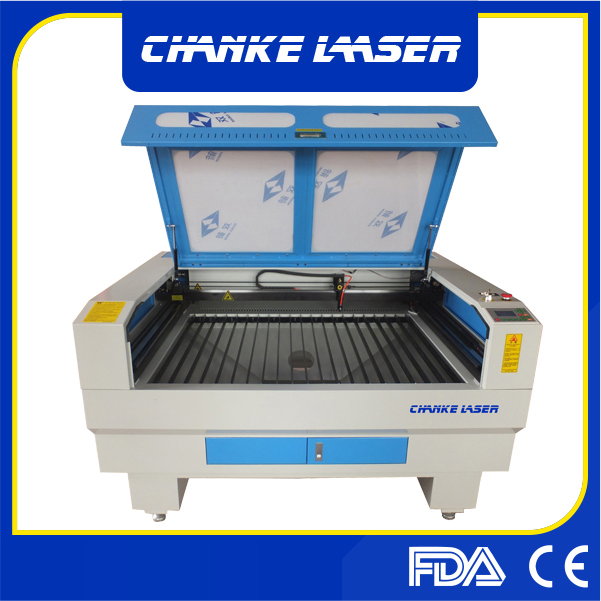

🔹 The blade table is designed to withstand heavy materials up to 200kg, making it perfect for robust cutting and engraving tasks on hard materials like wood and acrylic.

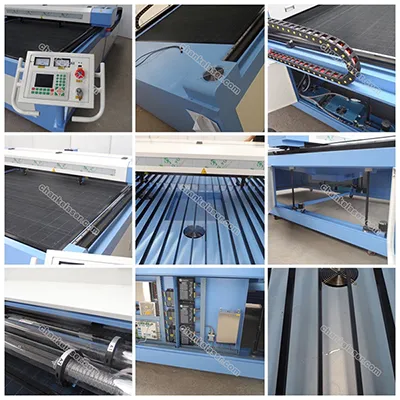

Core Features
📍
Precision Guidance
Imported linear guide rails ensure high precision and an extended service life for consistent performance.
⚡
High Performance Motor
Equipped with stepper motors for smooth motion. SEVEO motors are available for projects requiring ultra-high precision.
🔴
Red Light Positioning
Accurately indicates the laser head's processing location, eliminating manual positioning errors and saving time.
💎
Advanced Laser Tube
Features high-quality laser tubes (like Beijing RECI) with a beam lifespan exceeding 10,000 hours.
🏗️
Heavy-Duty Structure
A high-strength steel-frame structure increases fuselage strength by 40%, preventing distortion during long-term use.
🛡️
Stability Design
Includes an anti-pollution design that significantly enhances the machine's overall stability and operational safety.
Frequently Asked Questions
1. What materials can this CO2 laser system cut and engrave?
The system is highly versatile and works effortlessly on acrylic, double-color boards, glass, crystal, marble, boulders, ceramics, wood, bamboo, cloth, leather, paper, plastic, and rubber.
2. What is the maximum thickness the machine can cut?
The CO2 Laser system is particularly optimized for acrylic, achieving a maximum cutting thickness of up to 20mm depending on the laser power selected.
3. How do I choose between a honey nest table and a blade table?
The honey nest table is best for soft or delicate materials like fabrics and paper. The blade table is designed for heavy and hard materials (up to 200kg) like wood and acrylic.
4. What is the expected lifespan of the laser tube?
When equipped with high-power Beijing RECI laser tubes, the machine offers a strong beam and an extended service life exceeding 10,000 hours.
5. Does the machine support standard design software?
Yes, the system is compatible with popular design software including CorelDraw, PhotoShop, and AutoCAD, and supports formats such as BMP, PLT, DXF, AI, and CDR.
6. How does the red light positioning device help?
The red light positioning device accurately points to the laser head's processing location. This allows users to see exactly where the work will begin, ensuring accuracy and reducing material waste.
