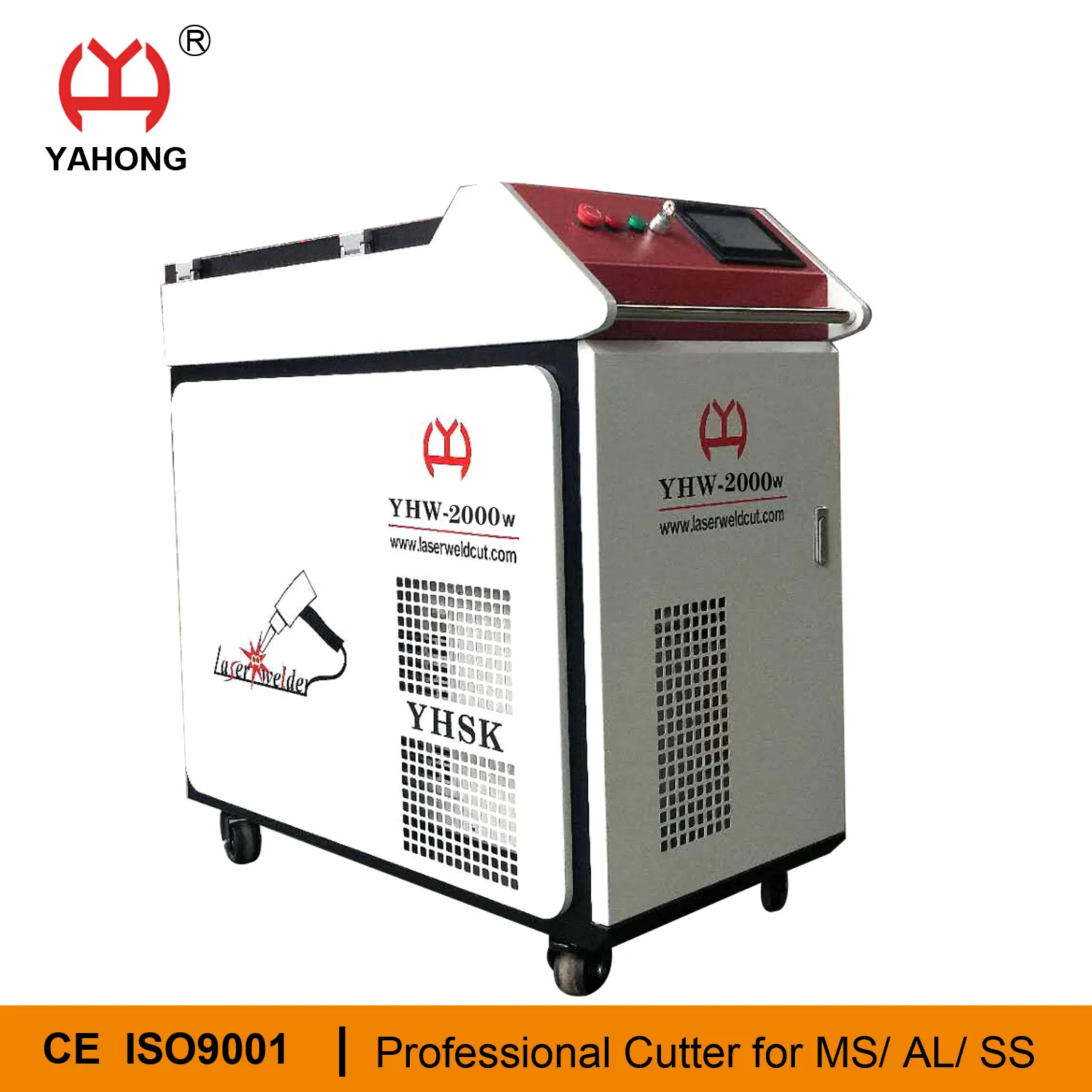

Handheld Fiber Laser Welding Equipment with Wire Feeder and Wobble Laser Head

1 / 5

Handheld Fiber Laser Welding Equipment with Wire Feeder and Wobble Laser Head

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

ApplicationElectronic, Automotive, Manufacturing

Laser TypeContinuous Wave Optical Fiber Laser

Control ModeAutomatic

Power DensityDeep Fusion Welding

Equipment TypeFiber Transmission Laser Welding Machine

Welding MaterialStainless Steel, Carbon Steel, Aluminum

Protective GasNitrogen

FunctionWelding and Cutting

Welding Speed2-10 Times Faster Than Traditional Methods

Wire FeederAvailable (0.8-1.6mm)

Specification1000W / 1500W / 2000W

OriginChina

Product Overview

Handheld Fiber Laser Welding Equipment with Wire Feeder and Wobble Laser Head

Key Advantages

Beautiful, uniform welding seams with no scars or discoloration; eliminates post-process polishing.
Superior strength reaching or exceeding the base metal itself.
High efficiency: 2-10 times faster than traditional argon arc welding.
User-friendly: Master the operation in just 5 minutes without prior welding experience.
Cost-effective: Power consumption is only 1/10th of traditional gas shielded welding.
Eco-friendly: Reduced gas and dust emissions.

Core Features

Three-in-one modes: Self-fusion welding, wire feeding, and cutting.
Versatile capabilities: Tailor welding, fillet welding, stitch welding, straight and arc patterns.
Ergonomic design: Lightweight welding head (0.8KG) for comfortable long-term use.
Smart Control: Digital parameter setting for wire feeder via control screen.
6 light emission modes and adjustable light spot (0-5mm).

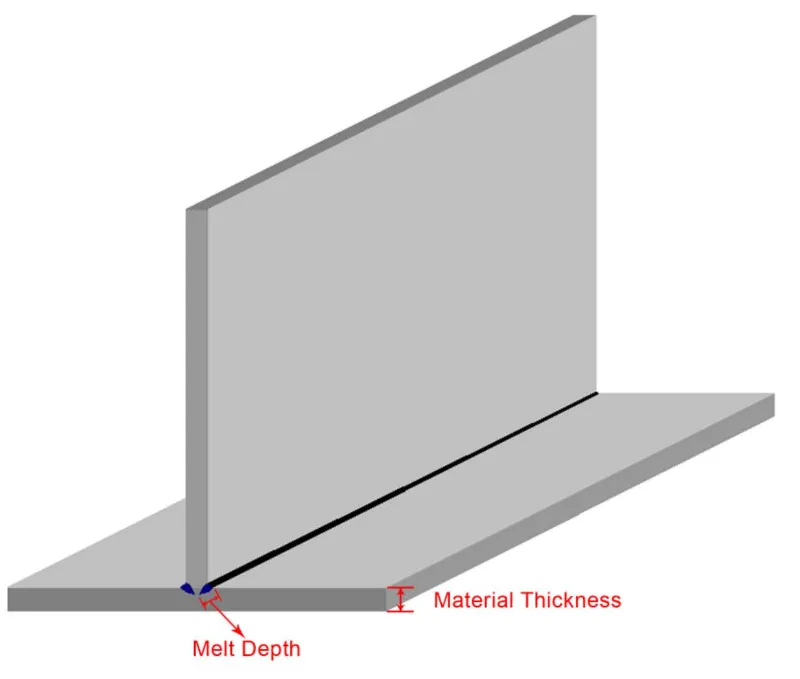

Weld Melt Depth Reference

Model	Carbon Steel	Stainless Steel	Aluminum	Red Copper
1000W	2.06mm	2.68mm	2mm	-
1500W	2.77mm	3.59mm	3mm	0.2mm
2000W	3.59mm	4.57mm	4mm	0.3mm

Note: Actual welding thickness depends on penetration requirements. Thickness can be increased with double-sided welding or wire feeding.

Welding Types & Samples

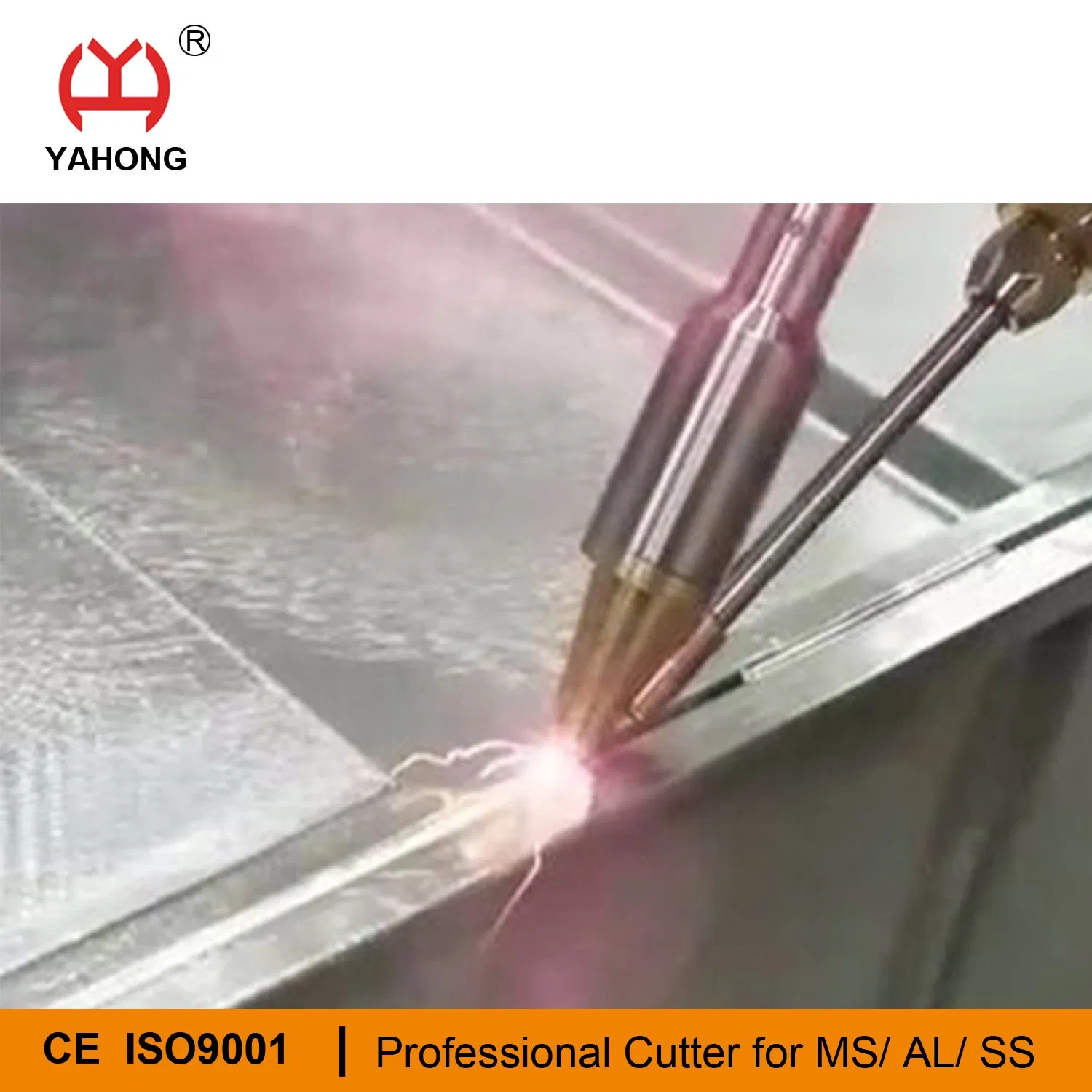

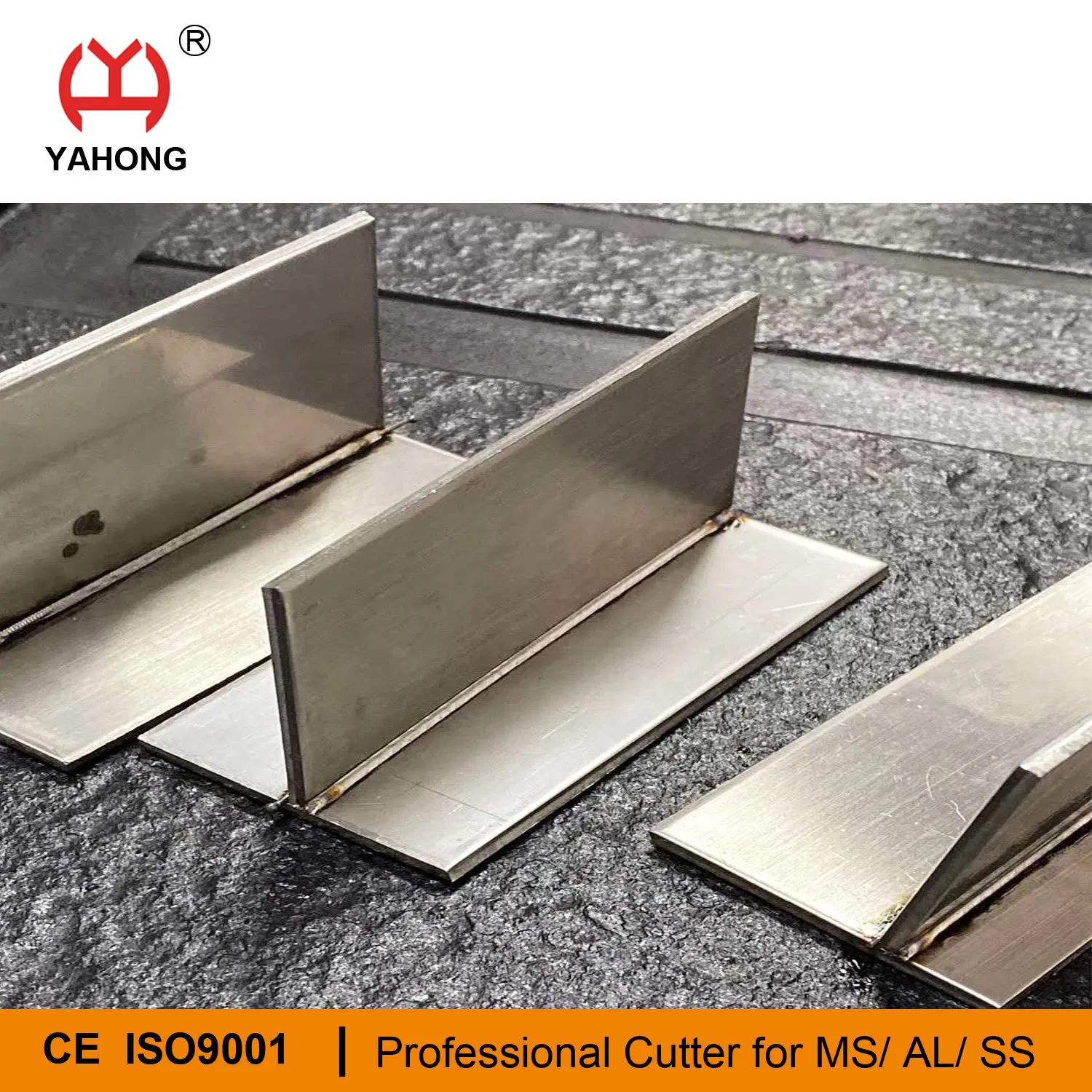

Fillet & Vertical Welding

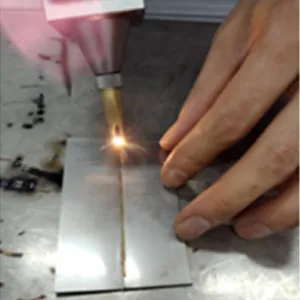

Tailor & Flat Welding

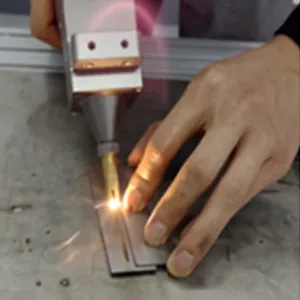

Overlap Welding

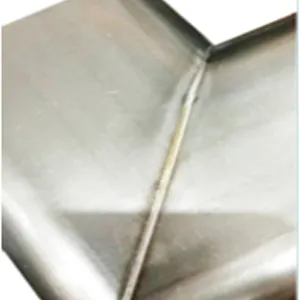

Welds Free of Scars

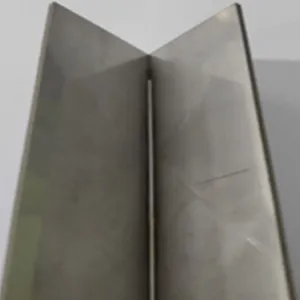

Beautiful Seams

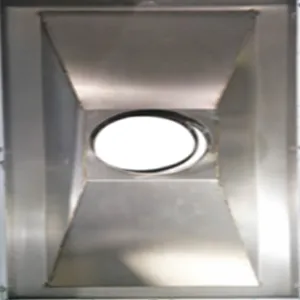

Zero Workpiece Deformation

Service & Quality

Over 10 years of professional production experience.
Comprehensive technical support for troubleshooting.
Sufficient inventory of spare parts and consumables for rapid delivery.
OEM/ODM services available to meet specific industrial needs.

Frequently Asked Questions

Q1: How difficult is it to operate the handheld laser welder? A: It is very easy to learn. Most users can master basic welding skills within 5 to 10 minutes. No professional welder certification or foundation is required.

Q2: What materials can this machine weld? A: It is perfect for stainless steel, carbon steel, aluminum plates, galvanized sheets, and can even handle some copper welding with higher power models.

Q3: Does the laser welding machine require many consumables? A: No. Compared to traditional welding, it uses fewer consumables. The main requirements are protective gas (Nitrogen or Argon) and copper nozzles, which have a long service life.

Q4: Can this machine be used for cutting as well as welding? A: Yes, the system supports a cutting mode, allowing for basic cutting of thin metal plates by switching the nozzle and adjusting parameters.

Q5: What is the benefit of the wobble laser head? A: The wobble head allows for an adjustable spot size (0-5mm), which helps in compensating for larger gaps in the workpiece and results in a wider, stronger weld seam.

Q6: Is it portable enough for different workshop locations? A: Yes, the handheld design and fiber transmission allow for flexibility. The ergonomic welding head weighs only 0.8kg, making it easy to move around large workpieces.
