High-Performance Laser Drilling System for Rapid Material Processing

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

📋

Overview & Specifications

Model NO.

AT-61166

Trademark

ANTTRANS

Origin

China

Package Size

150.00cm * 90.00cm * 150.00cm

Gross Weight

2000.000kg

🚀

Product Description

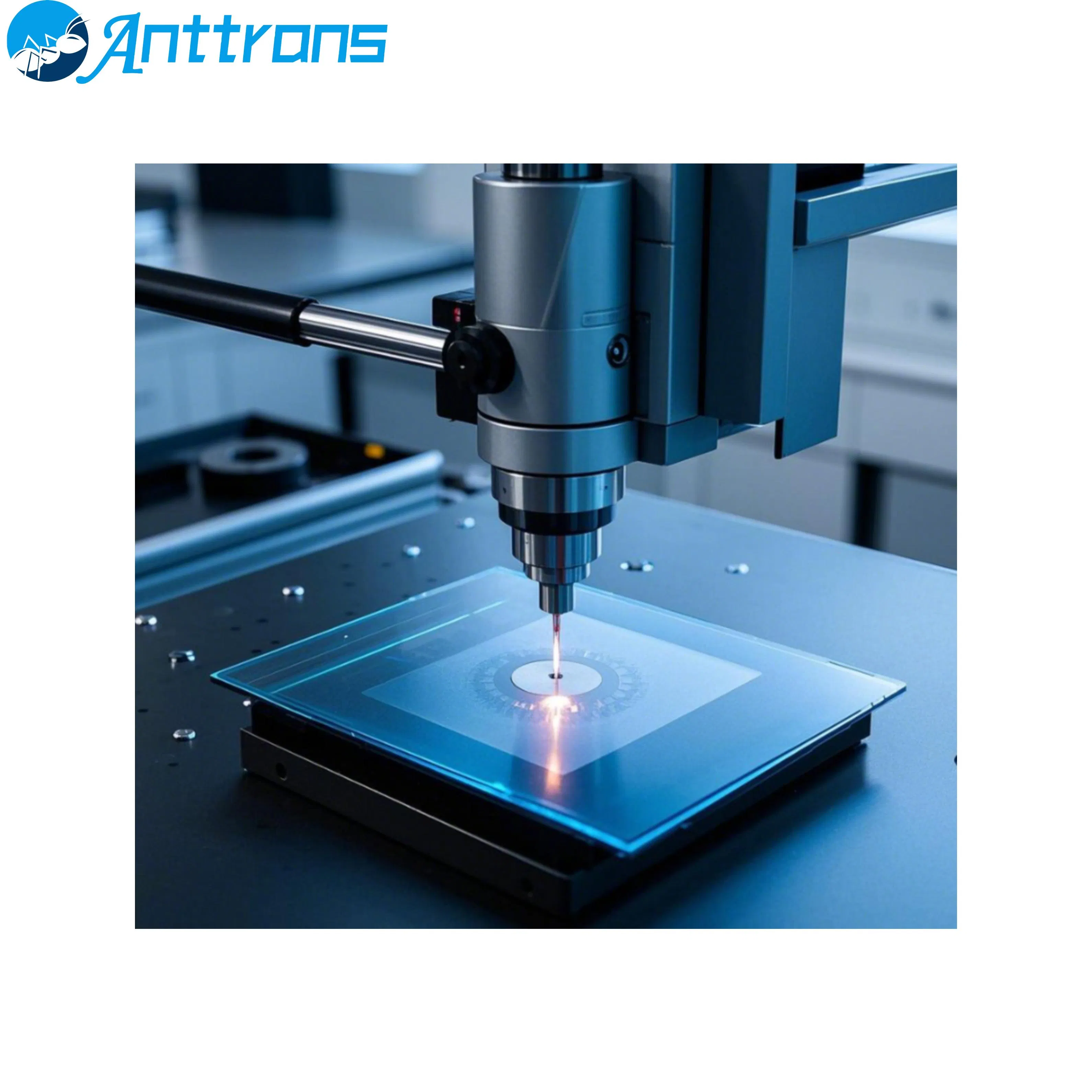

The Laser High-Speed Drilling System is a galvanometer-based precision laser processing equipment that combines high-power fiber laser technology with high-speed precision galvanometer control. It enables ultra-fine, high-speed micro-hole processing on thin sheet materials, with a minimum hole diameter of 0.02mm and positioning accuracy up to 2μm. It is widely suitable for precision drilling needs in industries such as electronics, automotive, aerospace, and medical devices, offering a cost-effective solution for micron-level micro-hole processing.

💎

Key Features

Single-mode fiber laser with excellent reflection isolation and diffraction-limited beam quality.
High-precision servo cutting head with auto-focus and fast response.
Superior beam quality and spot control via precision optical path.
Linear gantry dual-drive platform with acceleration exceeding 1G.
High-precision 5-axis control system with path optimization.
Ultra-high-speed drilling mode exceeding 50 holes per second.
Off-axis visual positioning system for secondary part processing.
High-flatness marble platform with a fully enclosed stable structure.
Maintenance-free operation through superior cable management and dust removal.
Minimum kerf down to 0.05mm with smooth cuts and no slag; supports rotary axis for tube processing.

🏢

Scope of Expertise

Focusing on technical services, technology development, and exchange, the operation spans across computer software and hardware wholesale, import and export of advanced technologies, and specialized credit information consulting. Expertise includes graphic design, sales of functional glass, new optical materials, optical instruments, and specialized semiconductor device equipment. The portfolio further extends to experimental analysis instruments, CNC machine tools, electronic components, electromechanical equipment, metal cutting and welding solutions, fiber optics, and photovoltaic components.

⚙️

Technical Parameters

Category	Parameter	FM -LPCD1500/3000
Laser	Wavelength	1060~1080nm
Laser	Peak Power	1500W (3000W)
Laser	Modulation Frequency	1~50kHz
Laser	Beam Quality M²	<1.05
XY Stage	Travel	600600mm / 800800mm
XY Stage	Repeatability	≤±0.005mm
XY Stage	Acceleration	≤1G
XY Stage	Speed	≤60m/min
Z Axis	Travel	150mm
Z Axis	Repeatability	≤±10μm
Processing	Min Hole Diameter	0.05mm
Processing	Thickness	≤2mm (5mm)
Processing	Accuracy	≤±0.02mm
Drilling	High-Speed Drilling	>50 holes/s
Environment	Operating Temp	1~30ºC
Physical	Dimensions	150016001900mm
Physical	Weight	1500Kg

📷

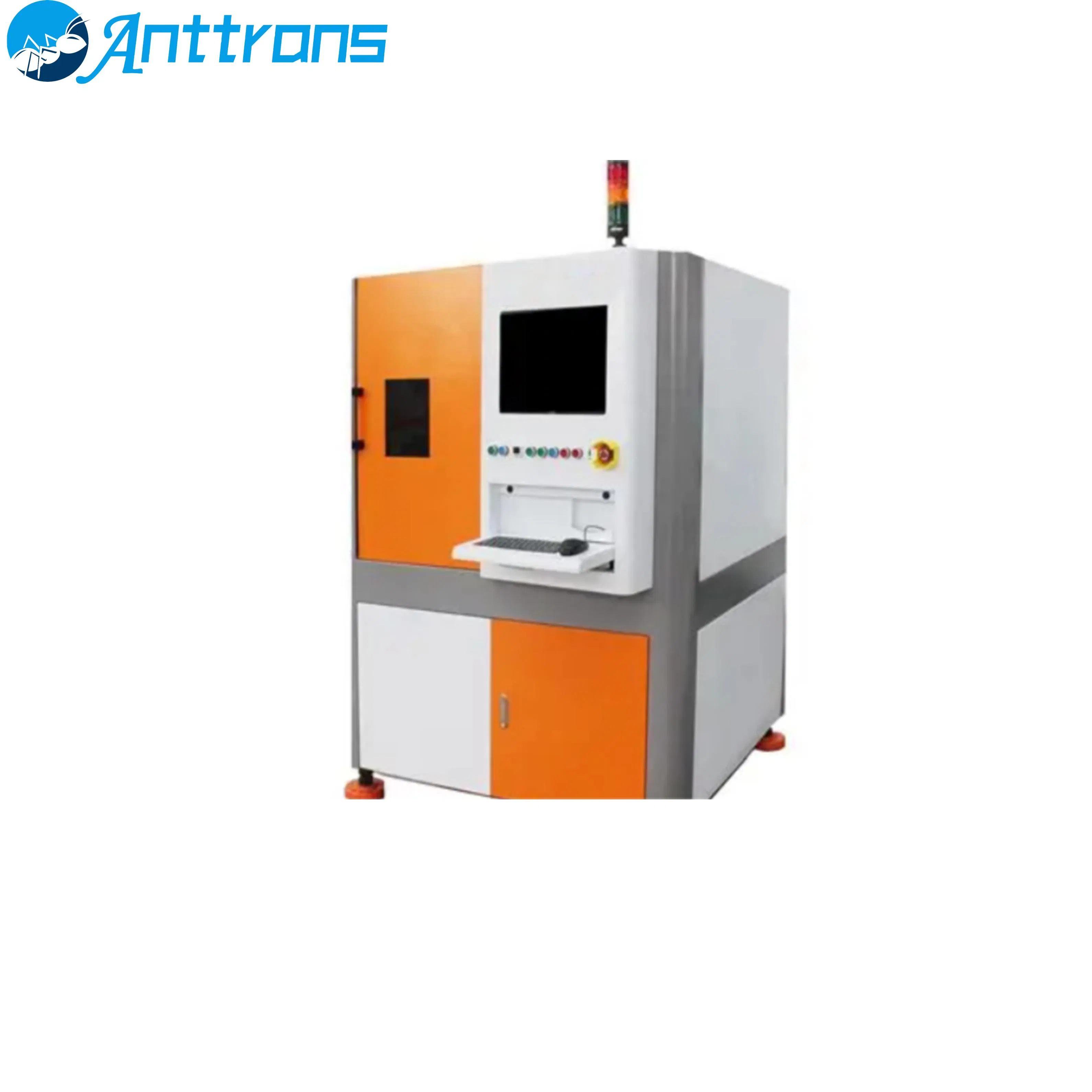

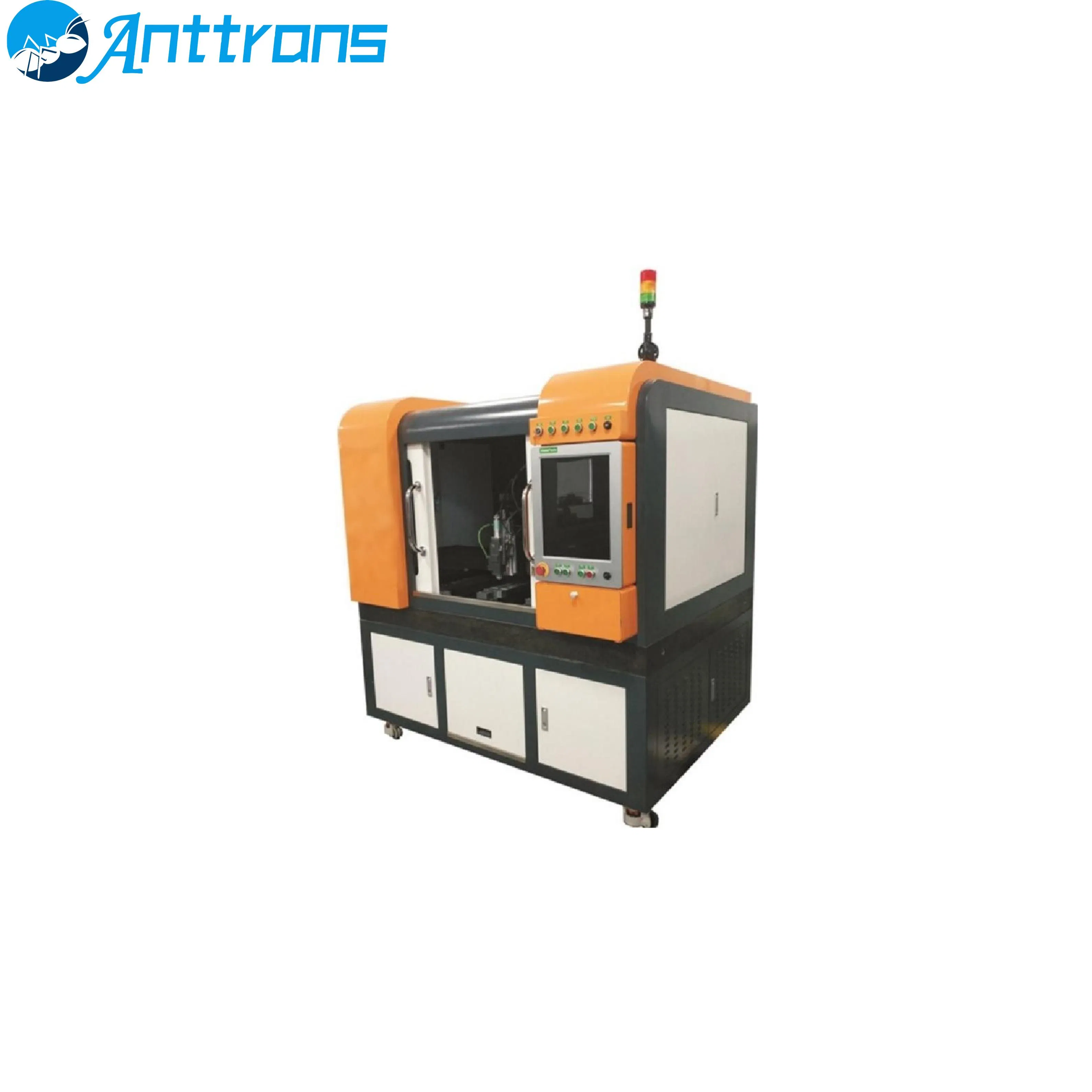

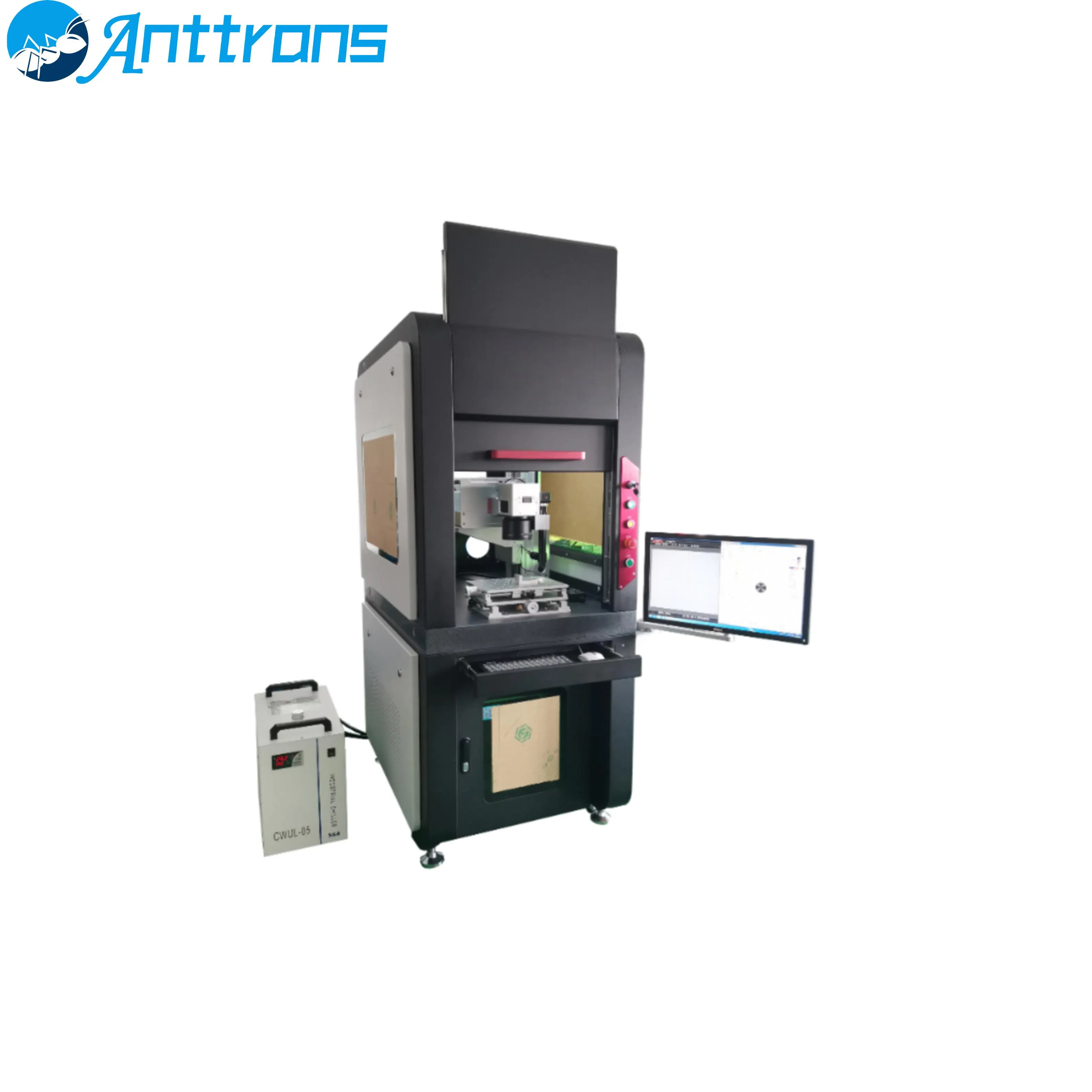

Detailed Photos

❓

Frequently Asked Questions

What is the minimum hole diameter this system can achieve?

The system can process ultra-fine micro-holes with a minimum diameter as small as 0.02mm, depending on material thickness.

How fast can the system drill holes?

In its high-speed drilling mode, the equipment can exceed speeds of 50 holes per second for hole diameters between 0.02mm and 0.2mm.

Which materials are compatible with this laser system?

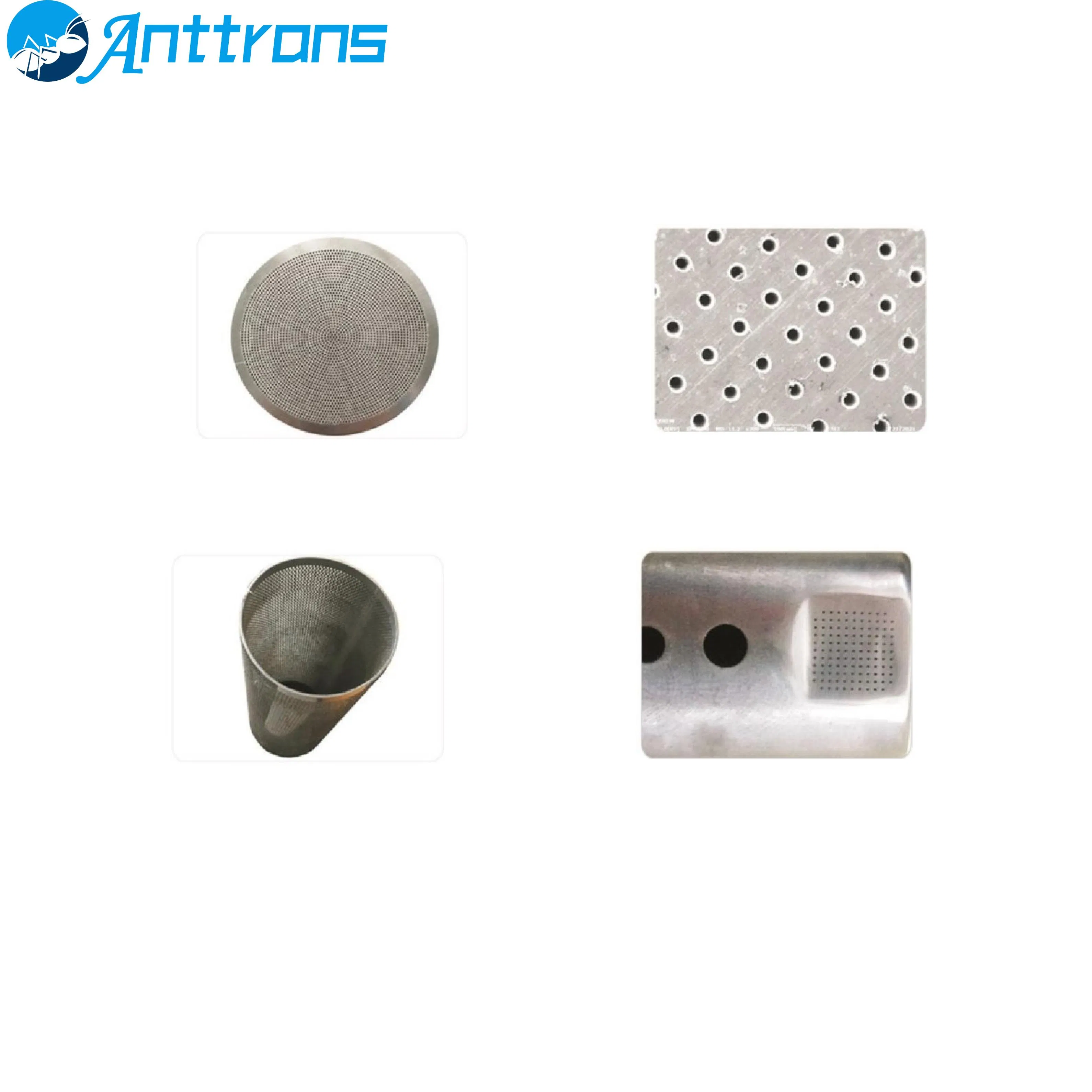

The system is highly effective for processing various metals, alloys, and ceramic materials.

What makes the positioning so accurate?

It utilizes a high-precision off-axis visual positioning system and a linear gantry dual-drive platform, achieving positioning accuracy up to ±0.01mm.

Can this machine handle non-flat parts?

Yes, with the addition of a rotary axis, the system can enable circular tube cutting and drilling in addition to flat sheet processing.

What are the cooling and power requirements?

The system uses efficient air cooling and requires a power supply of 220V 50~60Hz with a total power consumption of ≤5kW.
