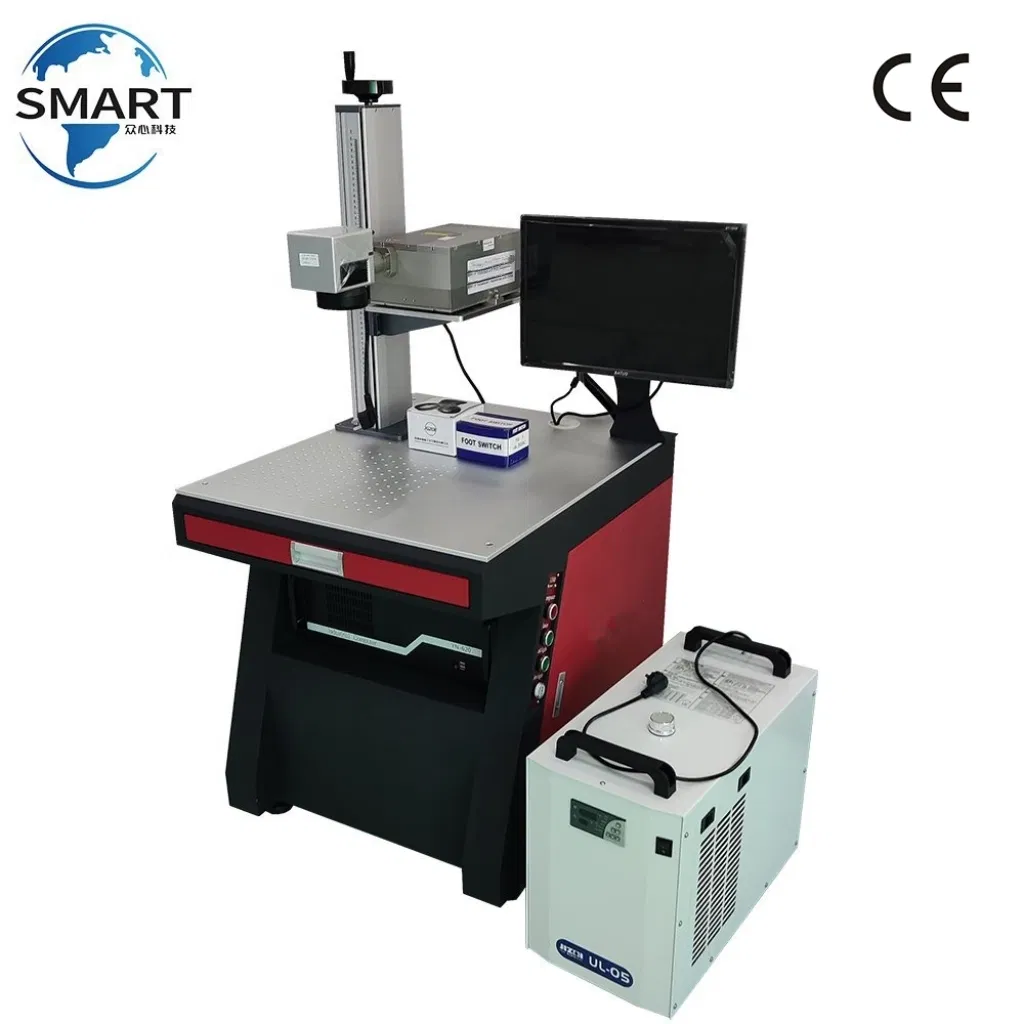

Reliable High-Precision UV Laser Engraving System for Industries

Customization:	Available
After-sales Service:	Online Support or on-Site Service
Warranty:	1 Years

Send Inquiry

Product Description

Basic Info

Model NO.

ZXJN-5WUVC

Laser Visibility

Invisible

Applicable Material

Metal & Non-metal

Cooling System

Water Cooling

Laser Wavelength

355nm (Deep Ultraviolet)

Laser Power

3W /5W/10W

Origin

China

Capacity

5000sets/Year

Product Description

UV Laser Marking System Technical Specs:

Model: ZXJN-5WUVC / ZXJN-5WUVE

Laser Power: 3W/ 5W /10W

Wave Length: 355nm

Repetition Frequency: 10-200KHz

Engraving Area: 175*175mm (Customizable)

Max Machining Speed: ≤7000mm/s

Repeat Accuracy: 0.003mm

Software: Professional Marking Software

Beam Quality: M2 < 1.1

Applications & Samples

Applicable Industries: Consumer electronics, mobile accessories, LCD screen QR code engraving, ceramics, jewelry, FPC flexible circuit boards, biomedical glass, touch screens, etc.

Applicable Materials: Glass, crystal, plastic, silicone, rubber, acrylic, porcelain, leather, wood, bamboo, metals and various non-metallic materials.

Laser Technology Parameters

Type	Wavelength	Core Principle	Main Materials	Features
UV	355nm	Photochemical ablation (breaking molecular bonds)	Metal, Plastic, Glass, Ceramics, PCB	Cold light source, fine marking, no heat damage
Fiber	1064nm	Thermal physical/chemical changes	Metals, Partial Plastics, Leather	High efficiency, air-cooled, long life
CO2	10.6um	Heat energy vaporization	Wood, Paper, Rubber, Glass	Clear permanent marks, low cost

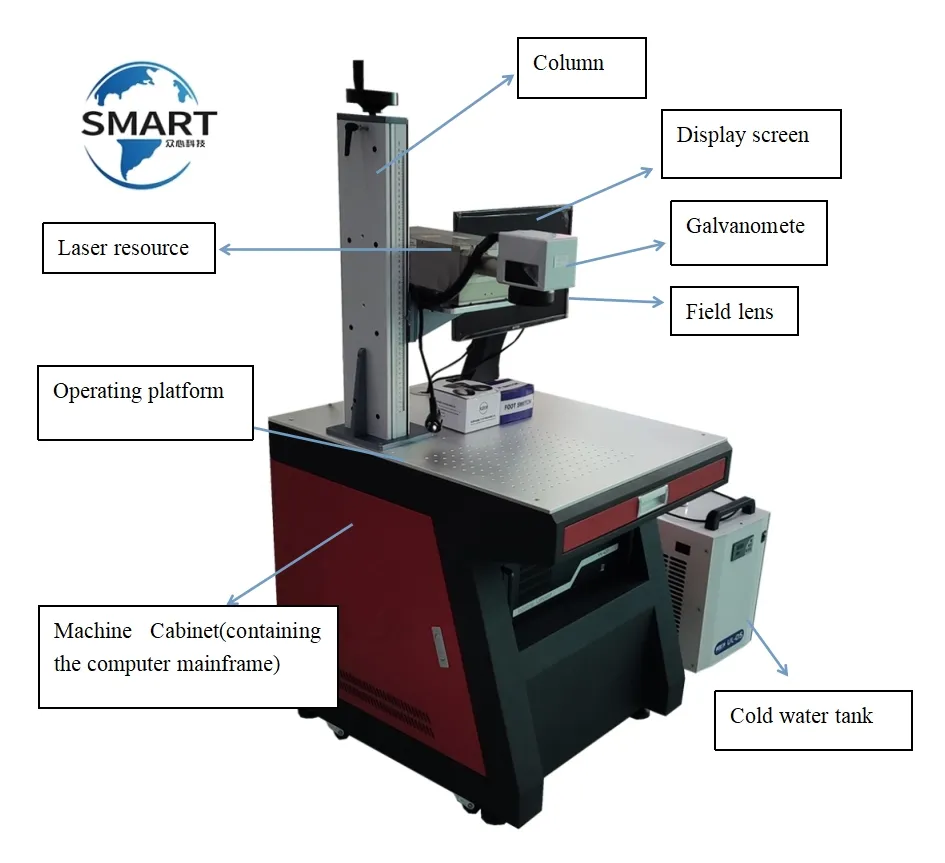

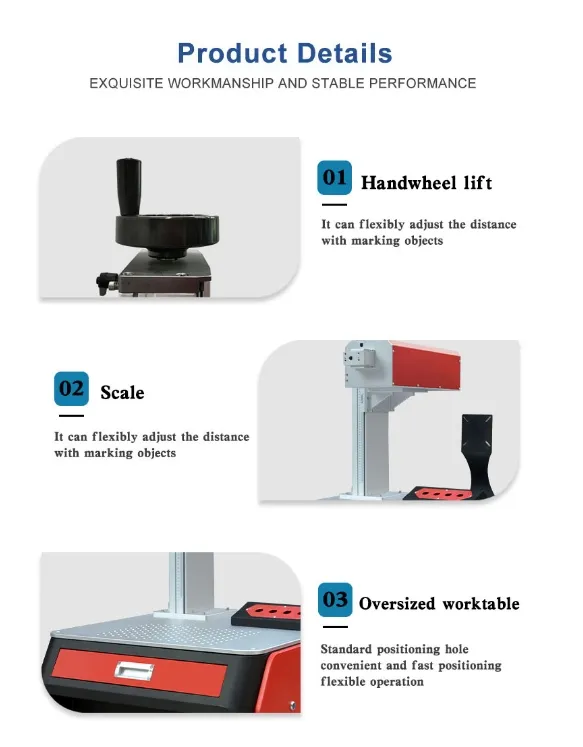

Core Components & Quality

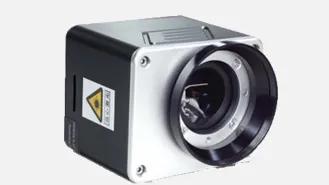

High Performance Galvanometer

Equipped with high-performance micro motor, fast marking speed, stable operation, high precision and longer service life.

Precision Field Lens

High-performance lenses provide excellent light perception, uniform lighting, and resilience to environmental challenges.

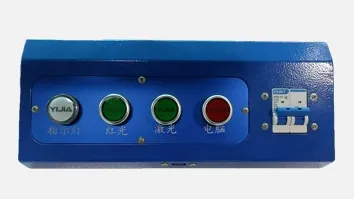

Multilingual Control Panel

Professional and humanized control system with simple interface. Safe anti-leakage settings and USB integration.

Application & Scenarios

Frequently Asked Questions

Q1: What is the delivery time for the machine? Standard models are usually delivered within 7-15 days. Customized models usually take 15-30 working days.

Q2: How do I know which laser machine is suitable for me? Please provide your material type, the desired marking effect, the maximum size of your material, and the required marking/cutting thickness for professional guidance.

Q3: How do you handle installation and training? We provide training videos and English user manuals for installation and maintenance. Remote technical guidance is available via email or phone. Engineering support can be sent if required.

Q4: What is the warranty policy? The quality guarantee period is 12 months from arrival. We provide spare parts free of charge during the warranty period, excluding man-made damage.

Q5: Do you support OEM/ODM customization? Yes, we offer customized solutions for OEM and ODM projects, including hardware specifications and brand LOGO customization.

Q6: How is product quality controlled? We implement strict quality control measures and a dedicated inspection team. Production pictures and videos are provided for client verification before delivery.
