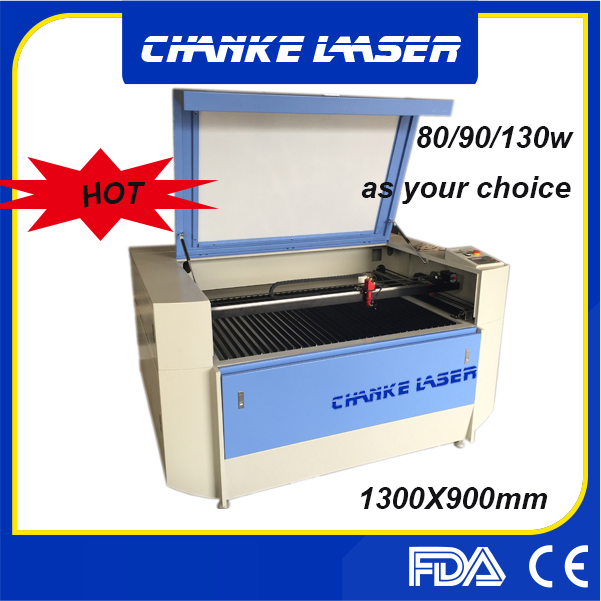

Hiwin Square Rail Laser Engraving System

Customization:	Available
Application:	Leather Industry, Construction Industry, Crafts Industr, Advertising Industry
Cooling System:	Water Cooling

Send Inquiry

Product Description

Basic Information

Model NO.

ck6090

Technical Class

Continuous Wave Laser

Automatic Grade

Automatic

Applicable Material

Nonmetal

Type

Flat-Plate

Laser Classification

Gaseous Laser

Engraving Method

Vector Engraving

Working Size

600X900mm

Rail

Hiwin Square Rail

Power

60W/80W/90W/100W/130W

Drive Type

Leadshine Stepper Driver

Certification

SGS, CE, ISO 9001

Laser Type

CO2

Control Software

Rdcam

Structure

Steel Structure of Lathe Bed

Product Technical Specifications

Model	CK1290 Laser Engraving Machine
Working area	120cm90cm / 47in35in (L*W)
Laser power	40W/60W/90w/100w
Laser type	CO2 sealed laser tube, water-cooled
Engraving speed	25-24000mm/min
Cutting speed	50-5000mm/min
Power supply	220V±10%/50HZ, 110V±10%/60HZ
Min. Shaping character	Letter 1.0 x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF, AI, CDR
Software supported	CorelDraw, PhotoShop, AutoCAD
Highest Scanning Precision	2500DPI
Resolution ratio	<0.01mm
Equipment Dimension	1650mm1250mm970mm
Net Weight	350kg

This versatile Hiwin Square Rail Laser Engraving System can effortlessly cut and engrave on acrylic materials up to a maximum thickness of 20mm. Available in multiple sizes: 1300x900mm, 1300x2500mm, 600x900mm, 1400x1000mm, and 1600x1000mm. It accommodates laser tubes from trusted brands like Beijing RECI and Chengdu Weegiant.

Honey Nest Table: Designed for soft materials such as leather, cloth, paper, and fiber, ensuring precise and gentle handling.

Blade Table: Engineered to withstand up to 200kg, perfect for cutting and engraving robust materials like wood and acrylic.

This system is adept at working with a wide range of materials including acrylic, double-colored boards, glass, crystal, marble, boulder, ceramic, wooden products, bamboo, cloth, leather, paper, plastic, and rubber.

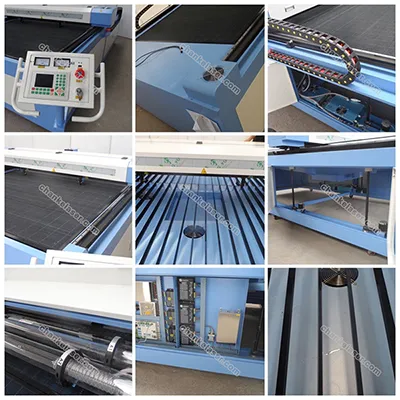

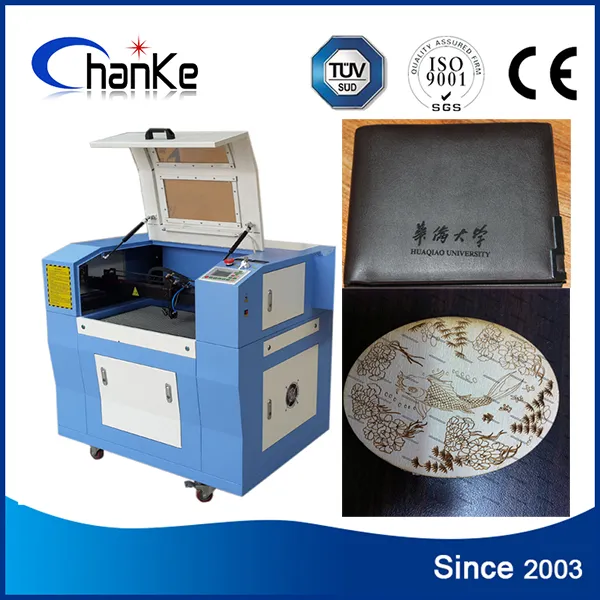

Product Display

Key Features

✓

Imported linear guideway ensures high precision and long service life.

✓

Stepper motor guarantees smooth cutting; optional SEVEO motor available.

✓

Red light positioning device accurately indicates the processing location.

✓

High-quality Beijing RECI laser tube offers over 10,000 hours of service life.

✓

Scientific high-strength steel-frame structure increases strength by over 40%.

✓

Anti-pollution design significantly enhances overall machine stability.

Frequently Asked Questions

What materials can this laser system engrave and cut?

It works with nonmetal materials including acrylic, wood, glass, crystal, marble, ceramic, bamboo, cloth, leather, paper, plastic, and rubber.

What is the maximum thickness of acrylic it can cut?

The system can effortlessly cut through acrylic materials up to a maximum thickness of 20mm.

How long does the laser tube last?

Equipped with a high-power Beijing RECI laser tube, the machine can operate for over 10,000 hours of continuous productivity.

Which software is compatible with this machine?

The machine supports Rdcam control software and is compatible with CorelDraw, PhotoShop, and AutoCAD.

What are the different table types used for?

The Honey Nest table is for soft materials like cloth and leather, while the Blade Table is designed for heavy materials like wood and acrylic up to 200kg.

Does the machine feature automatic positioning?

Yes, it is equipped with a red light positioning device that accurately indicates the laser head's location for precise processing.
