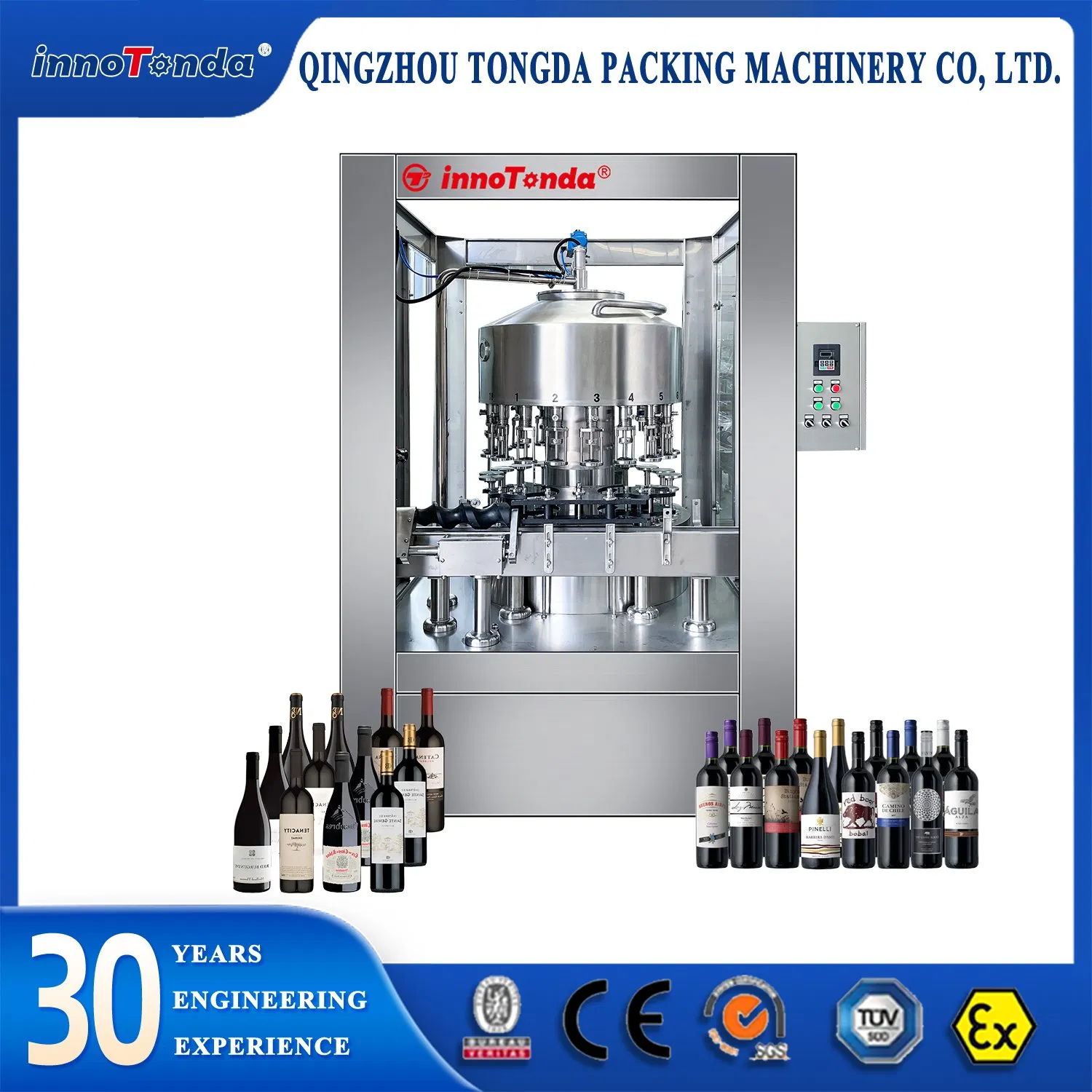

Low Maintenance Fruit Wine Filling System for Continuous Factory Operation

Customization:	Available
After-sales Service:	on-Site Installation/Online Guidance
Warranty:	1yaer

Send Inquiry

Product Description

Basic Specifications

Model NO.

GDP

Type

Monoblock Filling and Capping Machine

Automatic Grade

Fully Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Structure

Rotary

Packaging Range

30-1500ml

Production Capacity

5000-12000bph

Filling Principle

Tracking Mode

Package Size

280.00cm * 195.00cm * 230.00cm

Gross Weight

1000.000kg

HS Code

8422303090

Product Overview

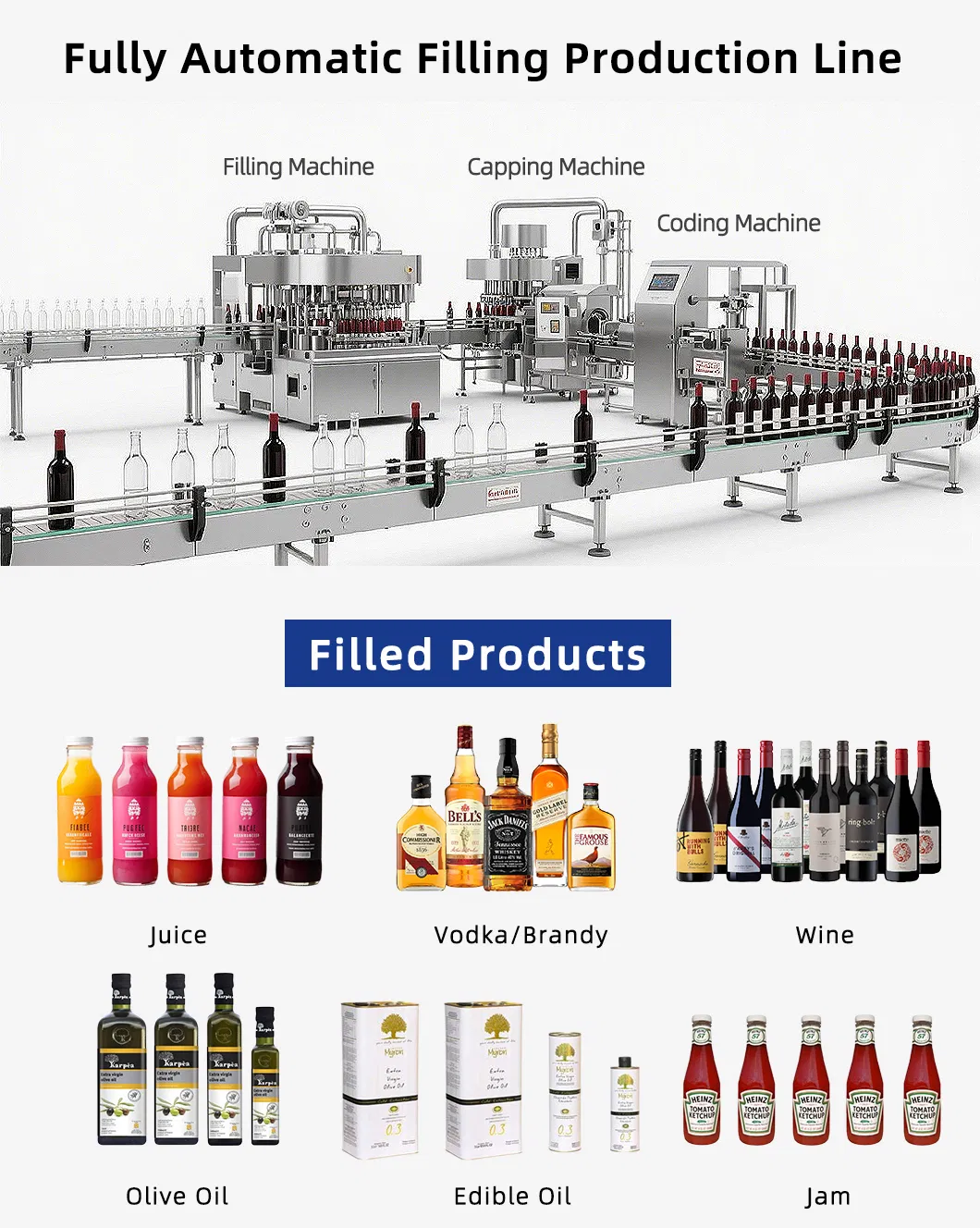

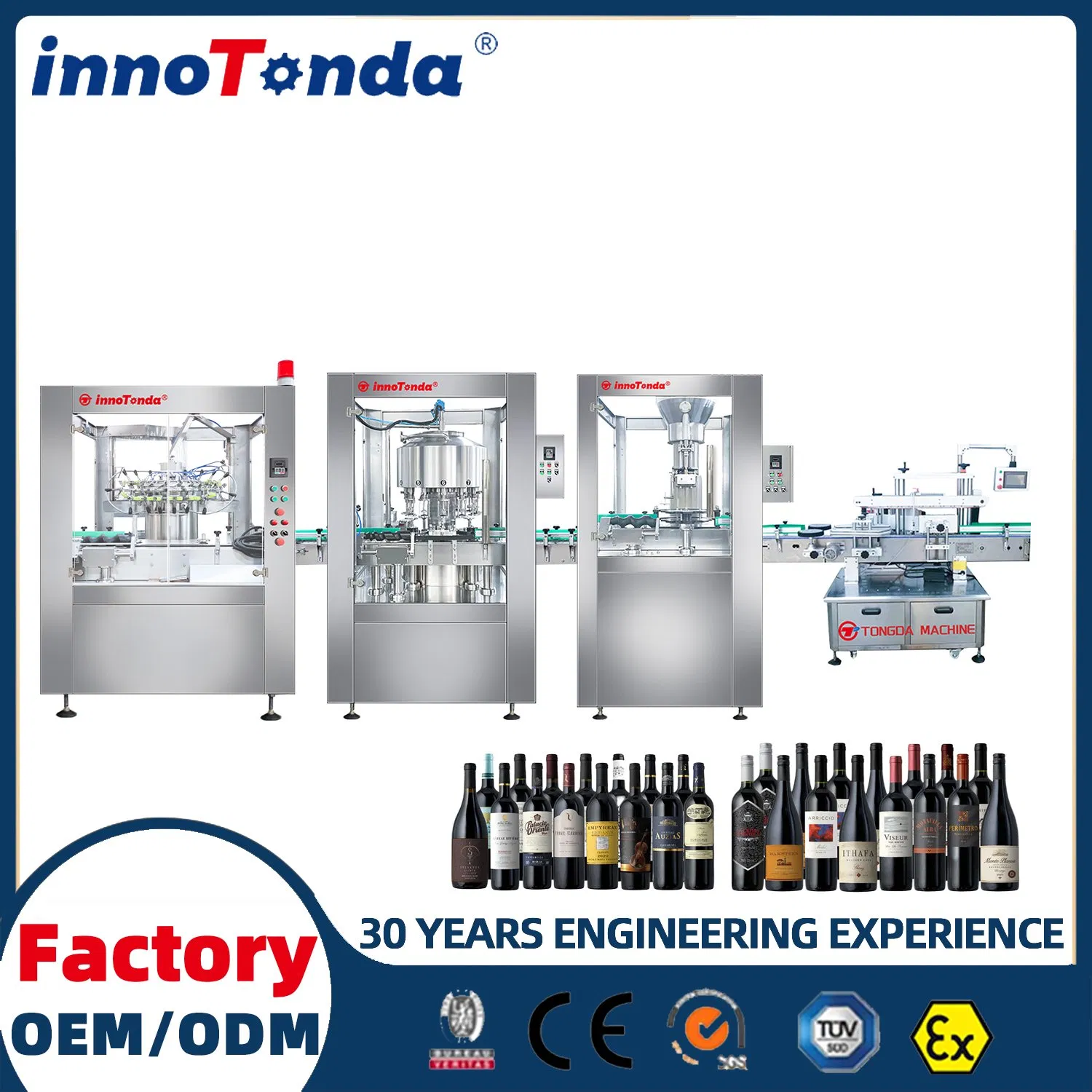

Complete Liquid Filling Production Line

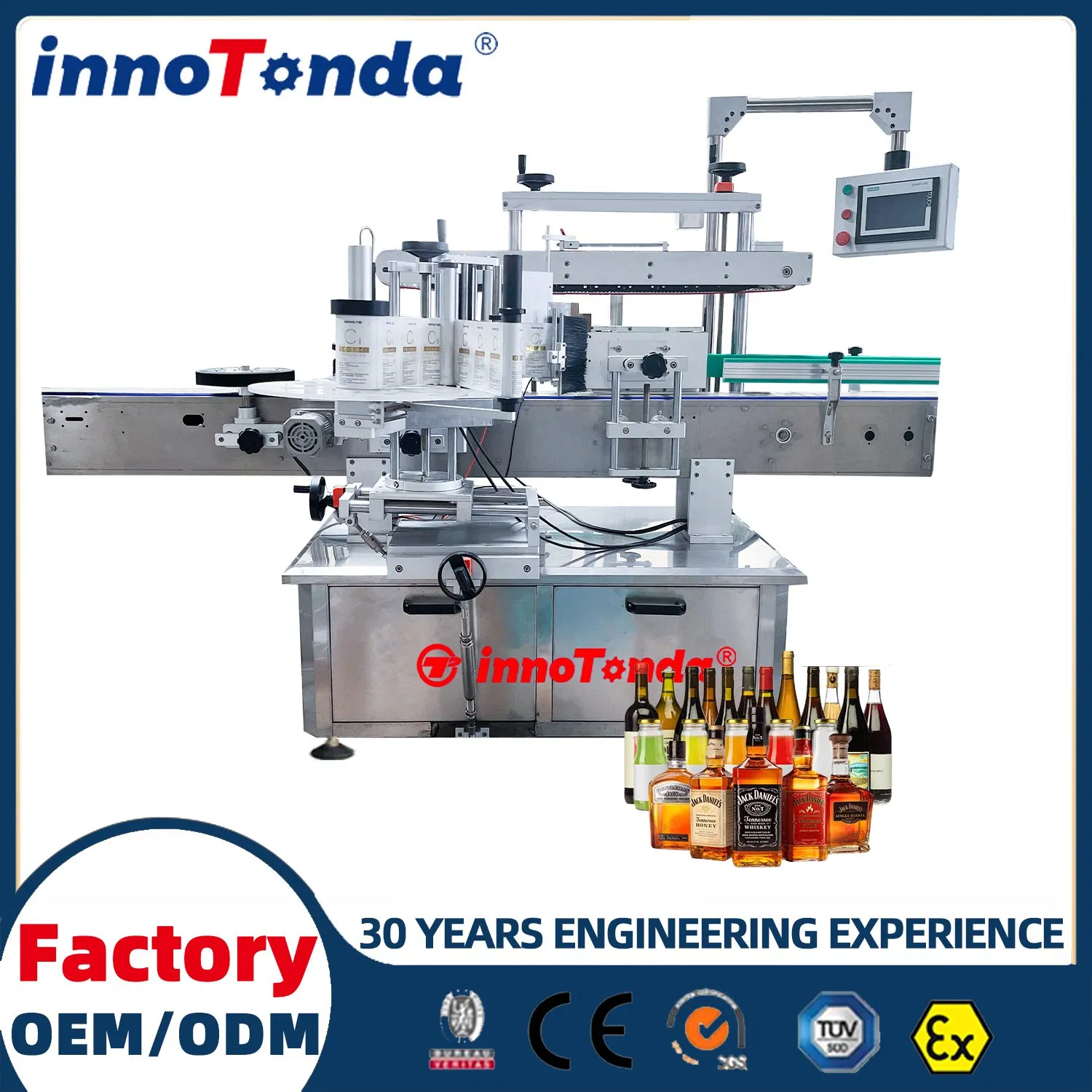

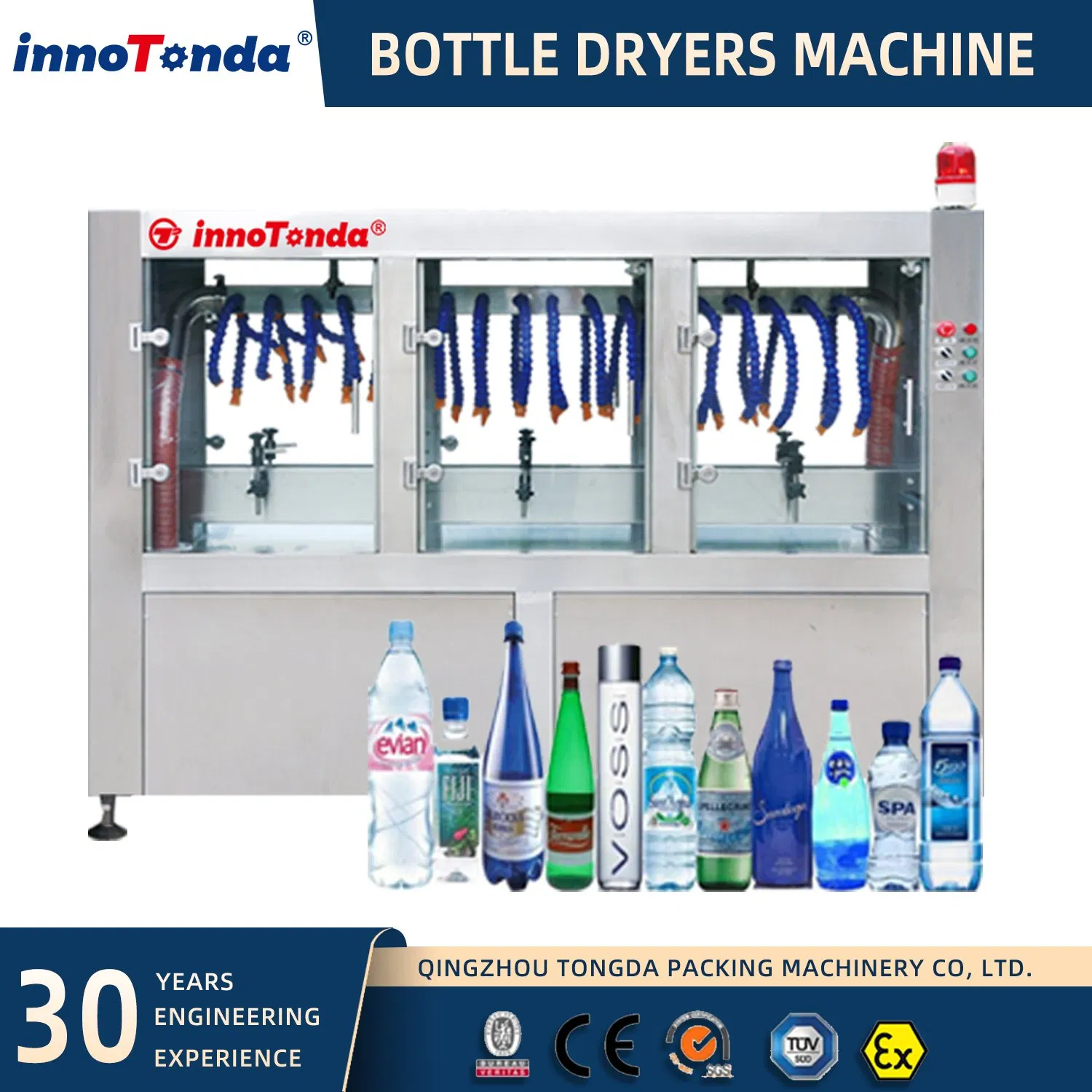

We provide comprehensive equipment including: Depalletizer, Bottle Washer, Filling Machine, Capping Machine, Bottle Dryer, Labeling Machine, Case Opener, Packer, Coding Machine, Case Sealer, and Palletizer.

Suitable for: Vodka, Brandy, Wine, Olive Oil, Cooking Oil, Jam, Juice, Beverages, Water, Syrup, Seasonings, and other liquid products.

Key Features & Technologies

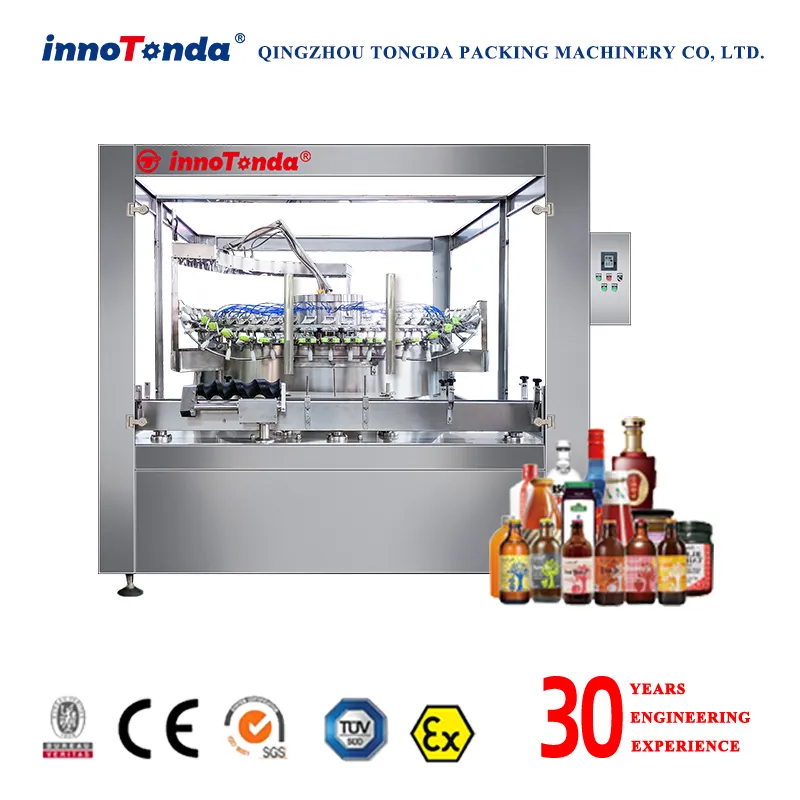

Bottle Rinsing System

Thorough Rinsing: Water distributor prevents bottle mouth blockage.
External Rinsing: High-pressure umbrella nozzles for 360° coverage.
Wide Adaptability: Fits heights 100-360mm and diameters Φ25-Φ100mm.
Water-saving: Integrated filtration and circulation system.

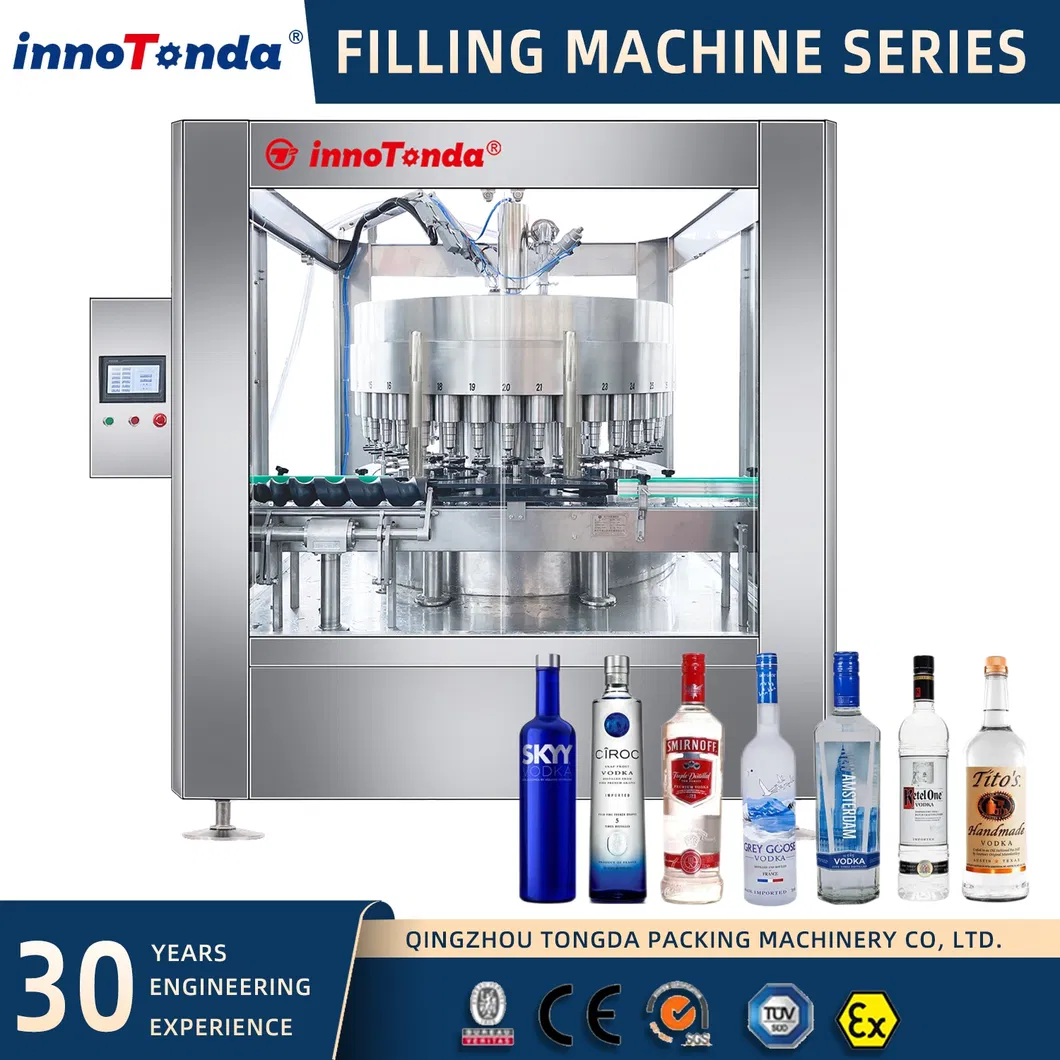

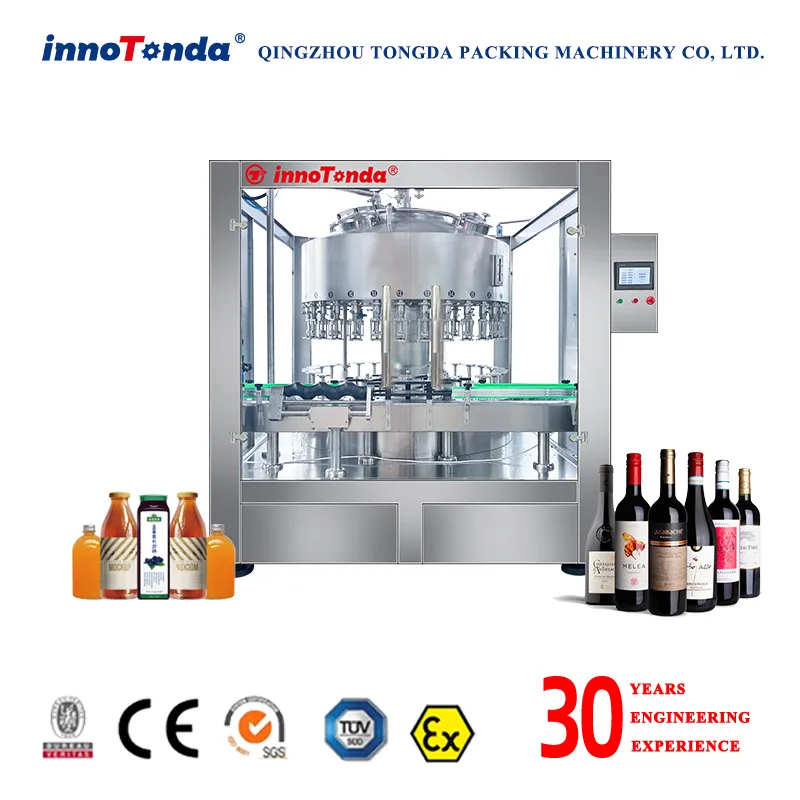

Advanced Filling Technology

Level-based Filling: Low-vacuum negative pressure prevents foaming.
Spray-style Design: Liquid flows along the inner wall to suppress impact foam.
Bottle Protection: Elastic support structure reduces breakage rates.
Smart Sensors: No bottle, no filling; detects defective bottle mouths.

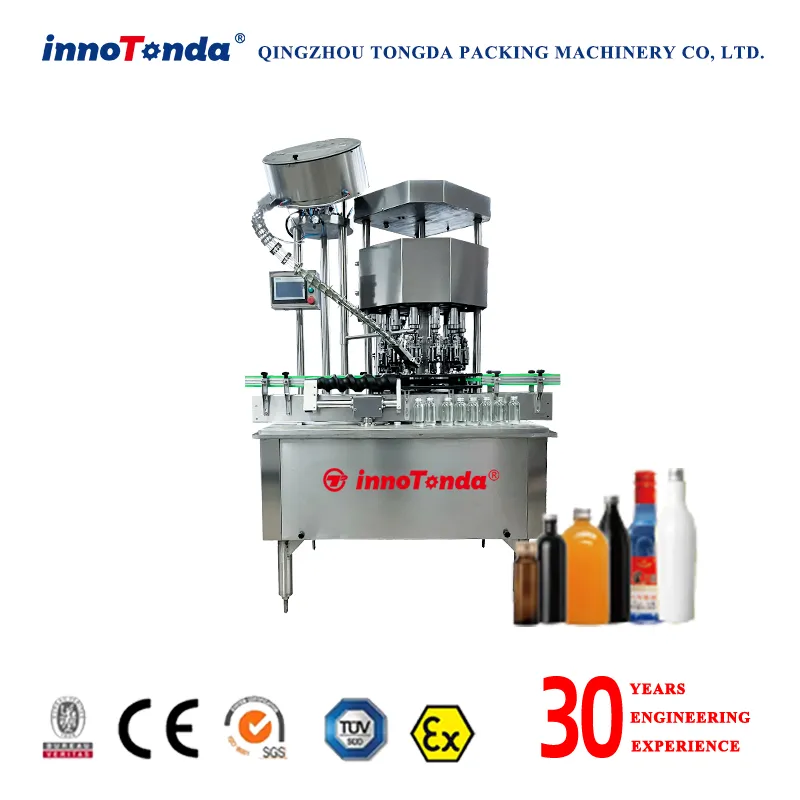

Precision Capping

Airtight Seal: Secure sealing for aluminum anti-theft caps with no scratches.
Flexible Heads: German-style horizontal or four-wheel balanced lever heads.
Automation: Automatic cap orientation and hanging functions.
Durable Components: Capping wheels made from specialized high-wear materials.

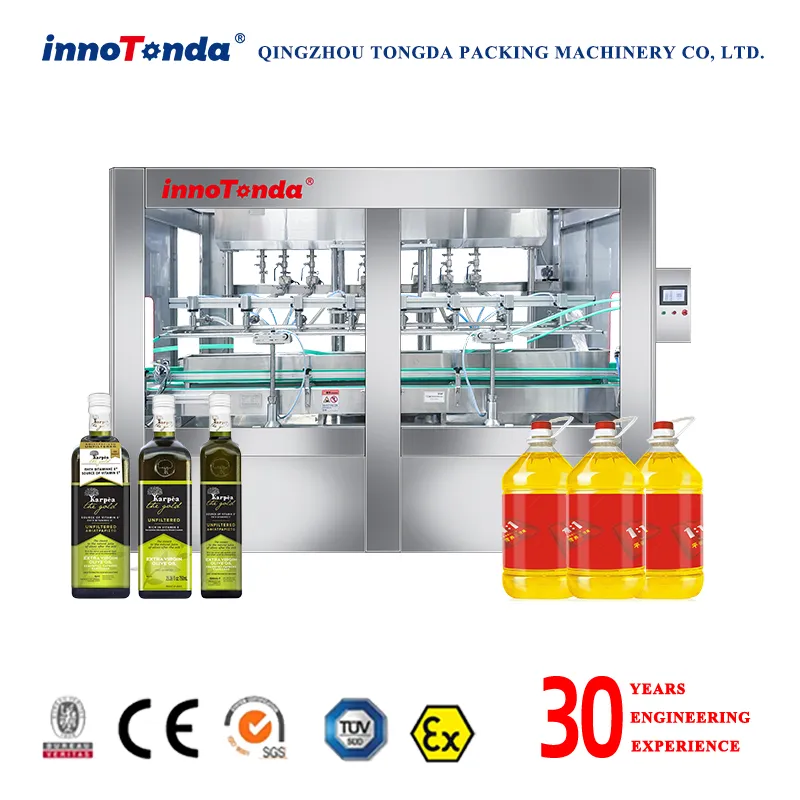

Control & Precision

PLC microcomputer programmable control with integrated sensing and pneumatic execution.
Streamlined metering pump structure to avoid material contamination.
Automatic speed and pressure reduction near the bottle mouth to prevent overflow.
Easy adjustment via touch screen for rapid specification changes.

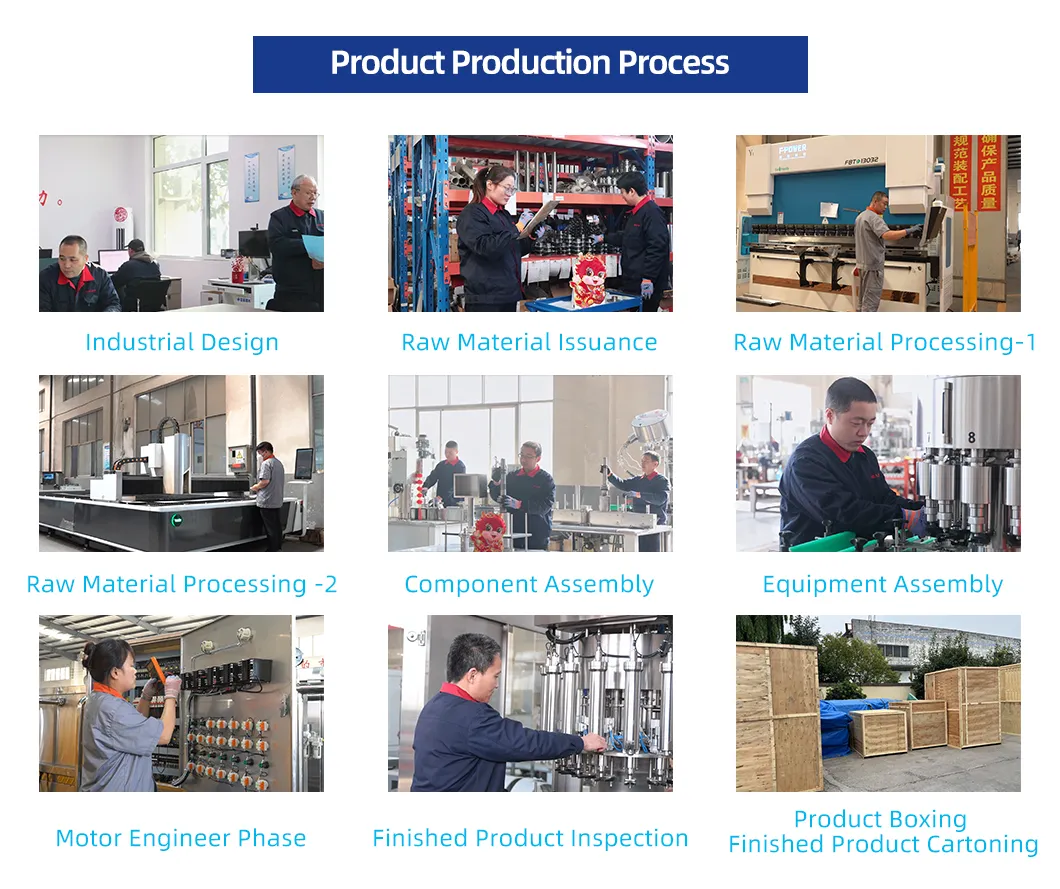

Manufacturing Excellence

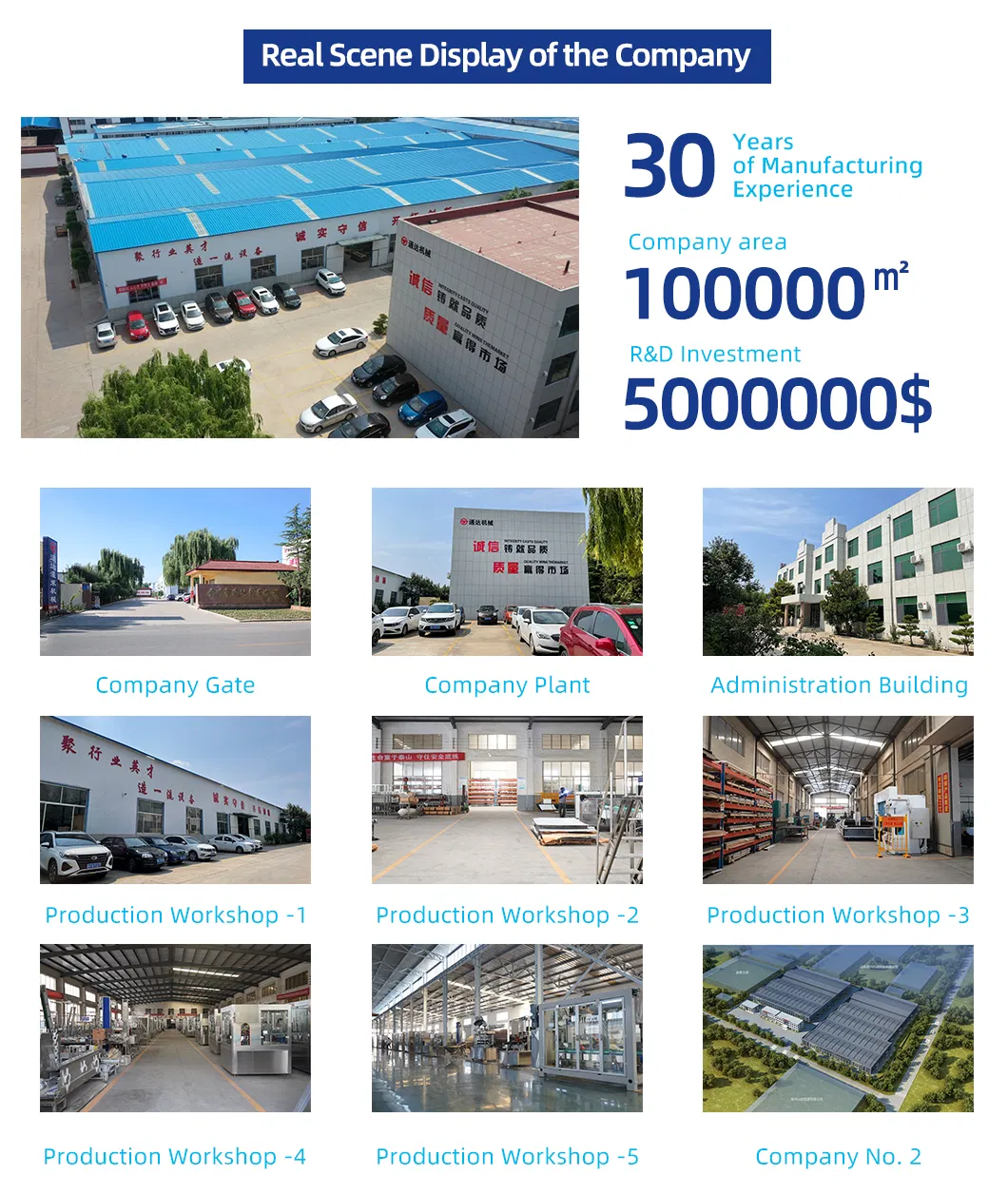

Utilizing modern CAD/CAM/CNC technologies, we ensure precision in every stage of production. Our facilities cover a total area of 100,000 square meters, equipped with advanced CNC machining centers. We maintain a strict quality control system certified under ISO 9001 and CE standards.

Related Machine Models

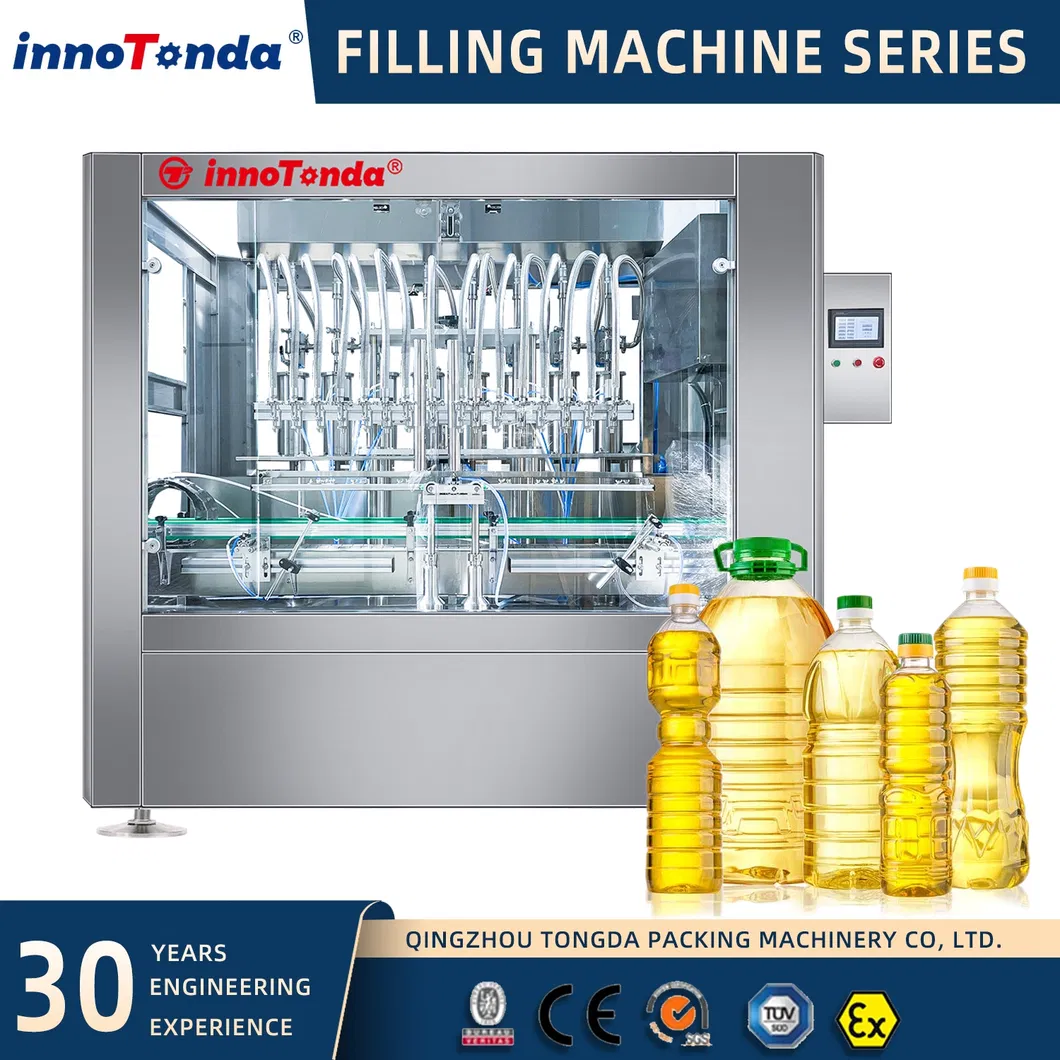

Piston Filling Machine

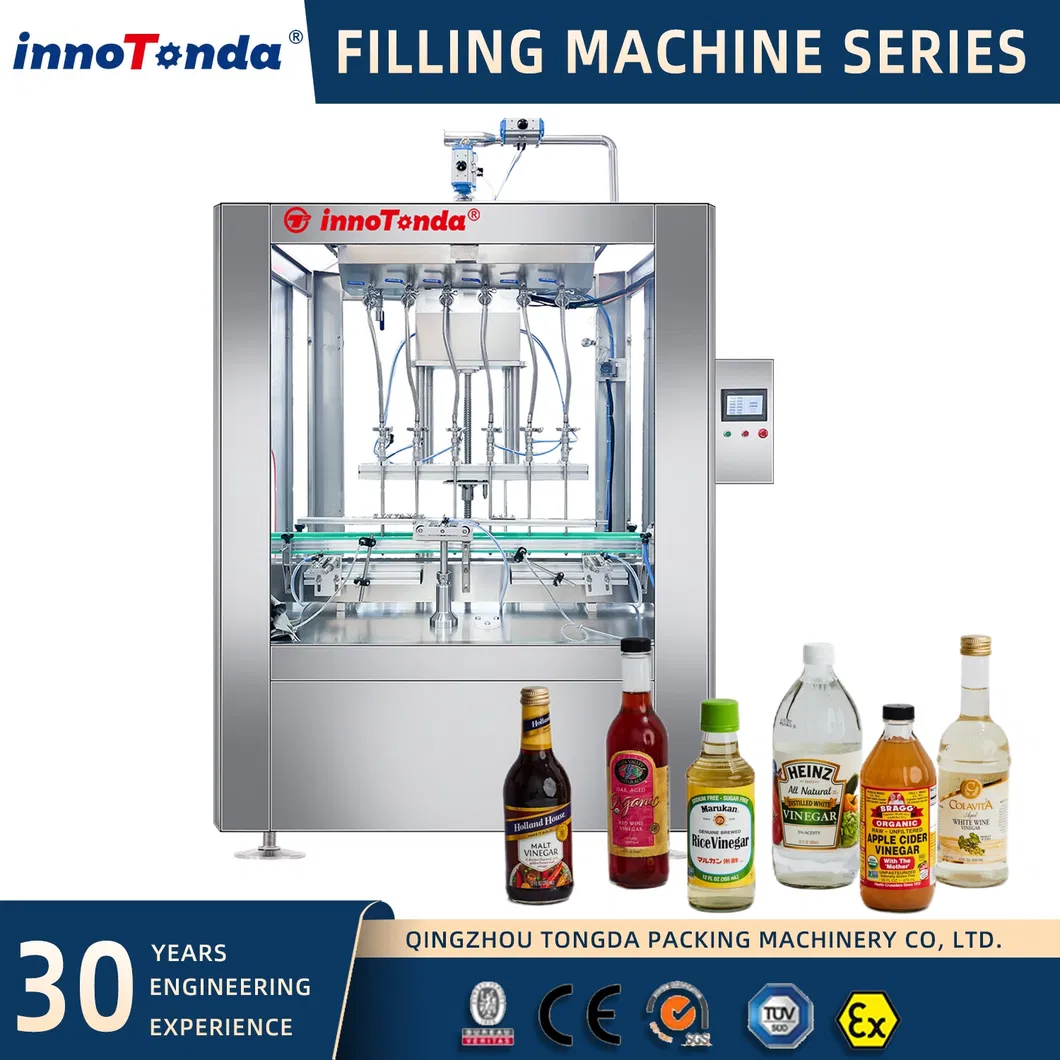

Gravity Filling Machine

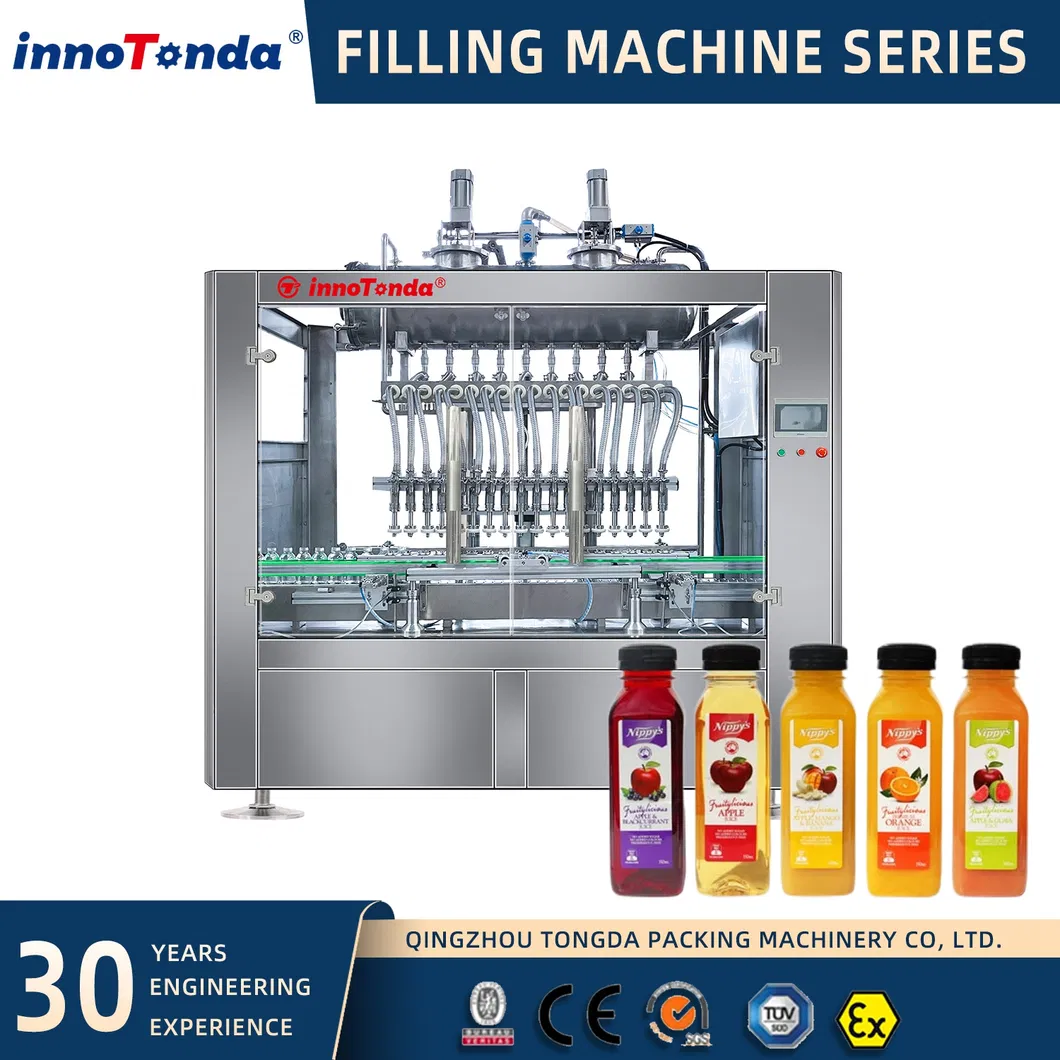

Linear Low Vacuum Filling Machine

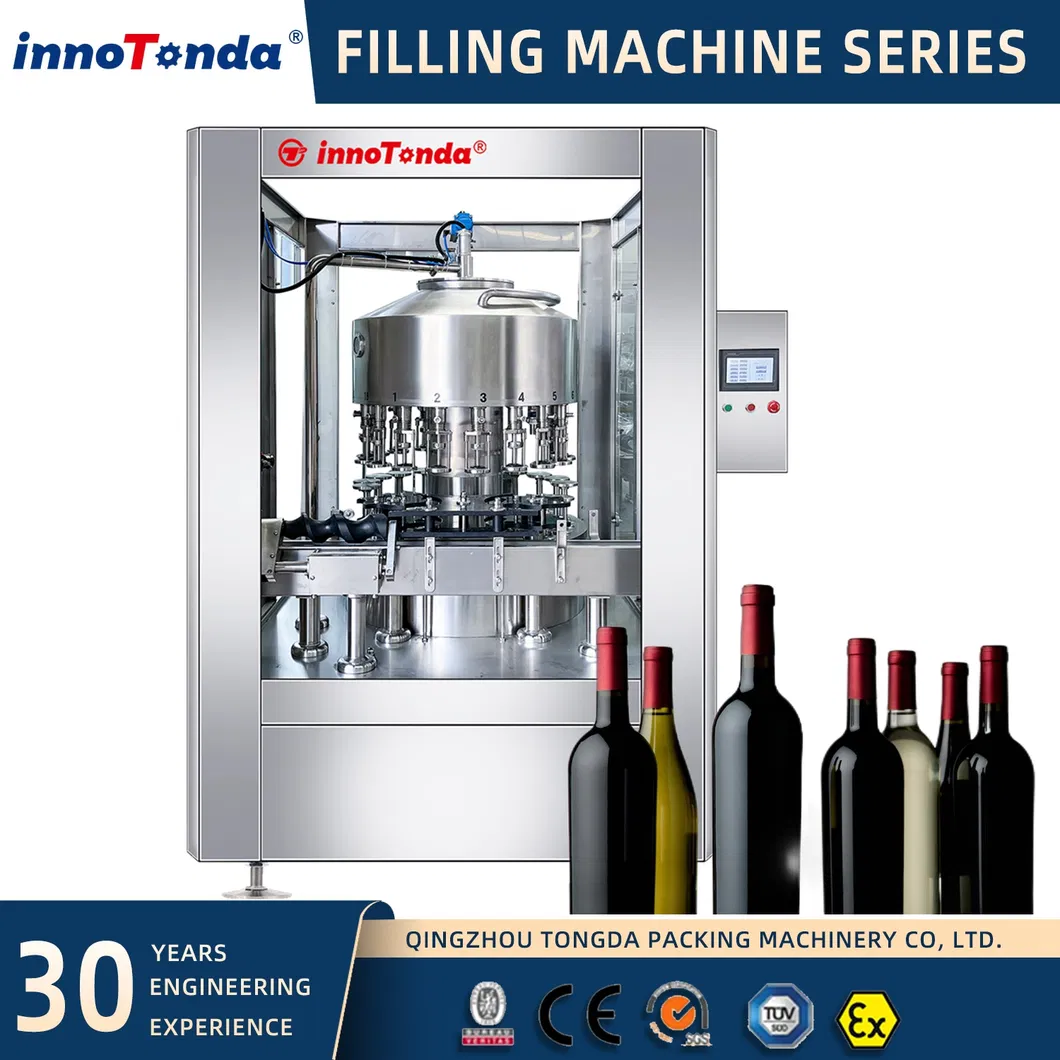

Low Vacuum Filling Machine

Quantitative Filling Machine

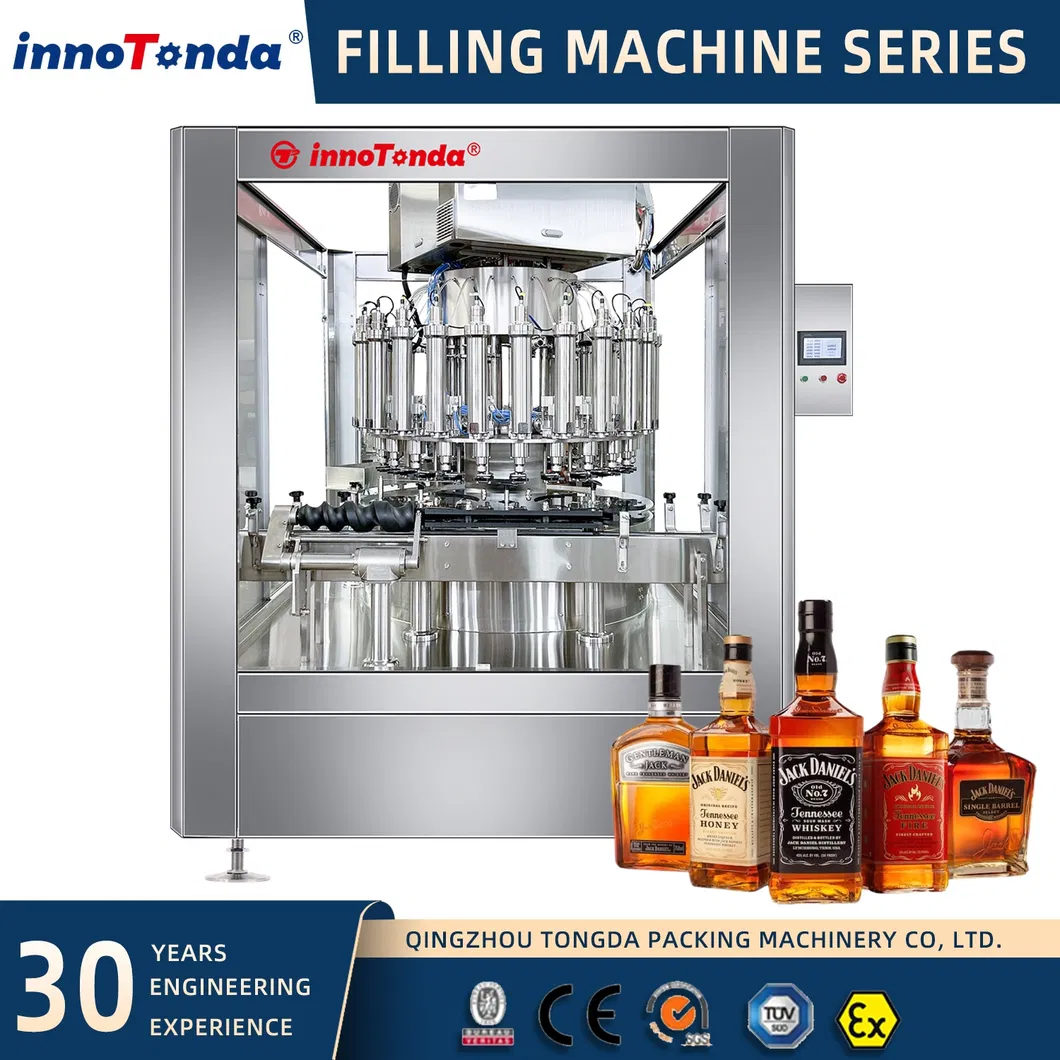

Liquor Filling Machine

Frequently Asked Questions

Q1: Are you a factory or trading company? A: We are a professional manufacturing factory specializing in liquid filling production lines.

Q2: How do you guarantee the quality of your machines? A: Quality is our principle. We utilize advanced CNC machining, follow ISO 9001 and CE standards, and perform strict precision inspections on every component before delivery.

Q3: What should I do if I cannot operate the machine upon arrival? A: Each machine includes an operation manual and video demonstrations. Additionally, our professional after-sales group is available to provide instructions and solve operational issues.

Q4: How can I obtain spare parts for the machines? A: We provide sets of easy-wear parts (like O-rings) with the machine. During the 1-year warranty, non-artificial damaged spares are provided and shipped free of charge.

Q5: What are the payment and trade terms for new customers? A: Typically, we accept a 30% T/T deposit in advance, with the 70% balance due against a copy of the B/L. Western Union and LC are also acceptable.

Q6: What is the minimum order quantity and warranty period? A: The MOQ is 1 set. We offer a standard 12-month warranty, with some customized products extending up to 24 months.
