Metal (Carbon Steel, Stainless Steel, Aluminum, Copper)
Power Options
1kw, 1.5kw, 2kw, 3kw
Laser Source
Raycus / Max
Selling Point
Easy to Operate
HS Code
8515809090

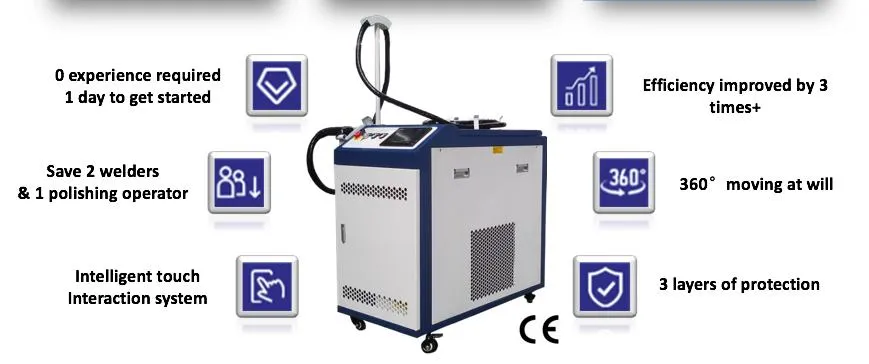

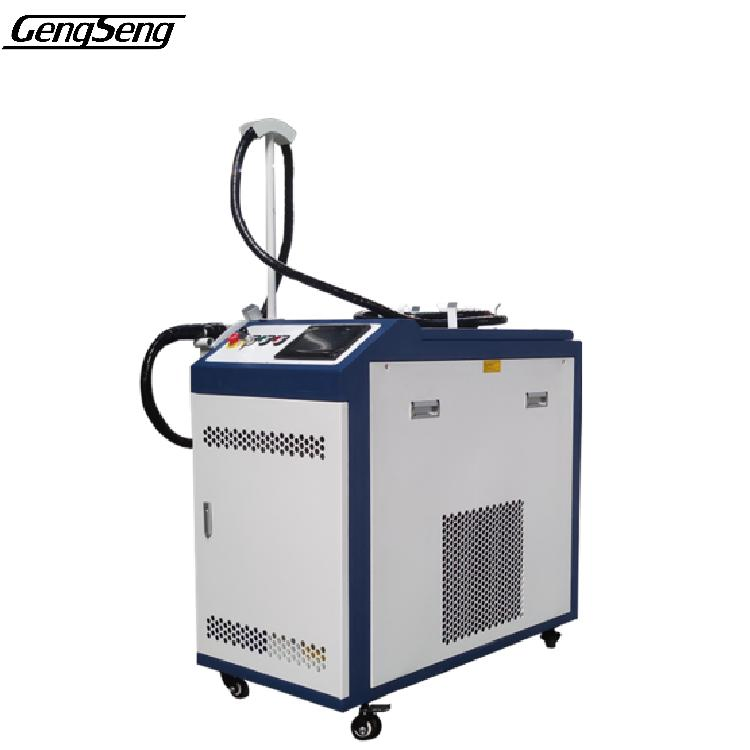

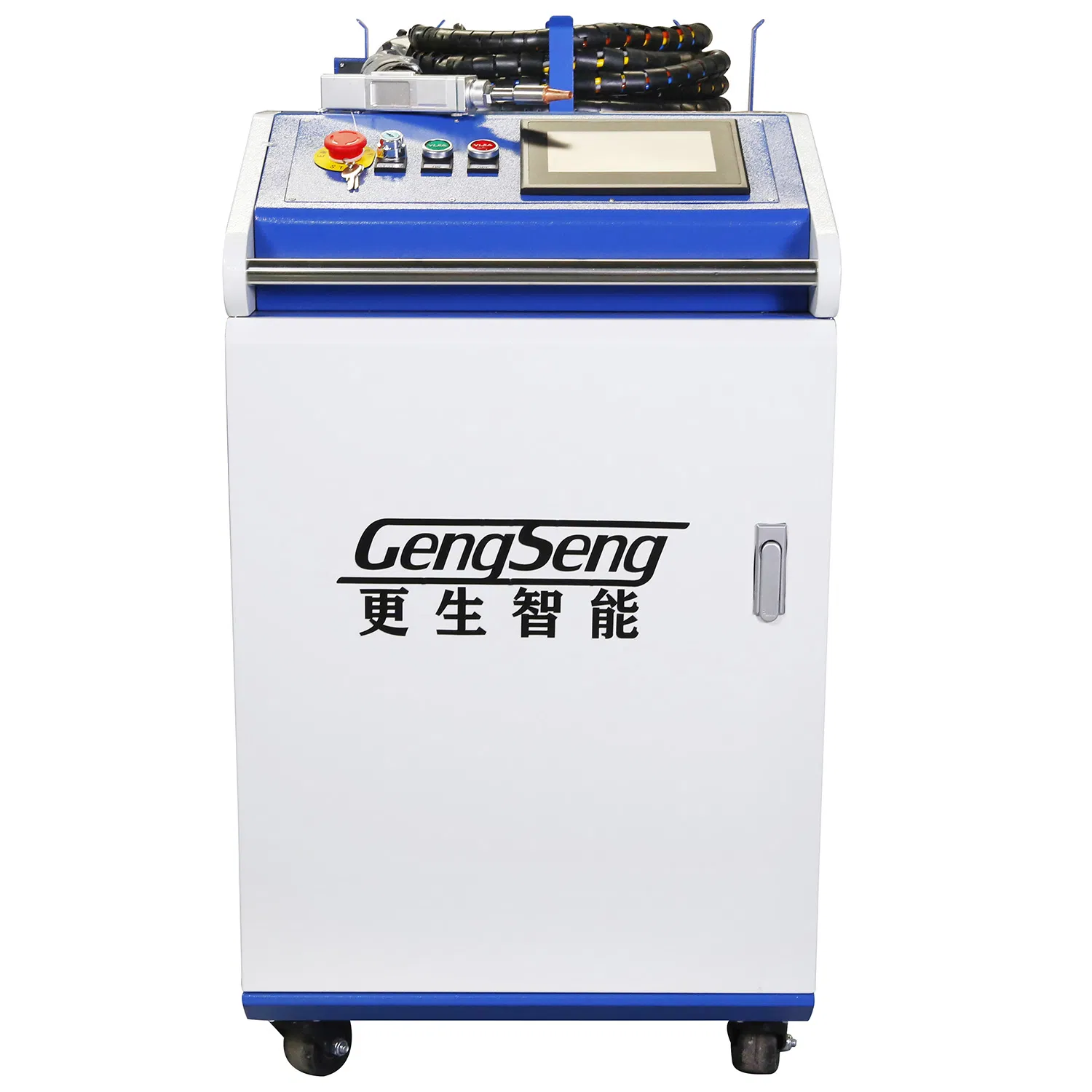

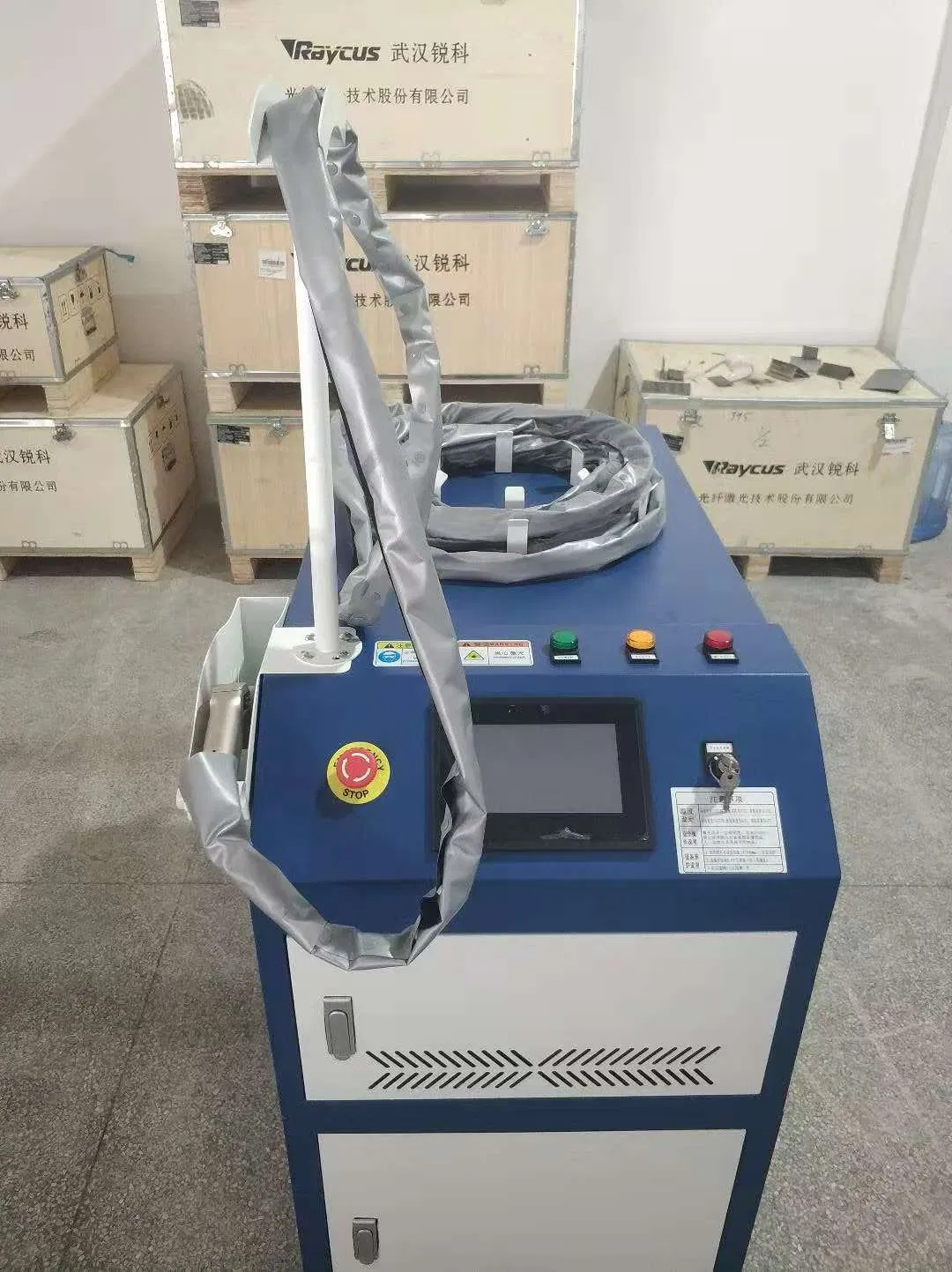

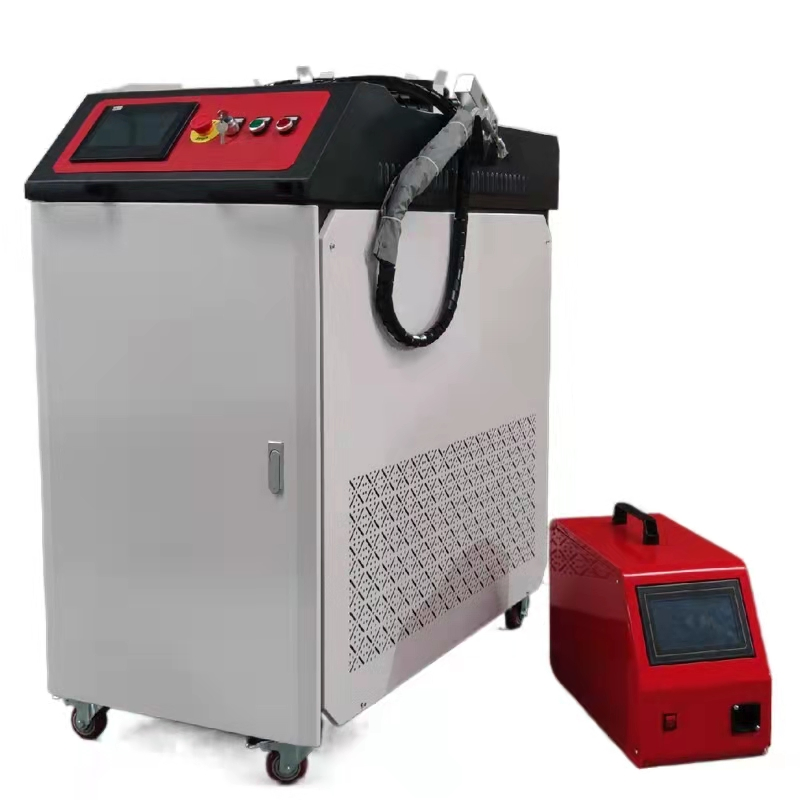

Handheld Fiber Laser Welding Machine

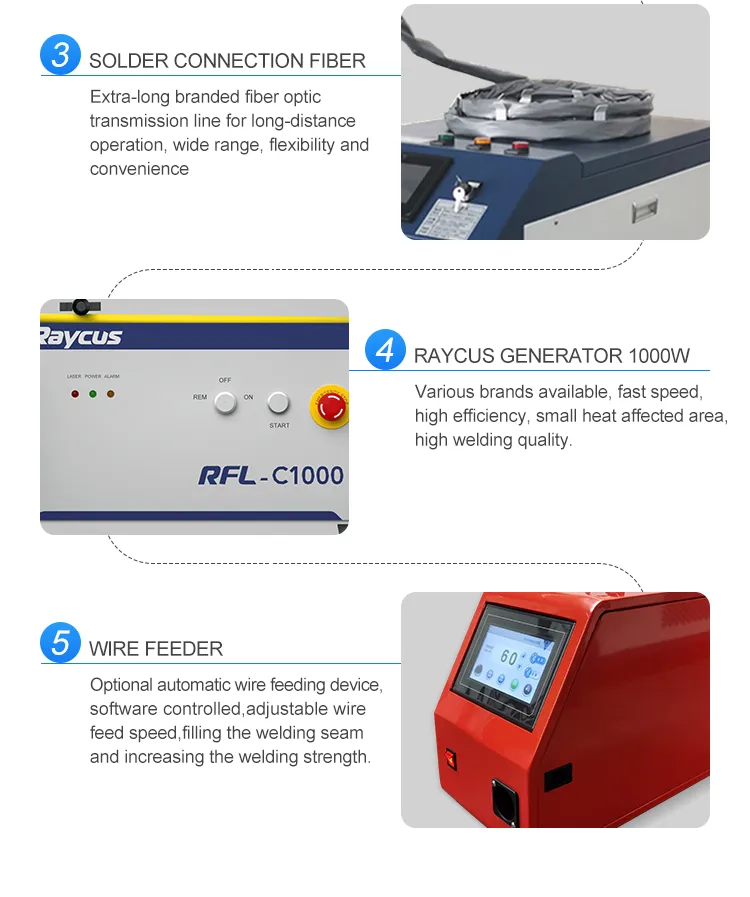

The handheld laser welding machine is an integrated system consisting of a laser source, chiller, control software, welding head, and optical fiber. It offers a simple structure, fast start-up, and flexible operation. Its strong welding penetration allows for high-quality results at various complex angles.
✔ Fast Speed
✔ Simple Operation
✔ High Strength
✔ Versatile Materials
Technical Parameters
Model Parameter
GS-HW1500
GS-HW2000
GS-HW3000
Laser Power Source
1500W
2000W
3000W
Fiber Length
10m / 15m
10m / 15m
10m / 15m
Iron Welding Thickness
4-6mm
5-8mm
8-10mm
Stainless Steel Thickness
4-6mm
5-8mm
8-10mm
Aluminum Welding Thickness
2-3mm
3-4mm
4-8mm
Voltage / Frequency
AC220V 50HZ
AC380V 50HZ
AC380V 50HZ
Engine Power
7.2KW
12KW
15KW
Cooling Type
Water Cooling
Water Cooling
Water Cooling
Operating Temperature
<70ºC
<70ºC
<70ºC
Machine Details & Features

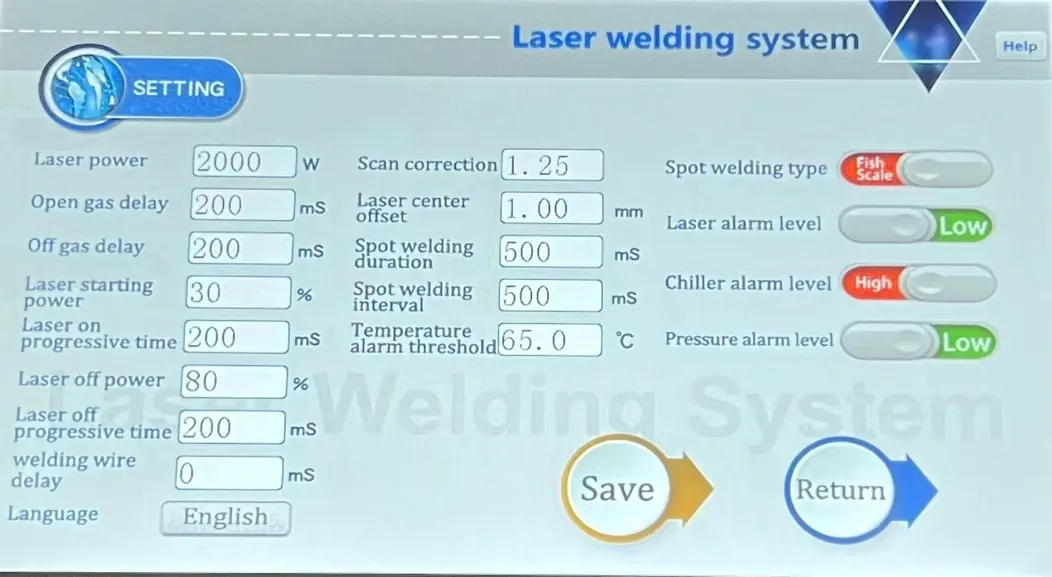

Simple Operation - No Specialized Training Required:
Featuring an intuitive English operation interface, the system provides clear status monitoring via a touch-responsive screen. Multiple safety alarms ensure that the laser stops automatically once the workpiece is removed.

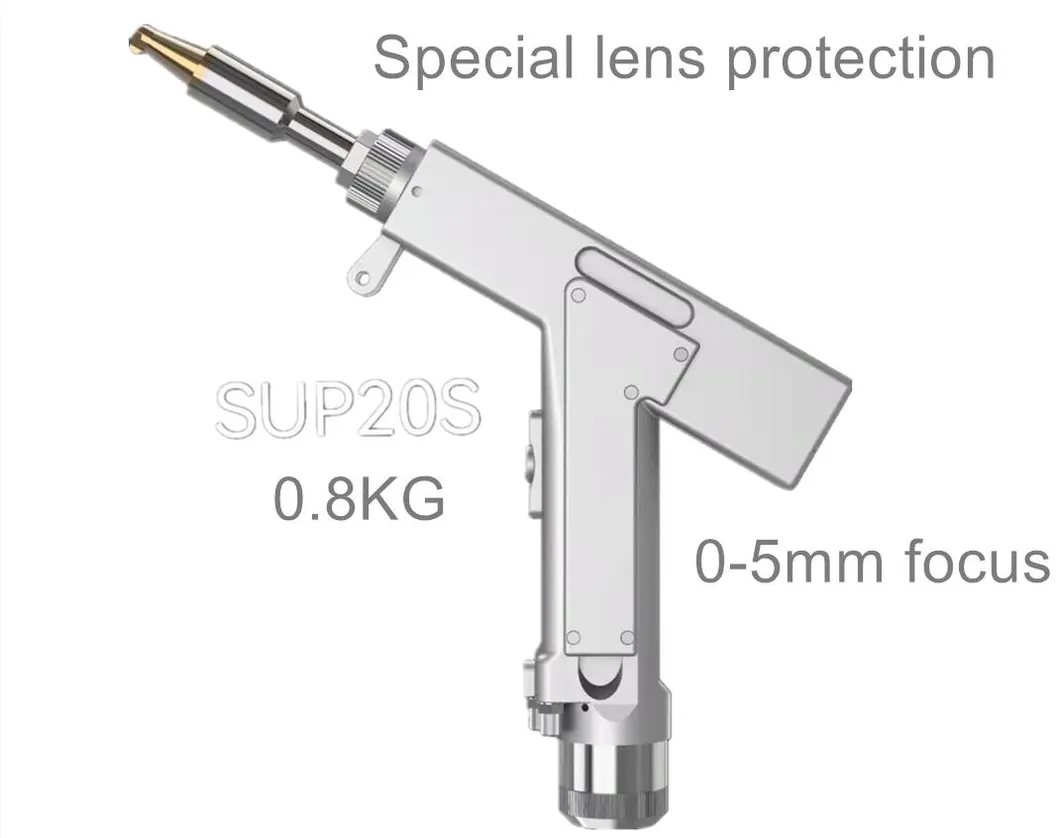

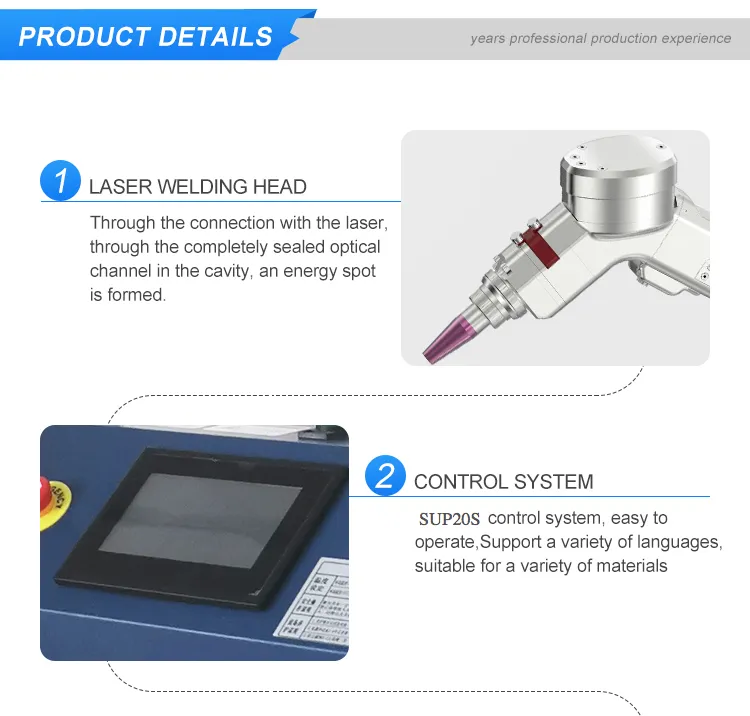

SUP20S WELDING HEAD:
The inclusion of double-wedge wobble technology allows for wider weld seams and higher tolerance for part gaps, solving the limitations of traditional small-spot laser welding.

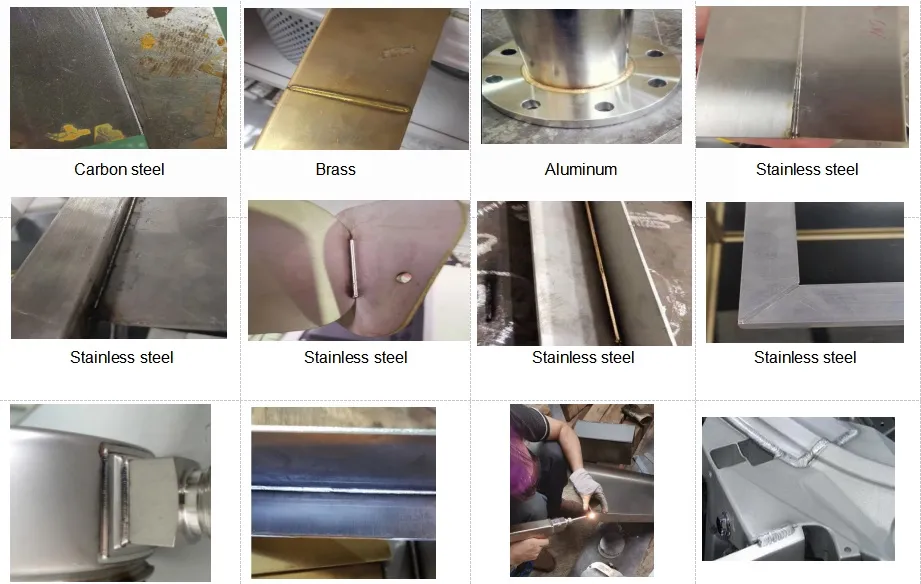

Welding Samples & Industry Applications
Ideal for complex and irregular welding in:
Kitchen cabinets, staircases, elevators, stainless steel furniture, door and window guardrails, and many other metal fabrication industries.

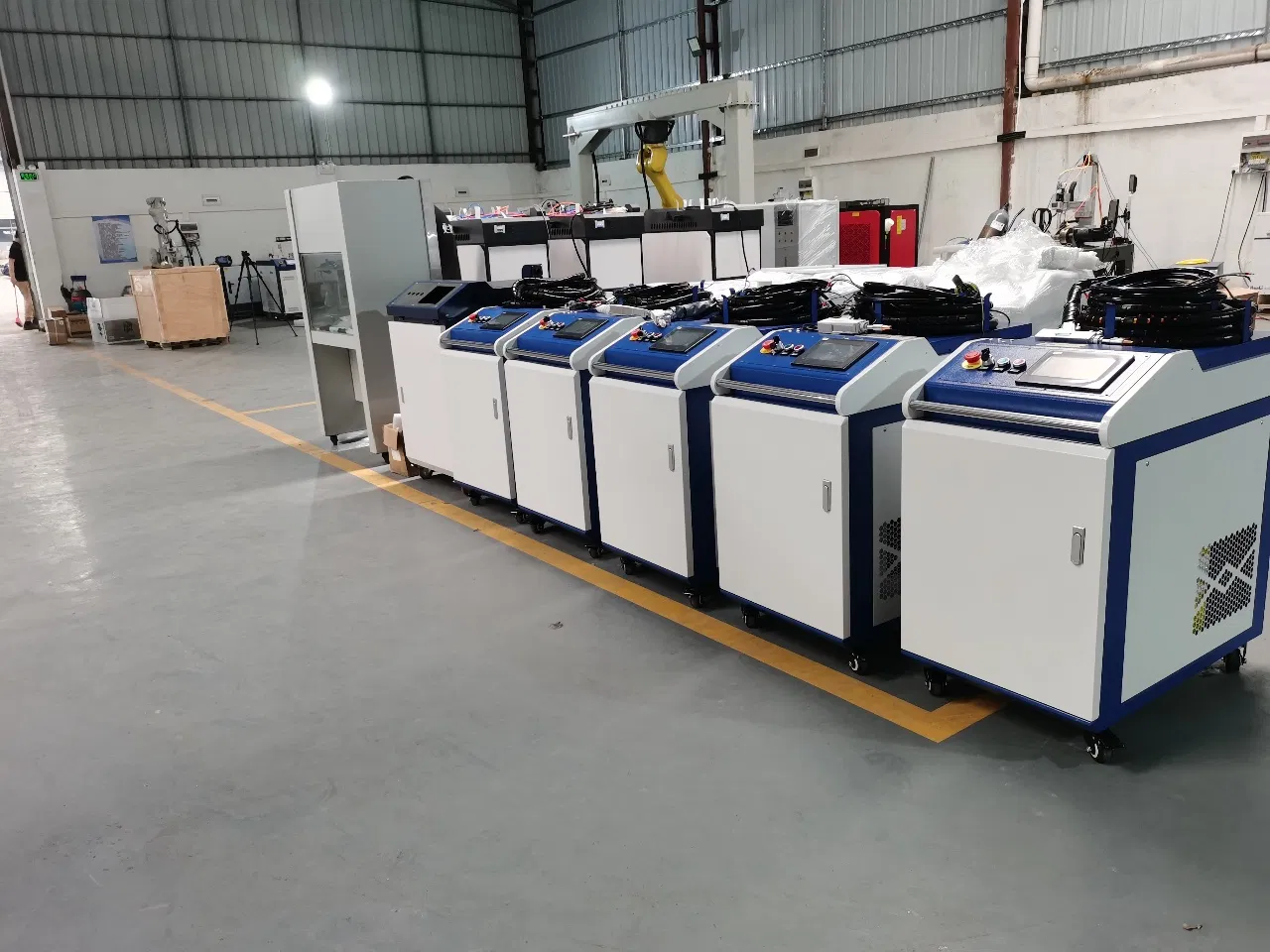

Manufacturing Excellence
Frequently Asked Questions
I'm not familiar with this machine, how do I choose the right one?
Simply provide us with your material type, working size, and thickness, and we will recommend the most suitable machine for your needs.
How do I operate the machine?
We provide an English manual and instructional videos with the machine. Additionally, our professional technical engineers are available for further training and support.
What is the policy for machine issues during the warranty period?
Free replacement parts are provided for non-operator-caused issues. We also offer lifetime repair services and technical support beyond the warranty period.
Can I get a sample to check the quality?
Yes, we can provide free marking samples. You just need to provide your logo or design, and we will process it to verify quality.
Can the machine be customized?
Absolutely. We have a strong technical team with rich experience capable of customizing equipment according to your specific requirements.
Can you arrange shipment for me?
Yes, we can arrange shipment by sea or air. We support various trading terms including FOB, CIF, and EXW.
