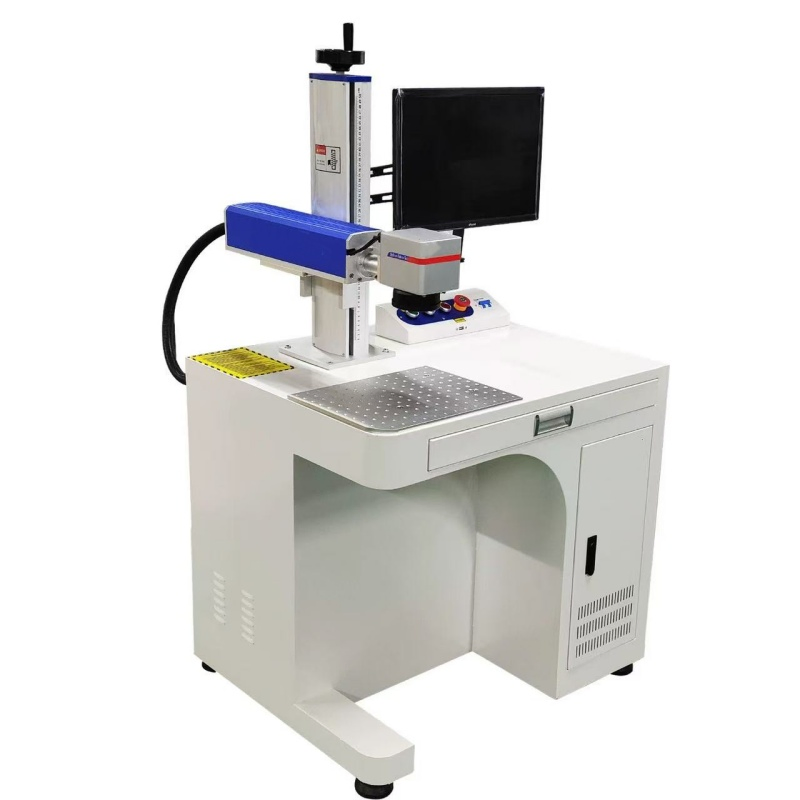

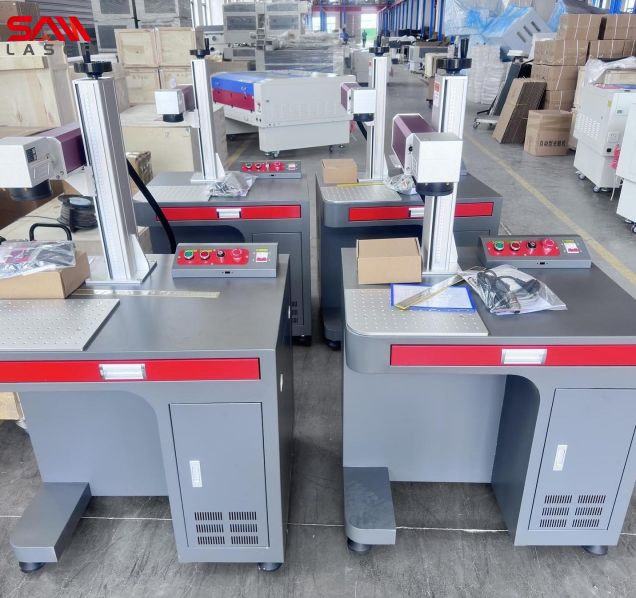

50W 100W Max Raycus Jpt Laser Source Metal Deep Engraving 3D 2D Marking Metal Personalized Label Fiber Laser Marking Machine Price

Customization: Available
After-sales Service: 24-Hour Online Service
Warranty: 2 Years

Product Description

📋 Basic Information
Model NO.
SAN-Marker
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Laser Wavelength
Fiber Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Control Software
Ez CAD
Working Accuracy
0.001mm
Laser Source Brand
Jpt/Max/Raycus/Ipg
Laser Power
20W/30W/50W/70W/100W
Marking Speed
7000mm/Second
💡 Product Description

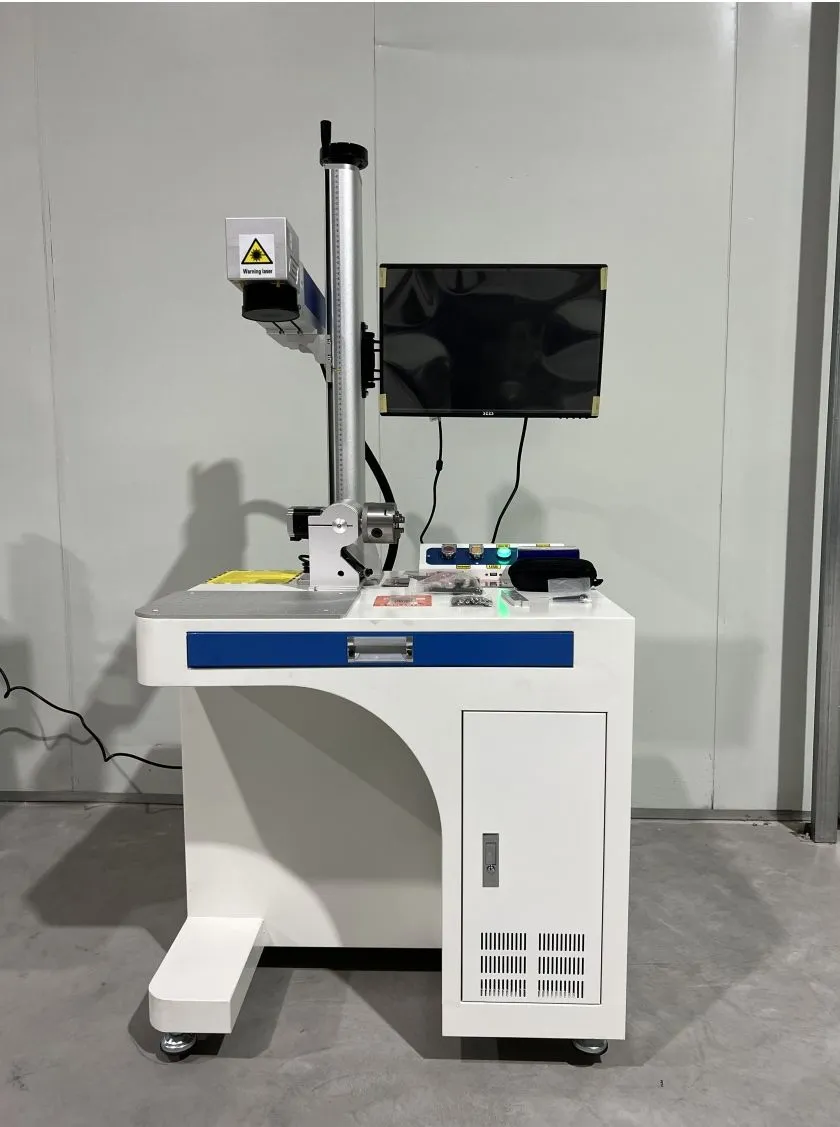

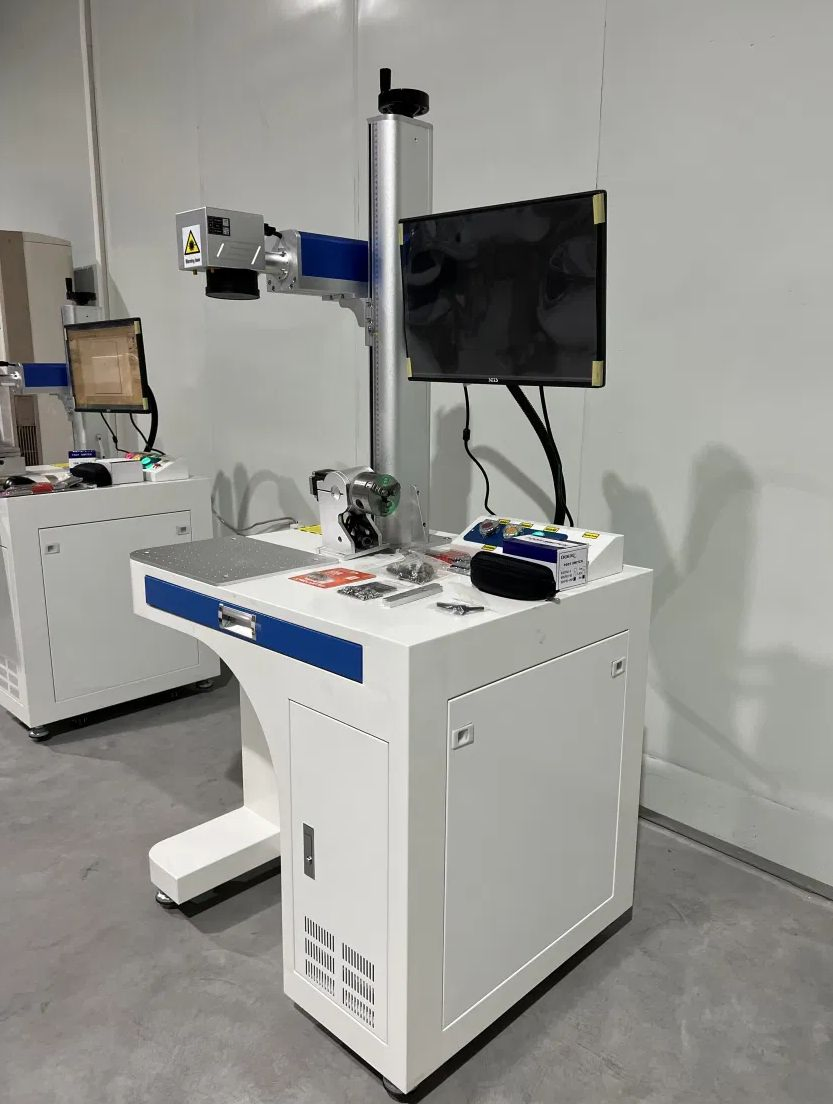

Fiber Laser Marking Machine

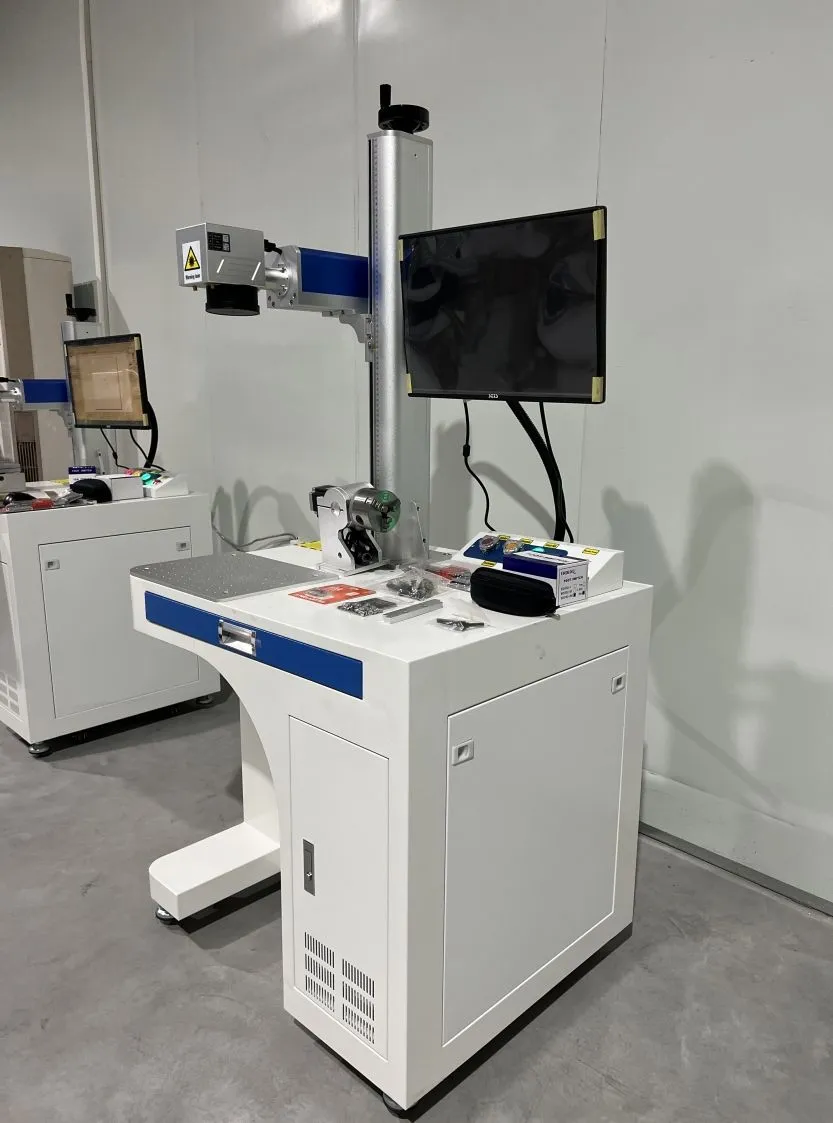

Metal Engraving Sample

Our Fiber Laser Marking Machine is a powerhouse in material processing, designed to elegantly handle an extensive array of both metal and select non-metal materials with precision. Effortlessly engrave on stainless steel, carbon steel, copper plates, and aluminum plates, making it the quintessential choice for industrial applications.

This technology embraces non-contact processing, ensuring zero damage to products, eliminating tool wear, and delivering superior marking quality. With a meticulously focused laser beam, our machine guarantees minimal material consumption and a reduced heat-affected zone.

Technical Parameters
Parameter Item Specification Details
Beam qualityM2:1.5
Average output power20w / 30w / 50w / 70w / 100w
Maximum linear marking speed8000 mm/s
Laser wavelength1064 nm
Marking range70-300mm (optional)
Laser repetition frequency20 KHZ-80 KHZ, 1-500 KHZ
Minimum character height0.2 mm
Repeat accuracy0.005 mm
Minimum line width0.01 mm
Cooling systemAir cooling
General Configuration
🔉
Laser Sources: Equipped with top-tier Raycus, Max, or JPT laser sources for unmatched reliability.
💻
Control System: Advanced Beijing JCZ EZCAD Card, compatible with WIN10/WIN11 (32/64bit).
📍
Galvo Lens: 110/150mm lens from Nanjing Wavelength, ensuring market-leading precision.
High-Speed Scanning: SINO GALVO high-speed galvanometer for swift processing.
Z-Axis: 55cm z-pillar height with electric up and down adjustments for versatile processing.
🔨 Accessories & Quality Control

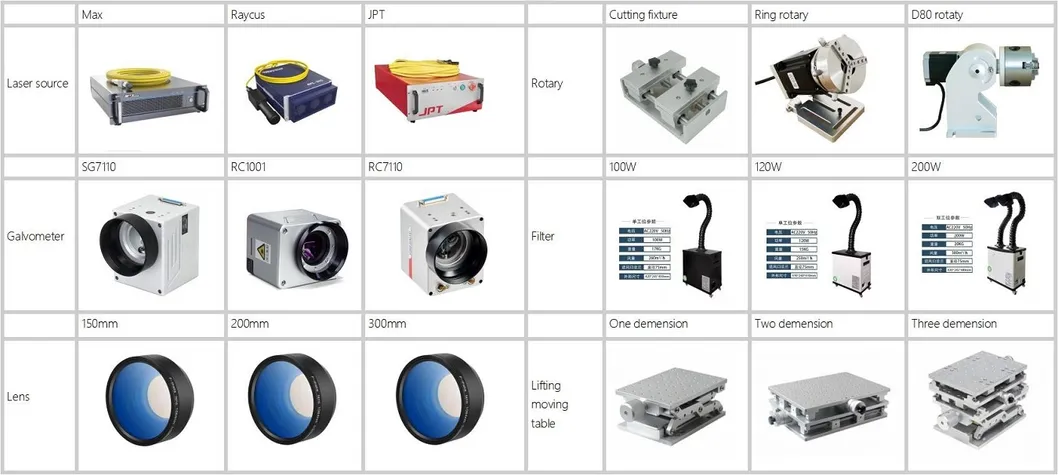

Optional Accessories

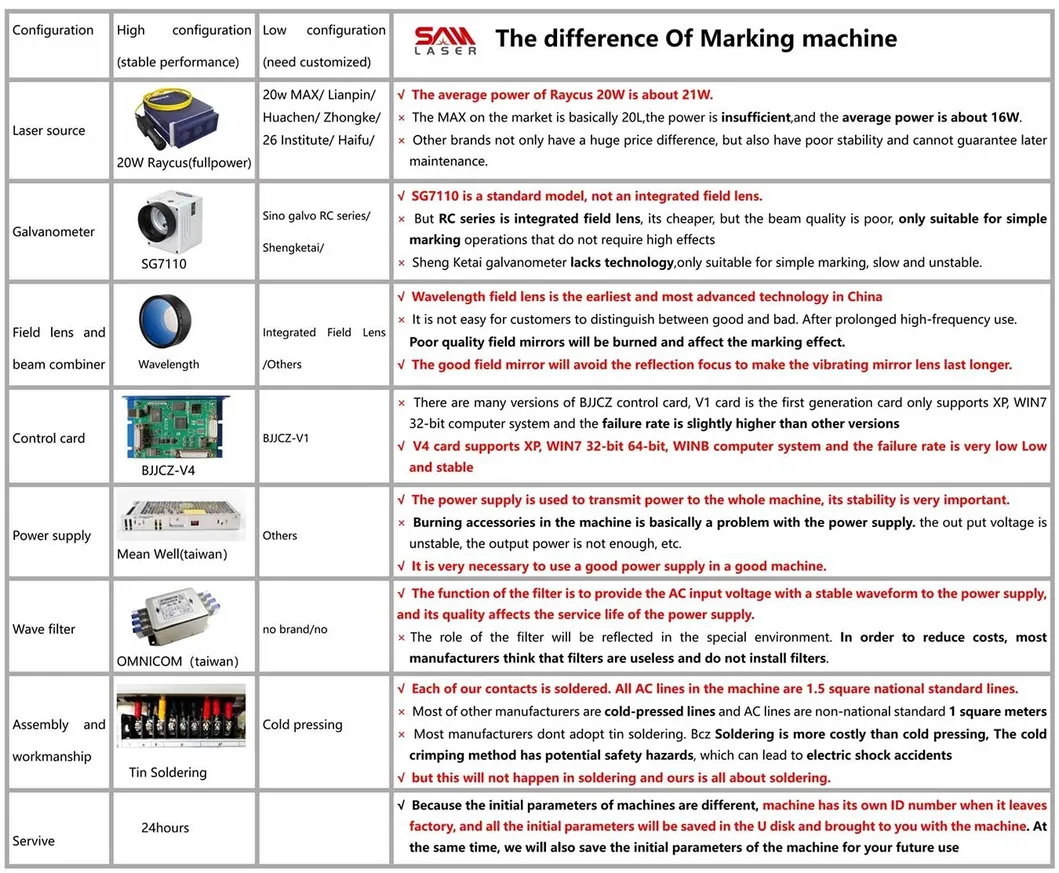

Quality Control Process
🎯 Applications & Samples

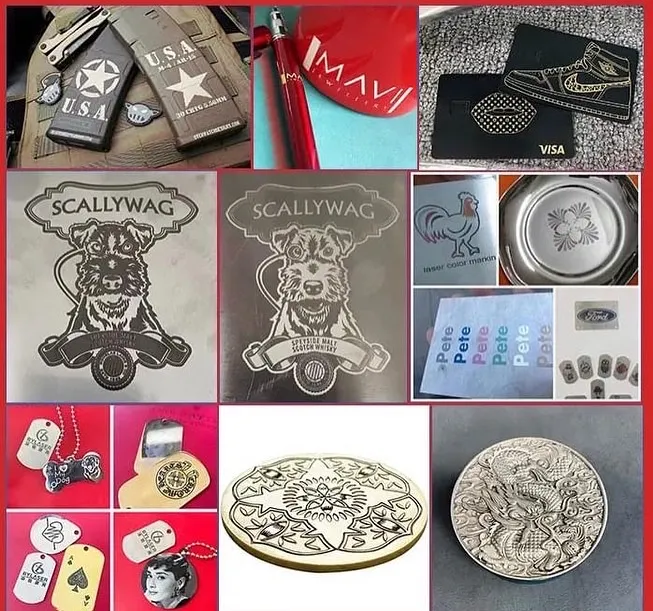

Application Sample 1

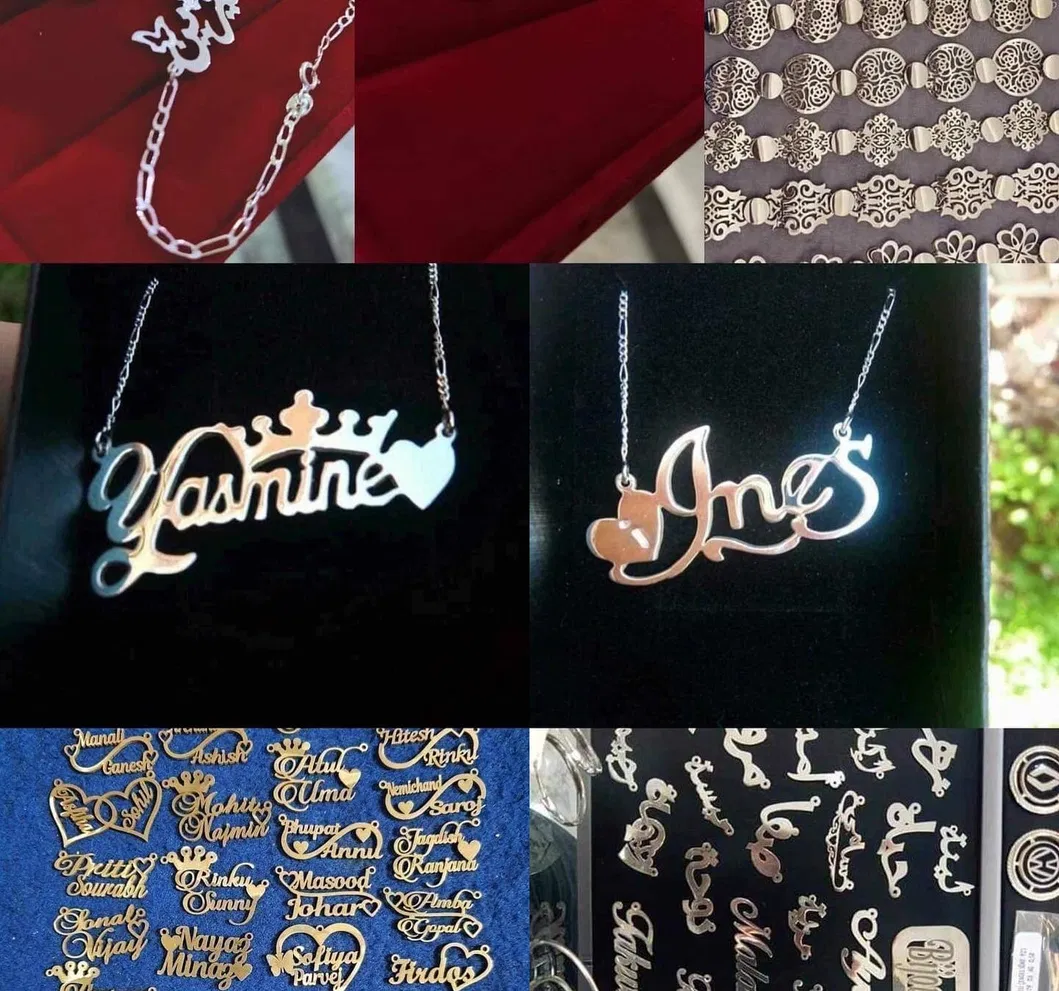

Application Sample 2
Application Sample 3
🏭 Production Facility
Factory View 1

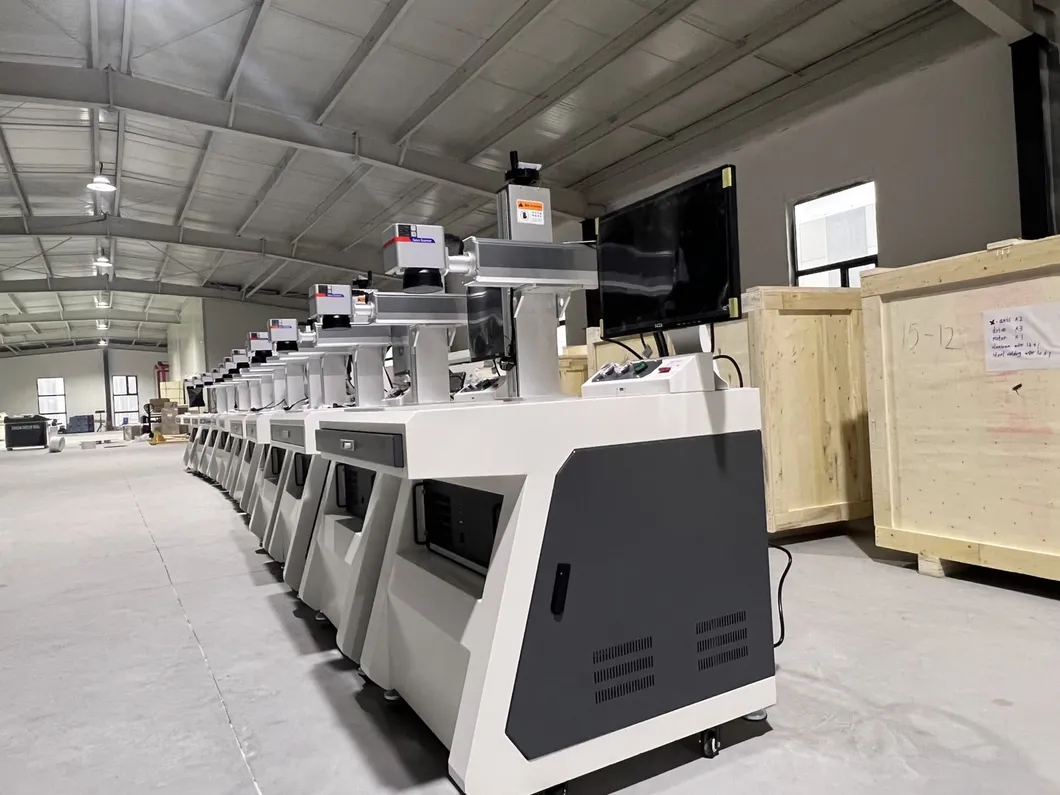

Factory View 2

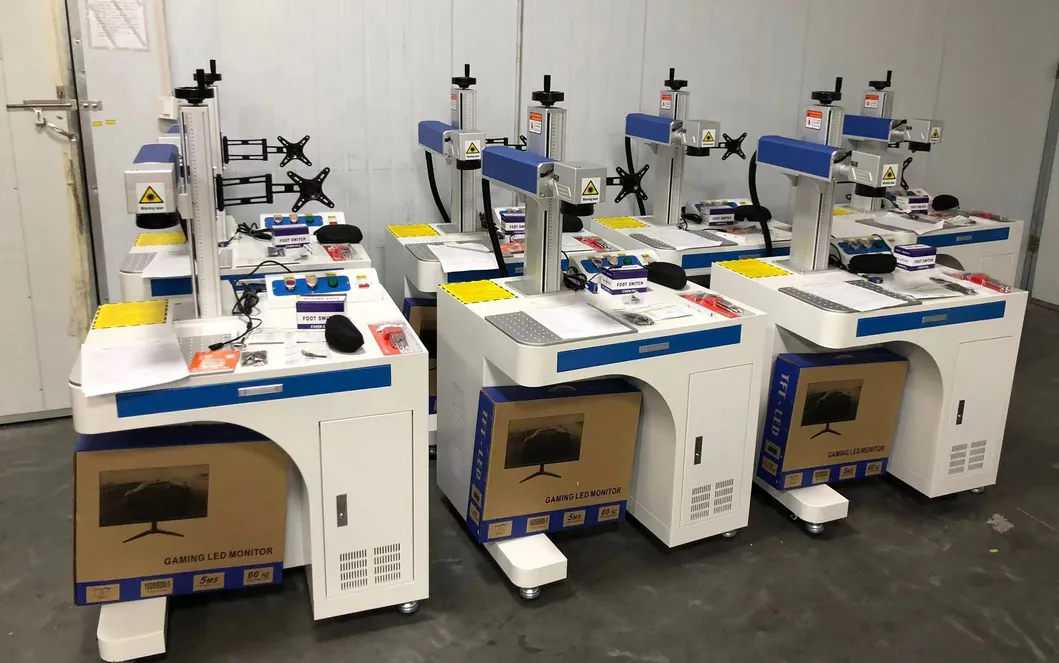

Production Line

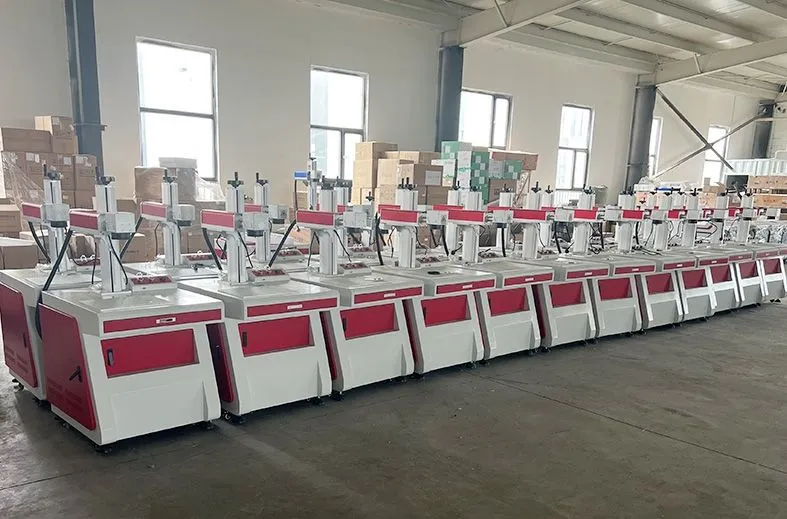

Testing Area
📦 Packaging & Service

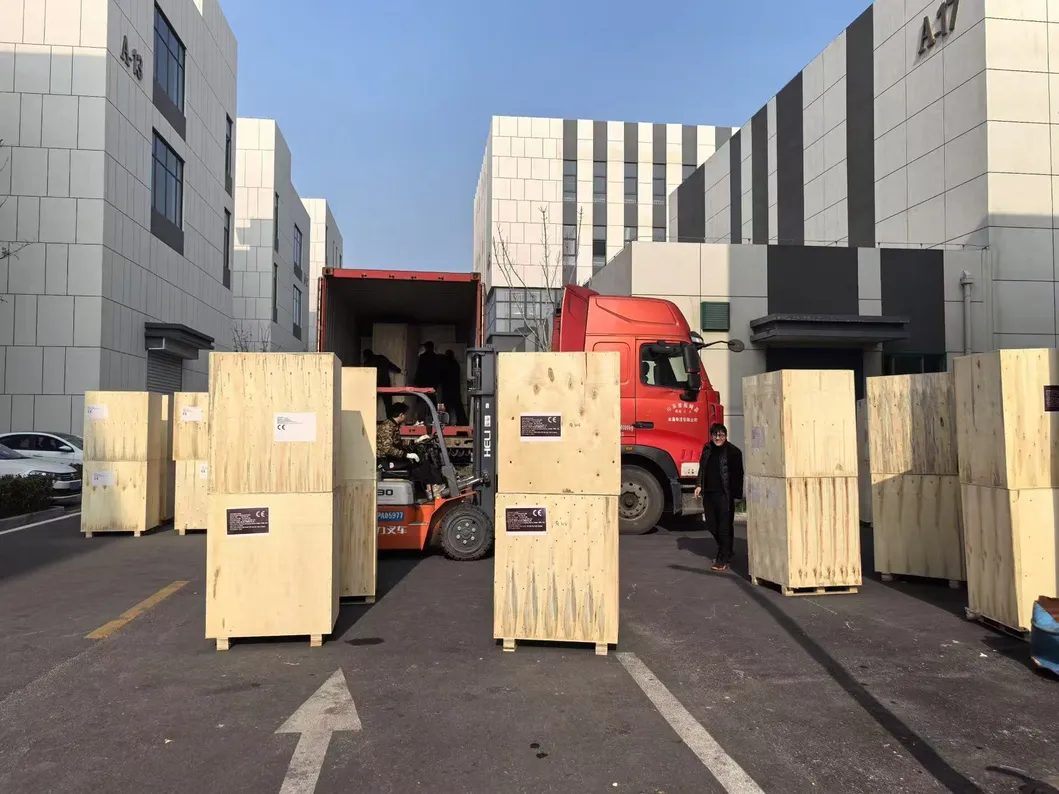

Wooden Box Packaging
Safe Shipping
Service Certificate 1
Service Certificate 2
FAQ
Q1: What materials can the fiber laser marking machine process?
A: It is primarily designed for metals like stainless steel, carbon steel, copper, and aluminum. It can also mark certain high-hardness and brittle non-metal materials.
Q2: What is the expected lifespan of the laser source?
A: By using high-quality sources like Raycus, Max, or JPT, the laser source typically offers a long working life, often exceeding 100,000 hours.
Q3: Does the machine require complex maintenance?
A: No, the fiber laser marking machine is virtually maintenance-free. The air-cooling system and solid-state laser design eliminate the need for water changes or frequent alignment.
Q4: Is the software compatible with modern operating systems?
A: Yes, our machine uses the EZCAD control system which is fully compatible with Windows 10 and Windows 11, both 32-bit and 64-bit versions.
Q5: How accurate is the marking?
A: The machine offers extreme precision with a working accuracy of 0.001mm and a repeat accuracy of 0.005mm, suitable for intricate designs and small characters.
Q6: What is the cooling method used?
A: The system utilizes a built-in air cooling mechanism, which is efficient for heat dissipation and keeps the machine compact and easy to move.
