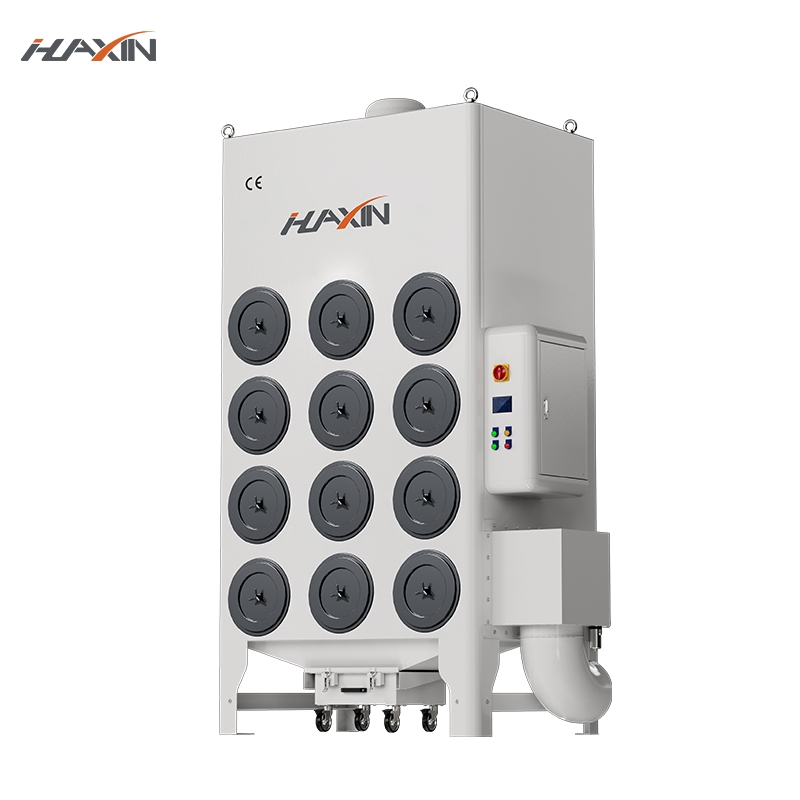

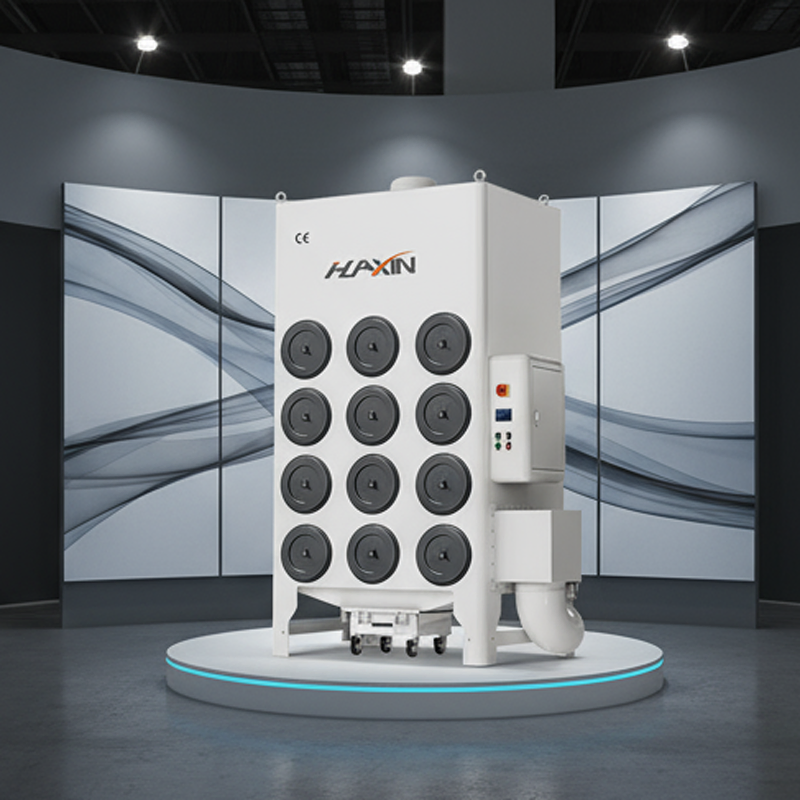

High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
1 / 5
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System
High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System

High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
HXHJ-JG12
Operation Type
Automatic
Material
Chemical Synthetic Fiber
Method
Dry Collecting
Type
Filter Cartridge Collector
Power
15kw
Voltage
380V/400V/415V/220V
Application
Welding/Soldering/Lasering
Cleaning
Full-Automatically
Filtration Area
156m2
Accuracy
99.99%
Filter Size
0.3um
Weight
910kgs
Dimensions
1800*1200*3300mm
🚀 Product Description
Industrial Dust Collector

Ideal for Capturing:

  • Welding Fumes & Grinding Dusts
  • Dry Dusts & Soldering Dusts
  • Industrial Powders & Polishing Residue
  • Laser and Plasma Cutting Emissions

Key Features:

  • High Capacity: 1000~50000 m³/h air volume range.
  • Safety: Integrated Spark Trap for advanced protection.
  • Efficiency: Auto-Pulse Clean technology for continuous operation.
  • Low Noise: Equipped with sound isolation box and eliminator.
  • Customization: Expertly crafted pipeline systems tailored to site conditions.

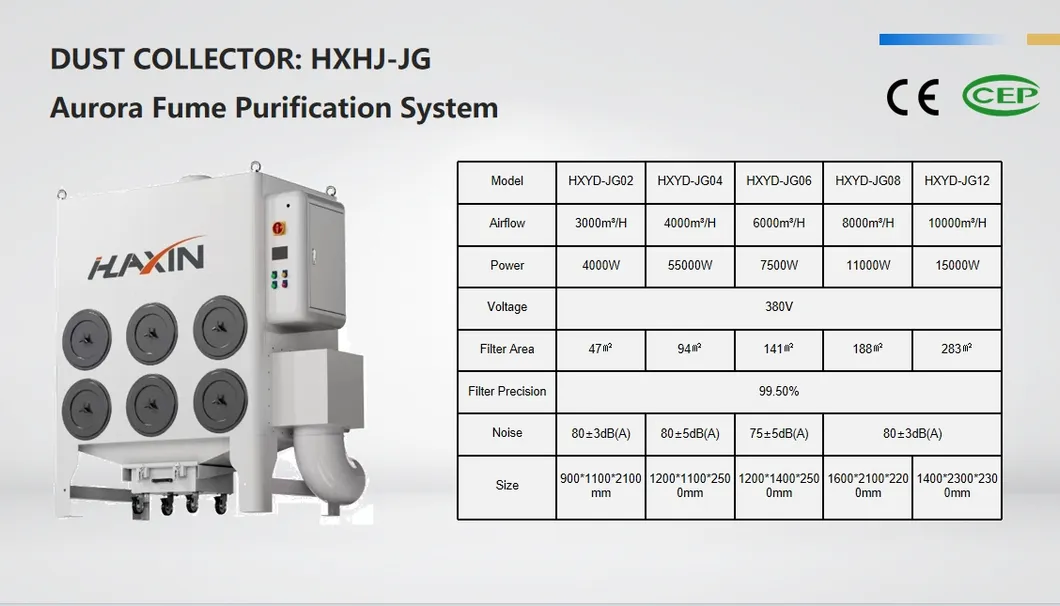

📊 Technical Parameters

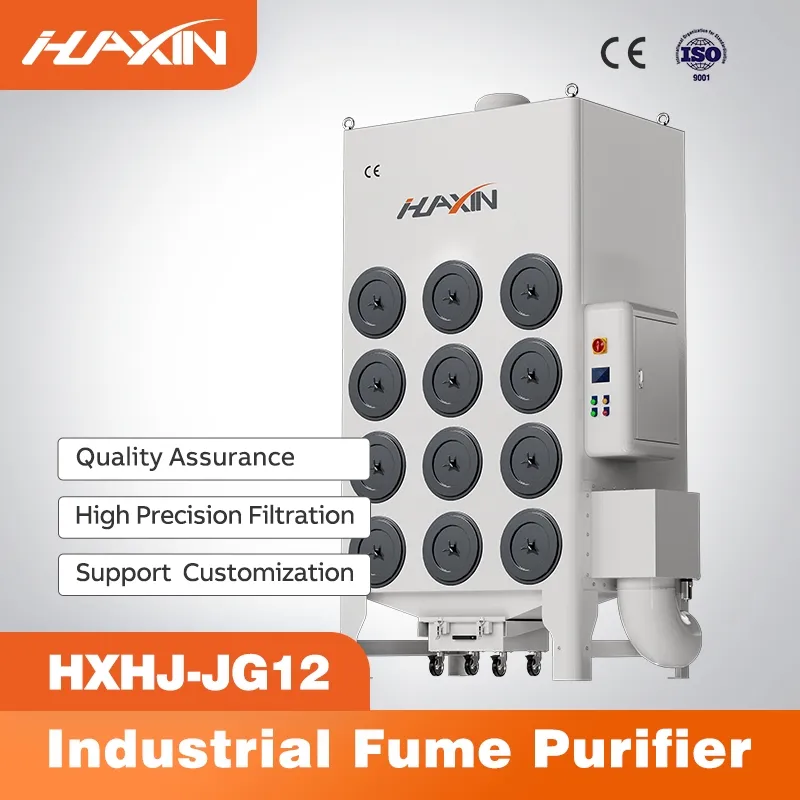

Parameter Image 1

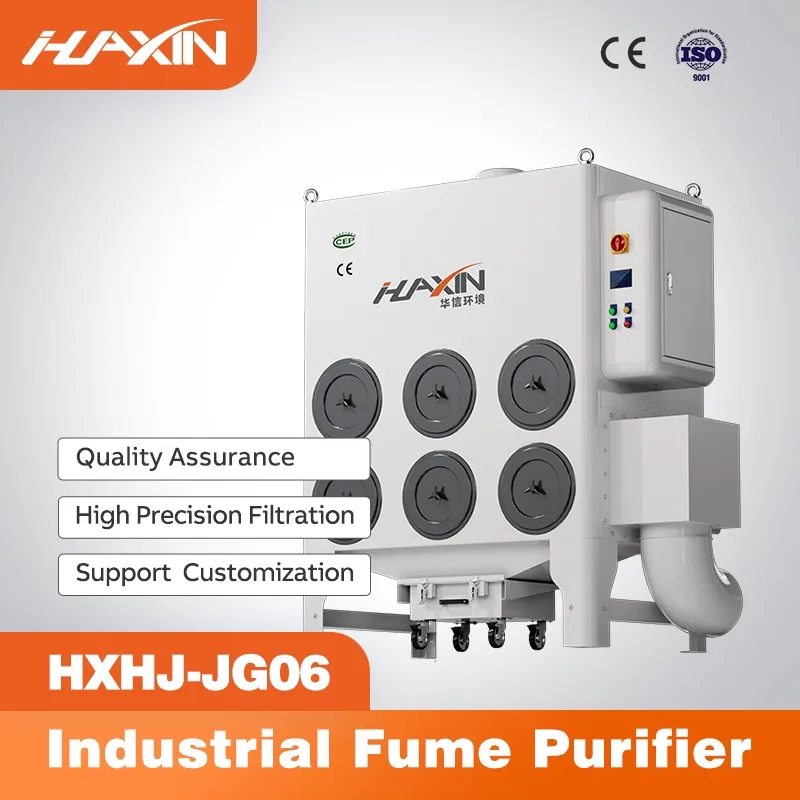

Parameter Image 2

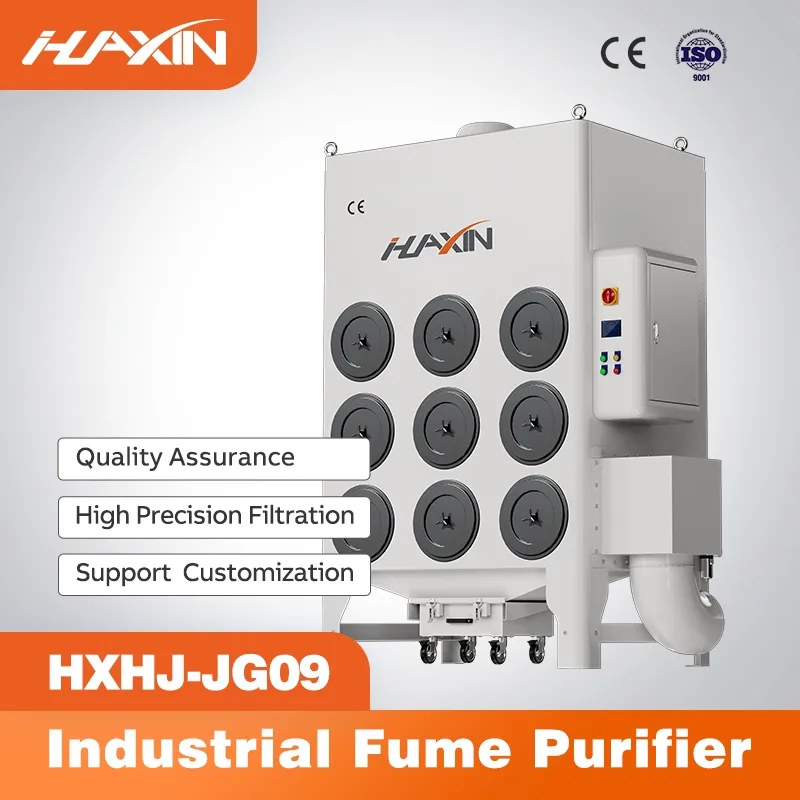

Parameter Image 3
Model Range Airflow (m³/h) Power (kW) Voltage (V) Filter Area (m²) Precision Noise (dB) Size (mm)
JG04-JG12 Series 4000 5.5KW 380V-415V
50/60Hz		 94 99.50% 82 1300*940*2200
6000 7.5kW 140 99.50% 83 1800*1050*2200
9000 11kW 188 99.50% 84 1800*1100*2820
10000 15kW 284 99.50% 85 1800*1200*3300
⭐ Our Advantages

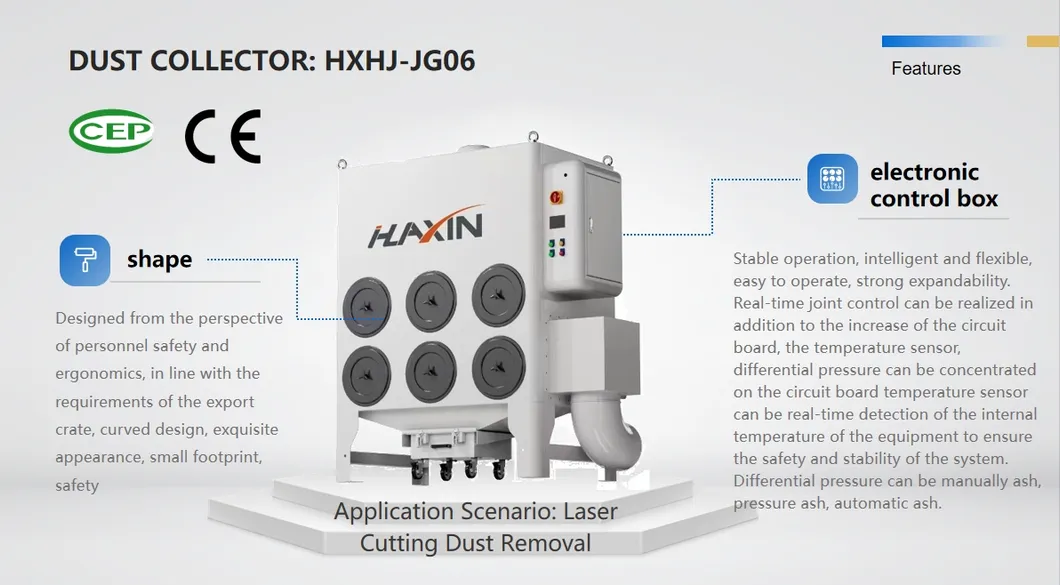

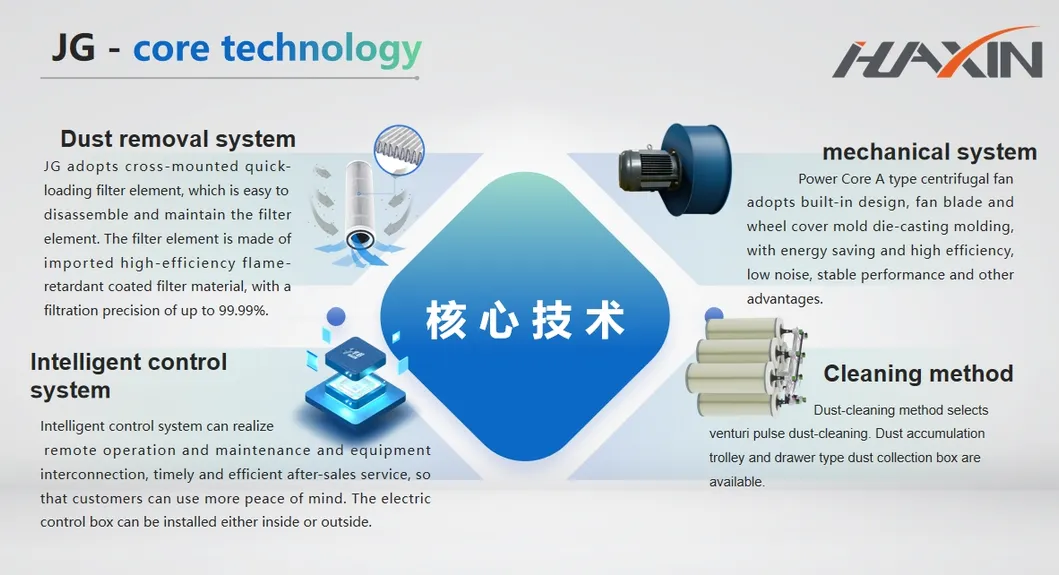

Advantage 1

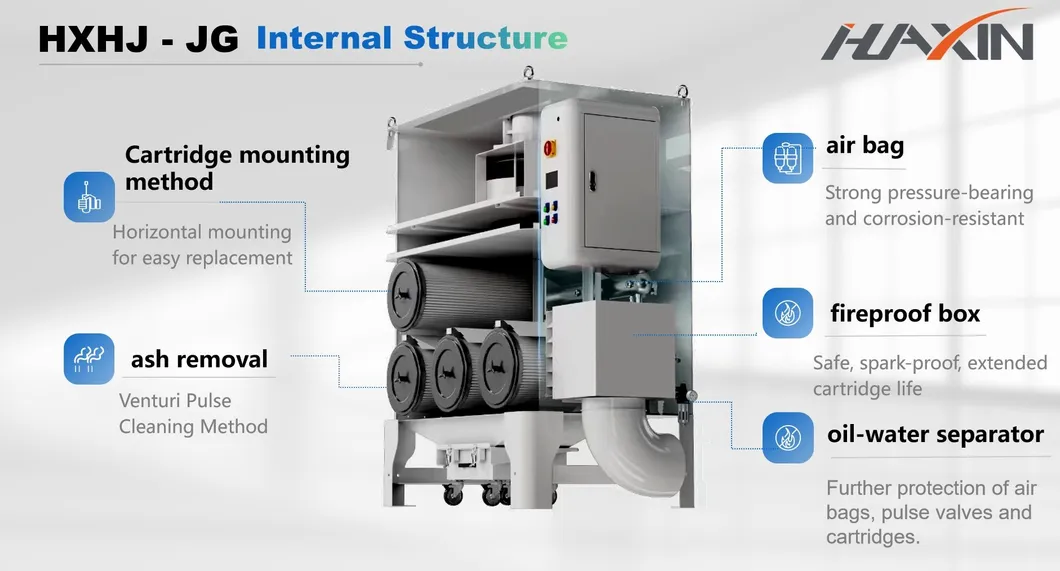

Advantage 2
Advantage 3
Advantage 4

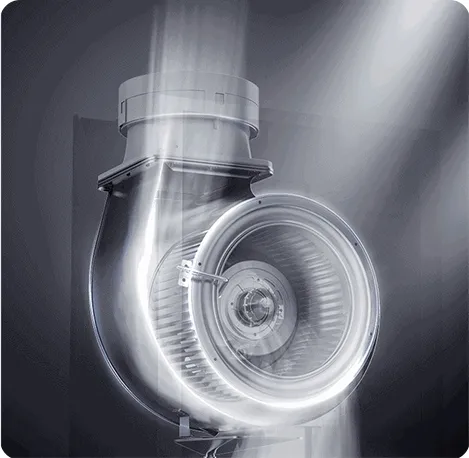

Advantage 5

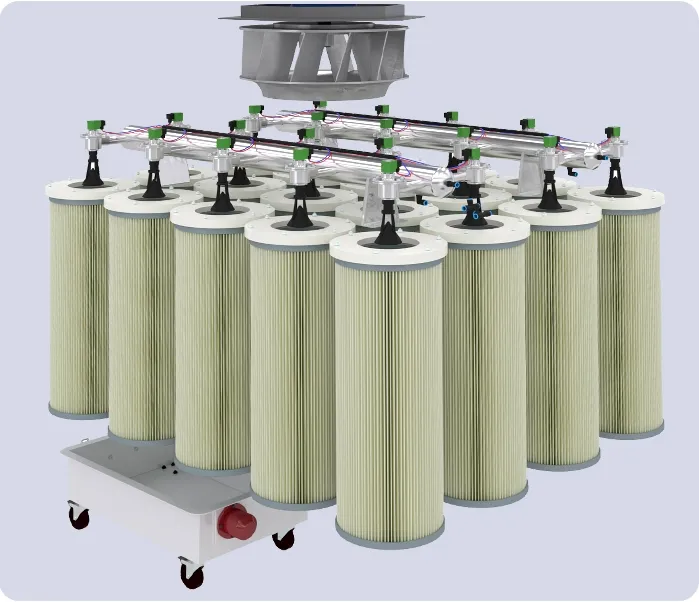

Advantage 6
📜 Certifications

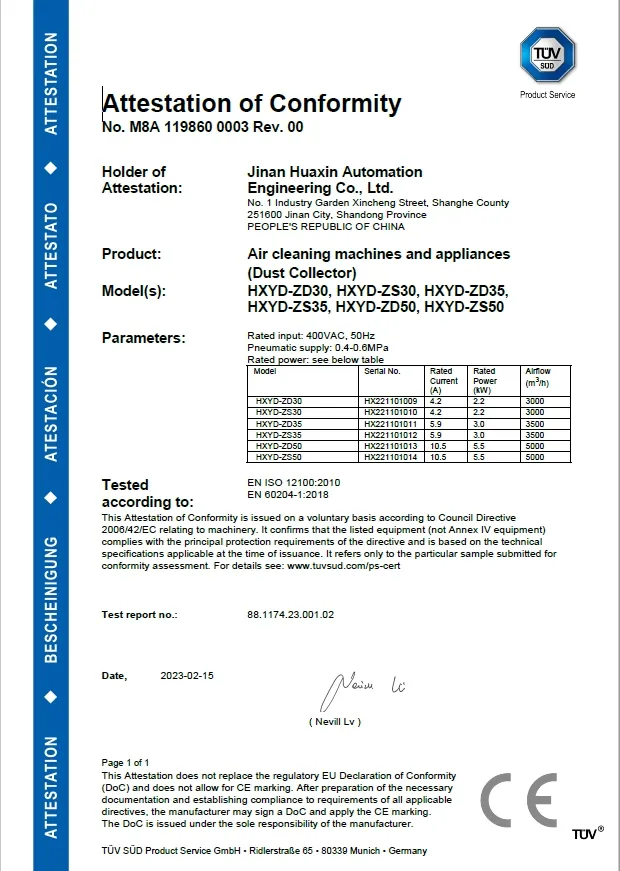

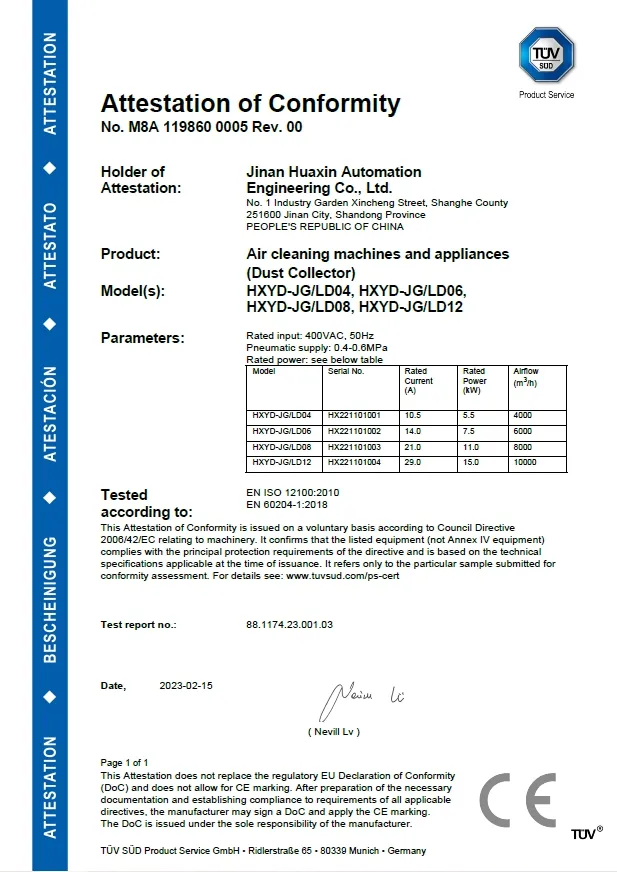

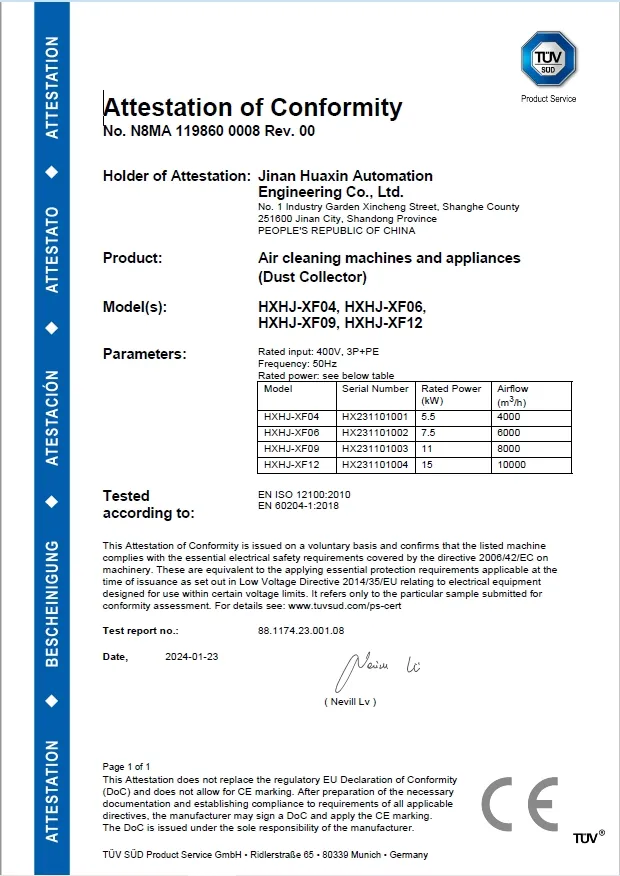

Cert 1
Cert 2
Cert 3

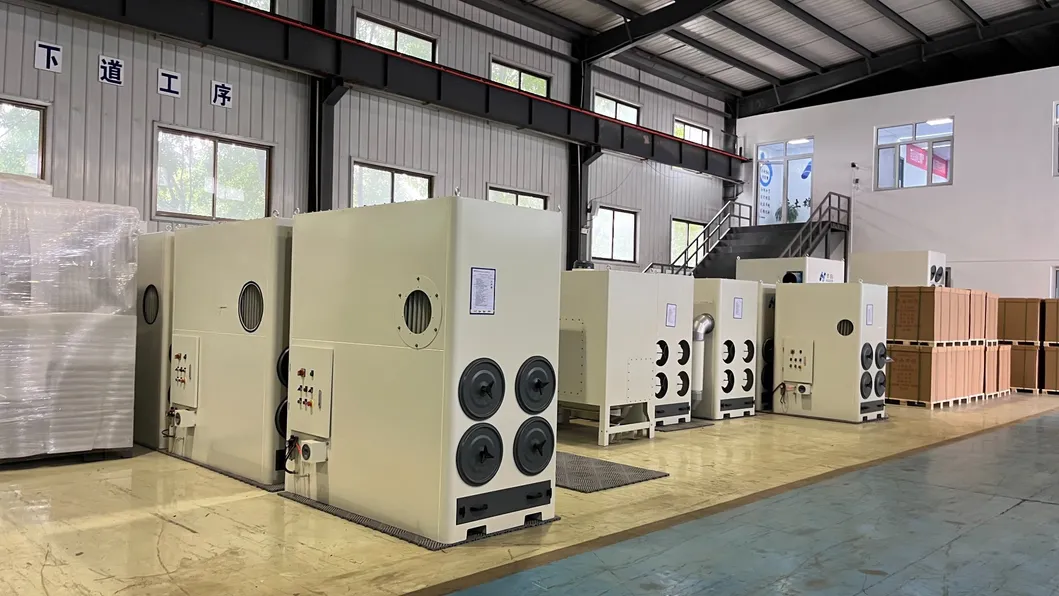

📷 Detailed Photos

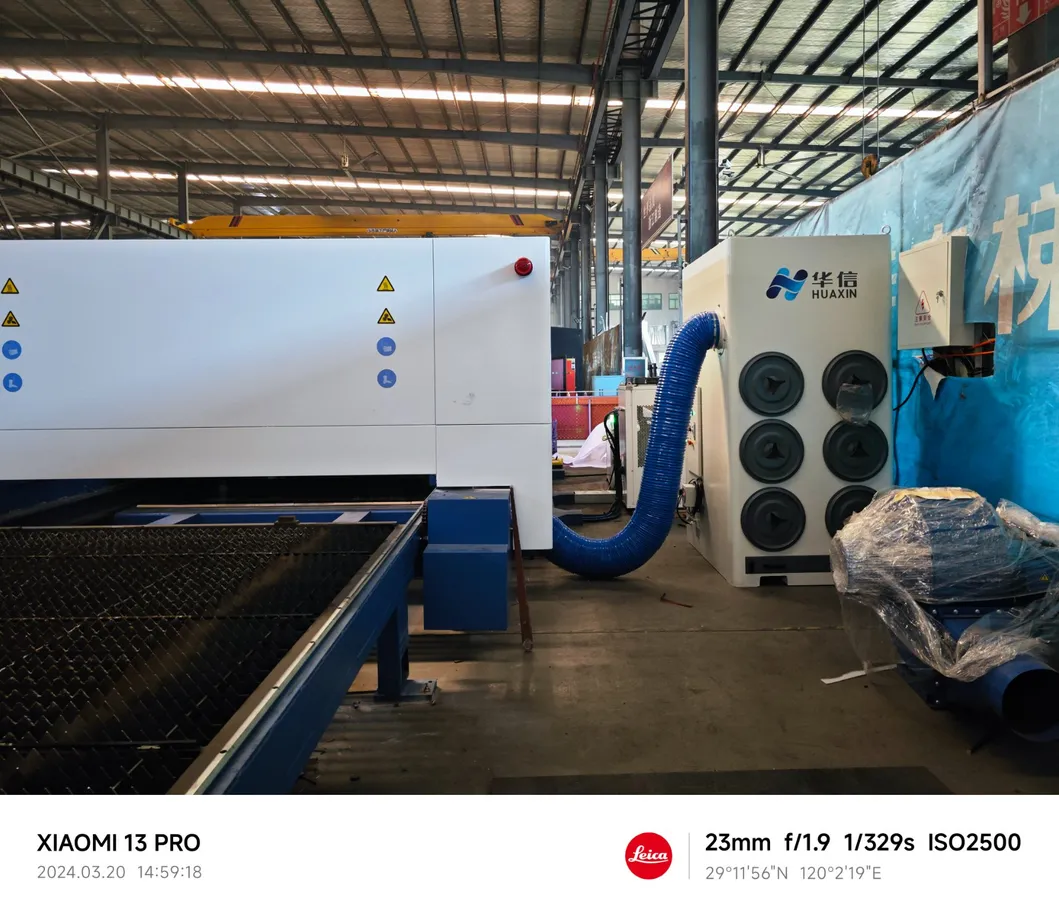

Detail 1
Detail 2

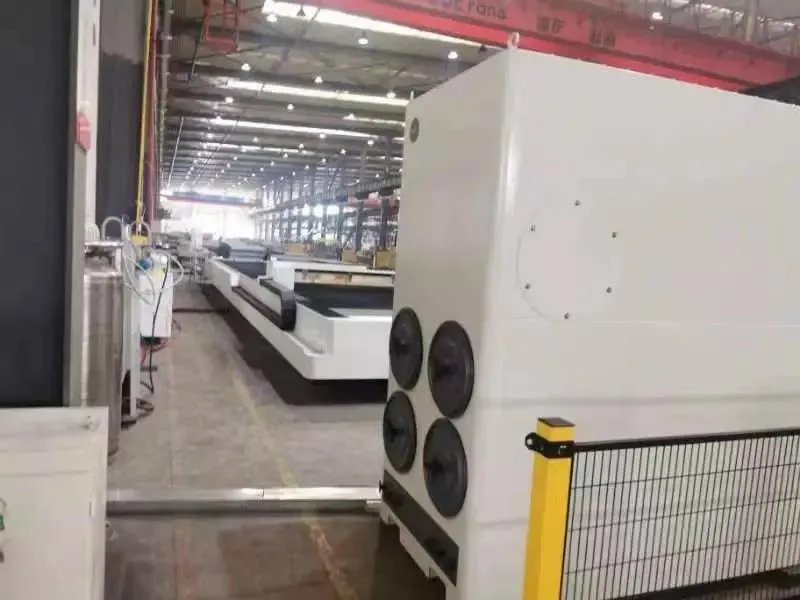

Detail 3

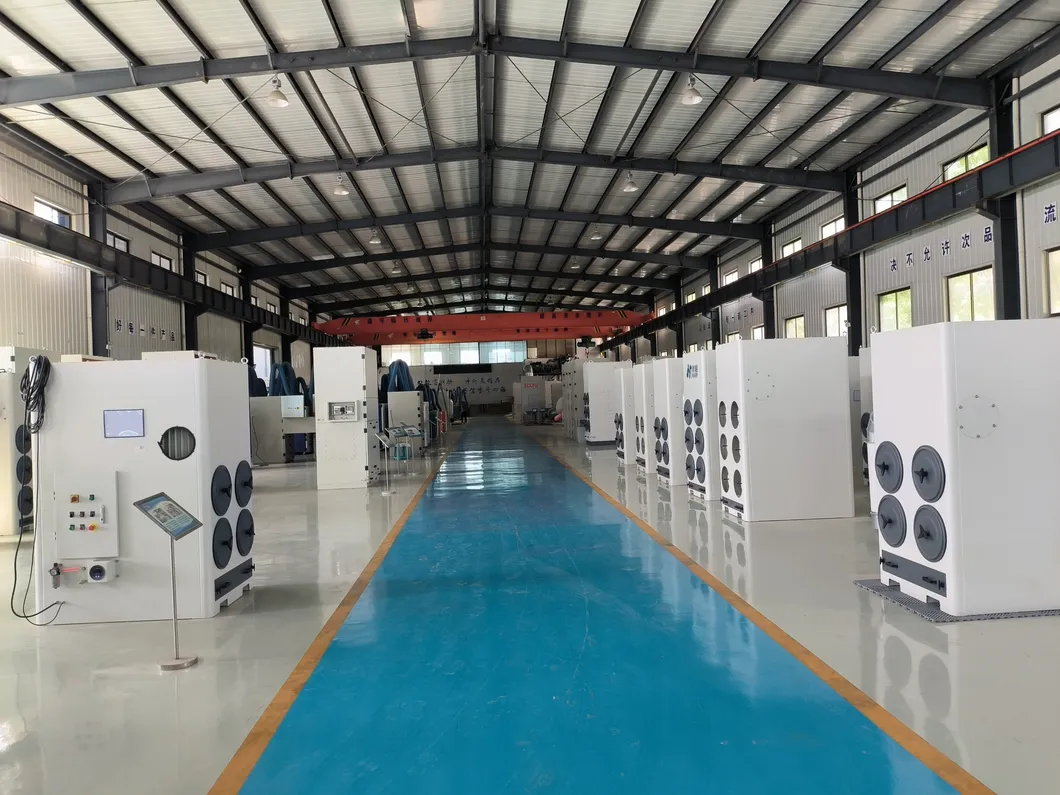

Detail 4
📦 Packaging & Shipping

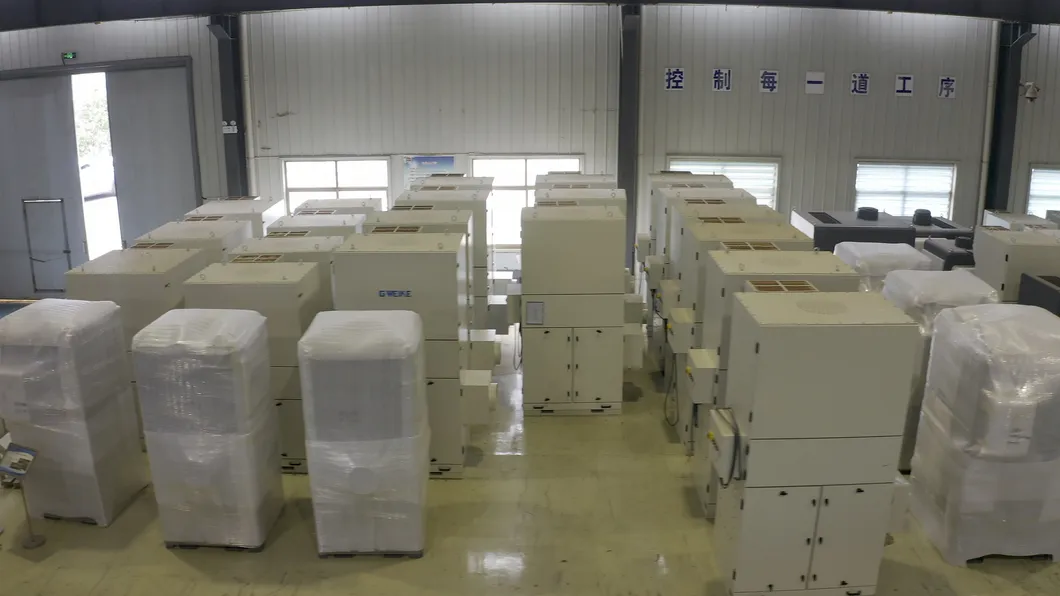

Package 1

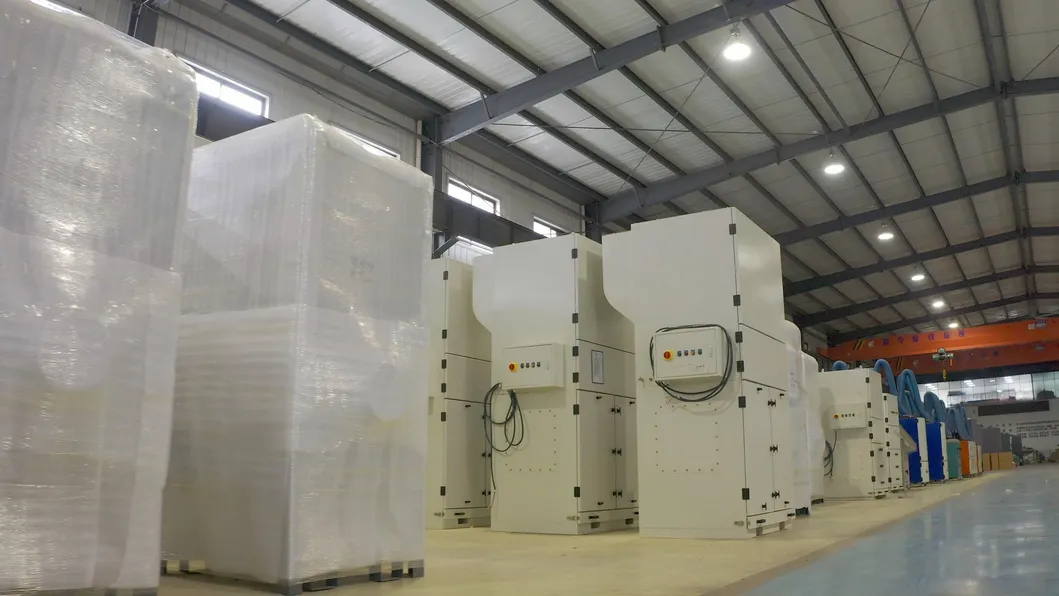

Package 2
Package 3
❓ Frequently Asked Questions
Q1: How do I determine the required air volume for my laser cutting machine? A1: Simply measure the diameter of the exhaust pipe at the bottom of your cutting platform and provide it to us. We can calculate the exact air volume required for your specific setup.
Q2: How does the system prevent fire from sparks during cutting? A2: We install specialized spark catchers (baffle or swirl types) using a labyrinth structure. This forces sparks to contact cold plates multiple times, extinguishing them before they reach the filter.
Q3: Is a chimney or external venting required? A3: No external chimney is needed. Our high-precision filter material captures 99% of dust down to 0.3Um, allowing the purified air to be discharged directly indoors safely.
Q4: What is the noise level during operation? A4: The units are equipped with high-quality sound insulation cotton and noise eliminators to ensure they do not produce excessive noise in the workshop.
Q5: Can the product be customized for OEM or ODM requirements? A5: Yes, we provide full OEM and ODM services. We can manufacture products under your brand name and adjust sizes or technical specifications to meet your specific requirements.
Q6: What is the warranty and after-sales support? A6: We offer a one-year warranty. Maintenance is free during this period, and after the warranty expires, we only charge for the cost of replacement parts.
