Advanced Industrial Purifier System for Laser Welding Dust Fume Extractor

1 / 5

Advanced Industrial Purifier System for Laser Welding Dust Fume Extractor

Customization:	Available
Certification:	CE, ISO
Installation Method:	Horizontal

Send Inquiry

Product Description

Basic Information

Model NO.

EHI

Operation Type

Automatic

Medium Material

Metal Fiber

Dust Collecting Method

Half Dry

Type

Filter Cartridge Dust Collector

Air Volume

2000m3/H to 10000m3/H

Filter Cartridge

Cellulouse Flam Retardant

Power

5.5kw/7.5kw/11kw

Pulse Valve

Goyen/Waverton/Df

Origin

China

Production Capacity

5000

📦

Packaging & Delivery

Package Size

1200.00cm * 800.00cm * 1100.00cm

Gross Weight

560.000kg

Transport Package

Plywood Packing

★

Product Description

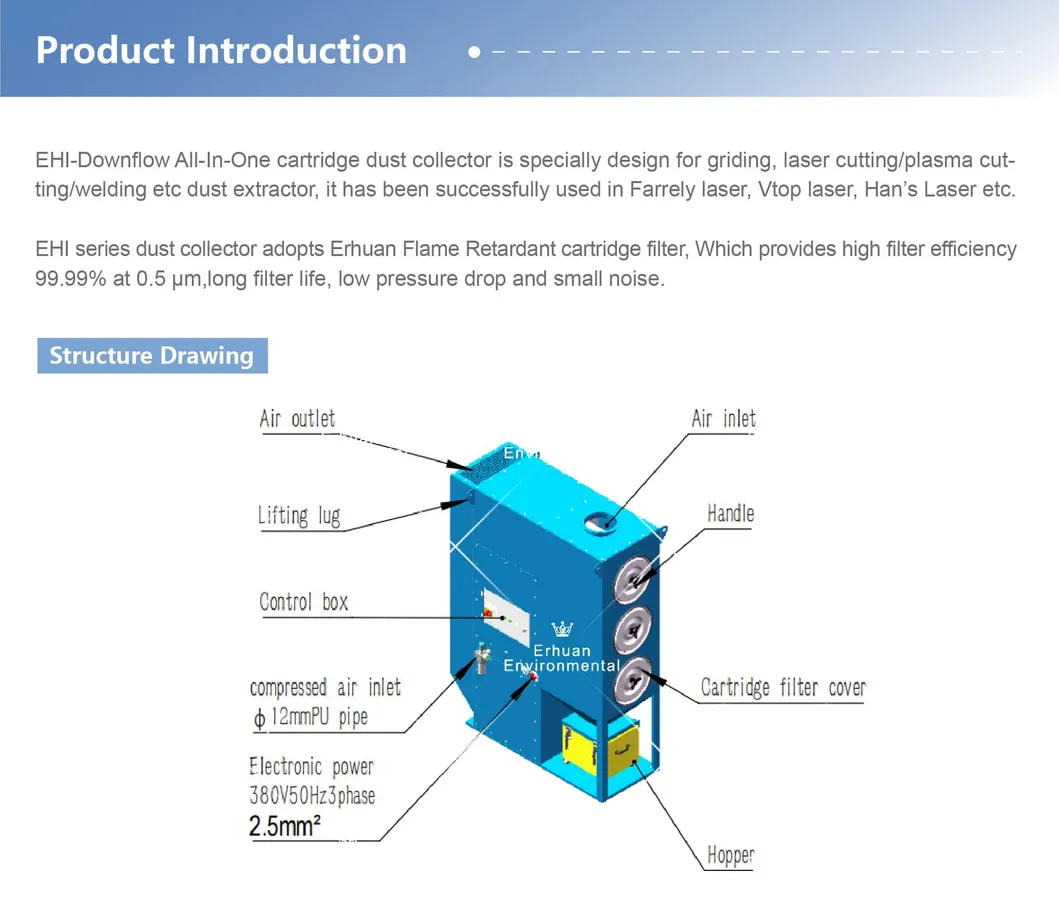

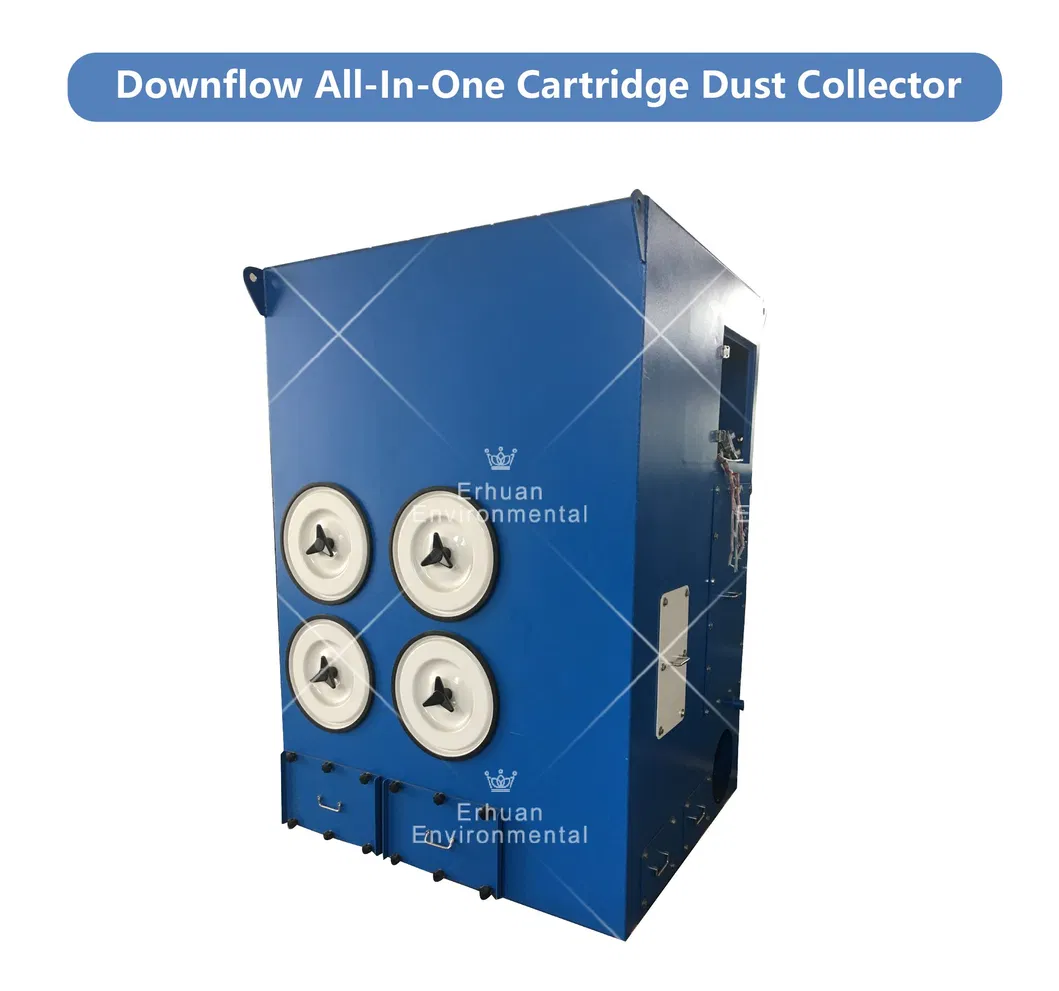

Downflow All-In-One Cartridge Dust Collector, Downdraft Table, Dust Extractor, Fume Dust Collector, Vacuum Cleaner, Air Filter.

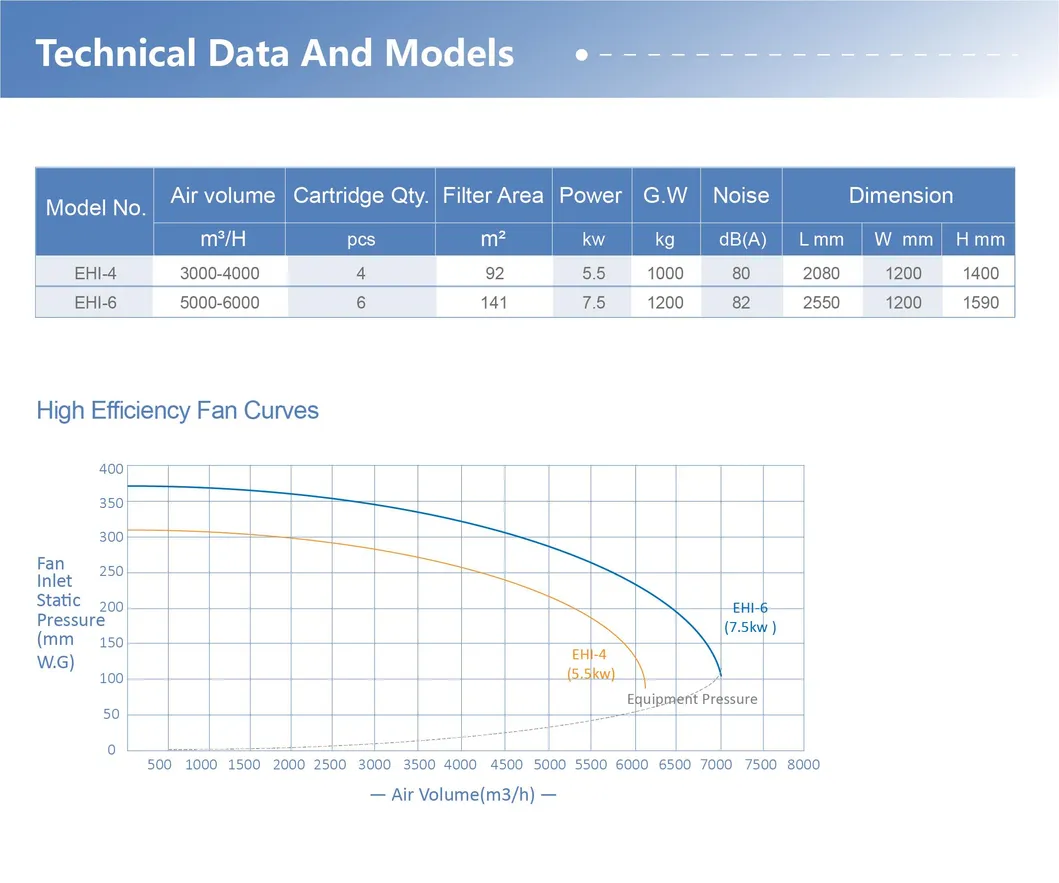

Model No.	Air Volume	Cartridge Qty.	Filter Area	Power	G.W	Noise	Dimension (mm)
Model No.	m3/h	pcs	m2	kw	kg	dB(A)	L	W	H
EHI-4	3000-4000	4	92	5.5	1000	80	2080	1200	1400
EHI-6	5000-6000	6	141	7.5	1200	82	2550	1200	1590

Frequently Asked Questions

How is the price determined for the dust collector?

The price is based on your requested technical data, such as air volume, application, and configuration. Different models have different prices. Please provide your detailed technical requirements or photos for a specific quote.

What payment methods are accepted?

We accept most payment methods, primarily focusing on T/T, L/C, and Western Union.

What is the warranty period for your products?

Our officially promised warranty time is one full year after delivery.

What is the typical delivery timeframe?

Delivery depends on order quantity and complexity. Generally, shipment occurs 4 weeks after deposit for standard 380v/50hz/3phase fans. For special electric requirements, delivery is within 6-8 weeks.

Can I have my own logo on the machine?

Yes, we support customized logo services. Please note that this is an extra service and may involve a small additional fee.

Do you offer custom product design based on specific needs?

Absolutely. We have a dedicated product design team to meet your personal customization requirements and technical needs.
