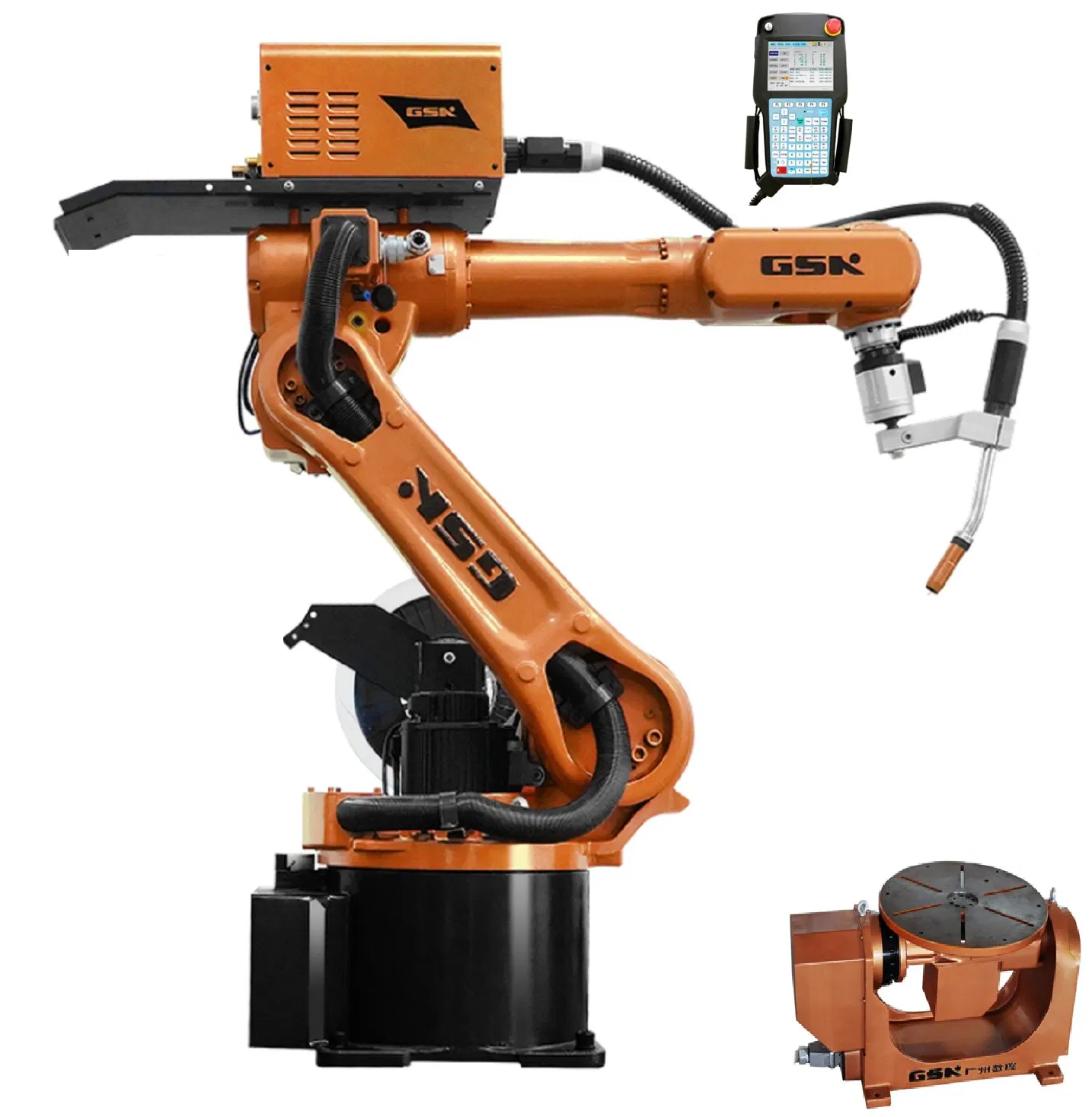

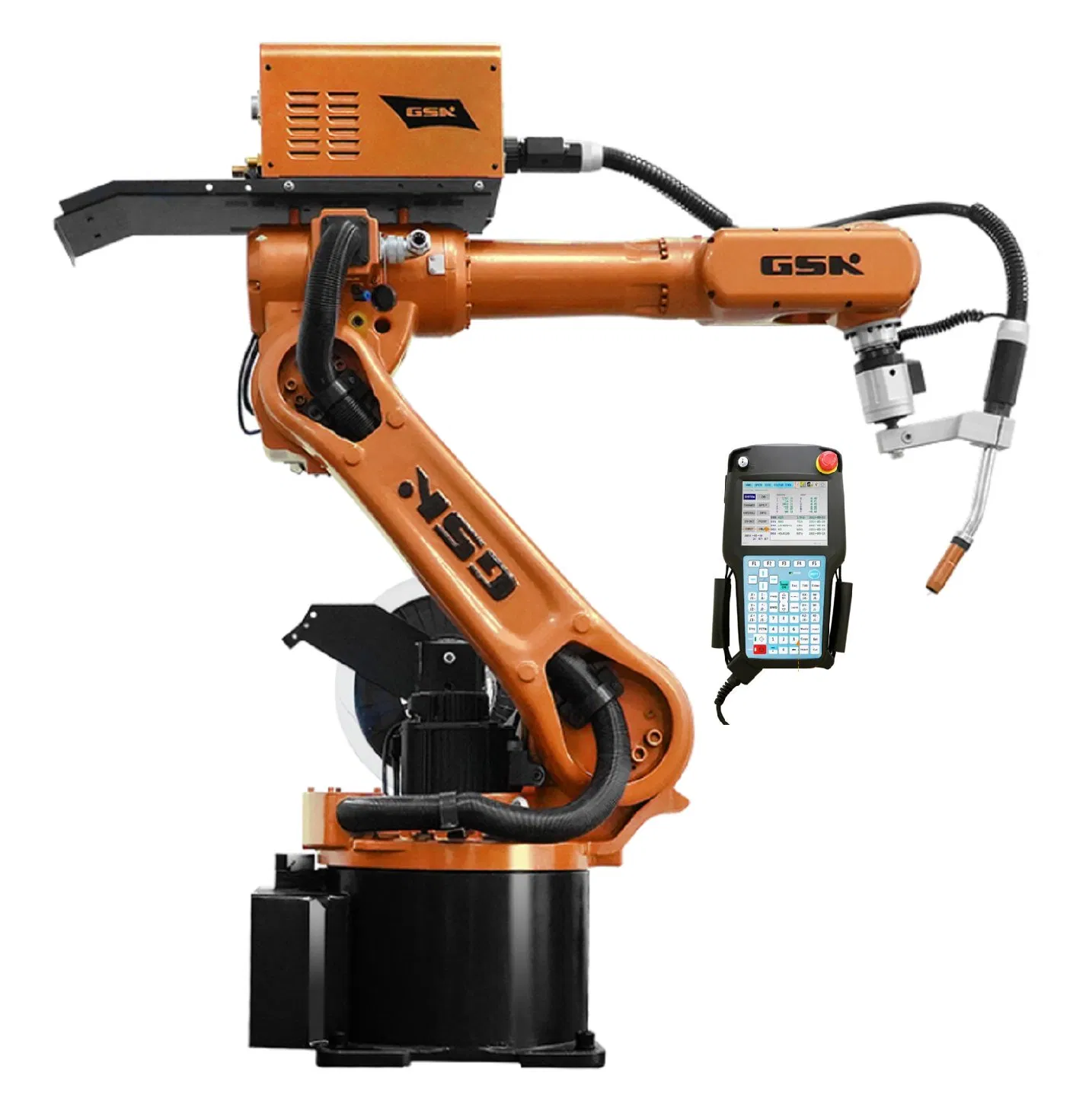

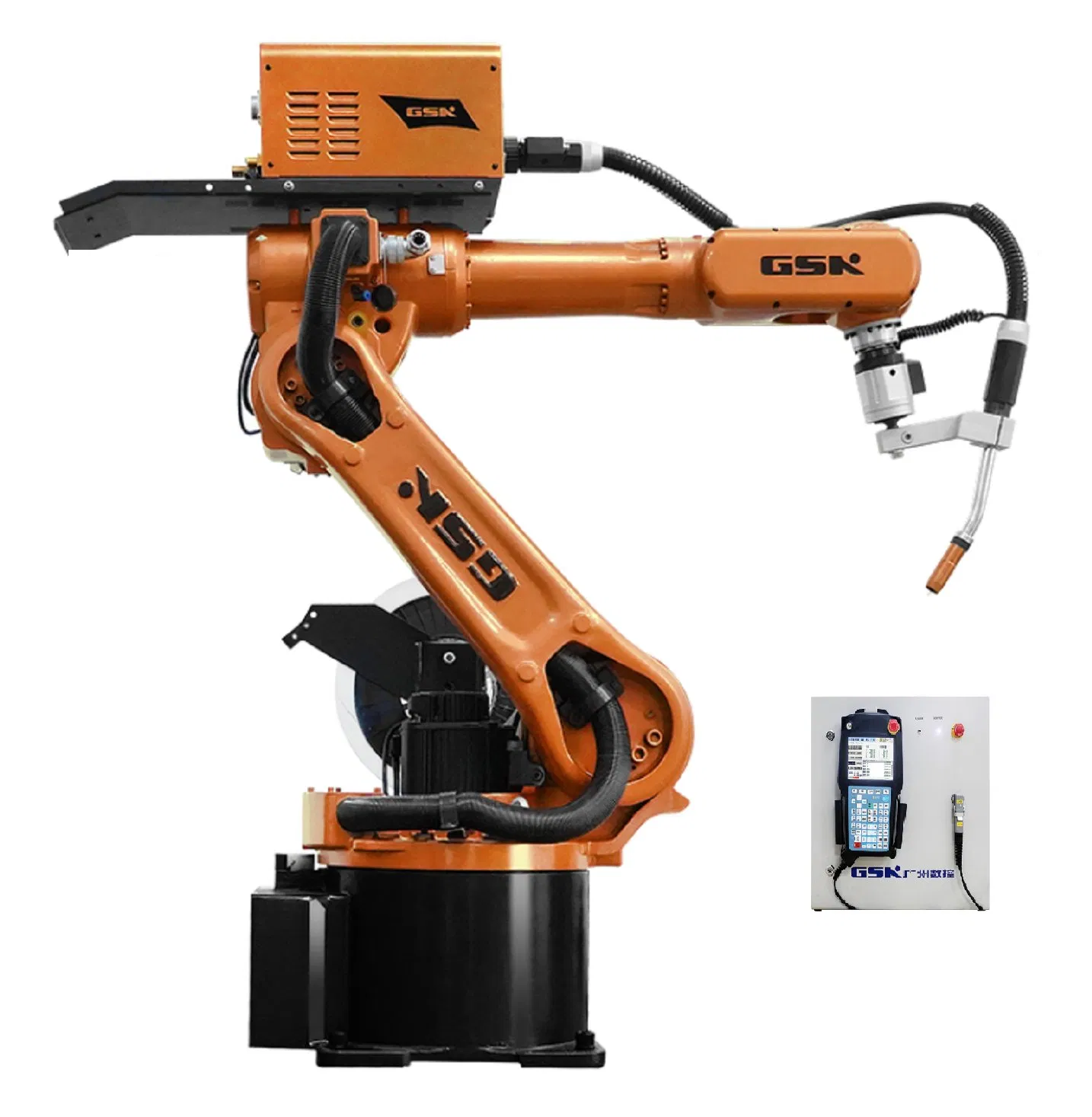

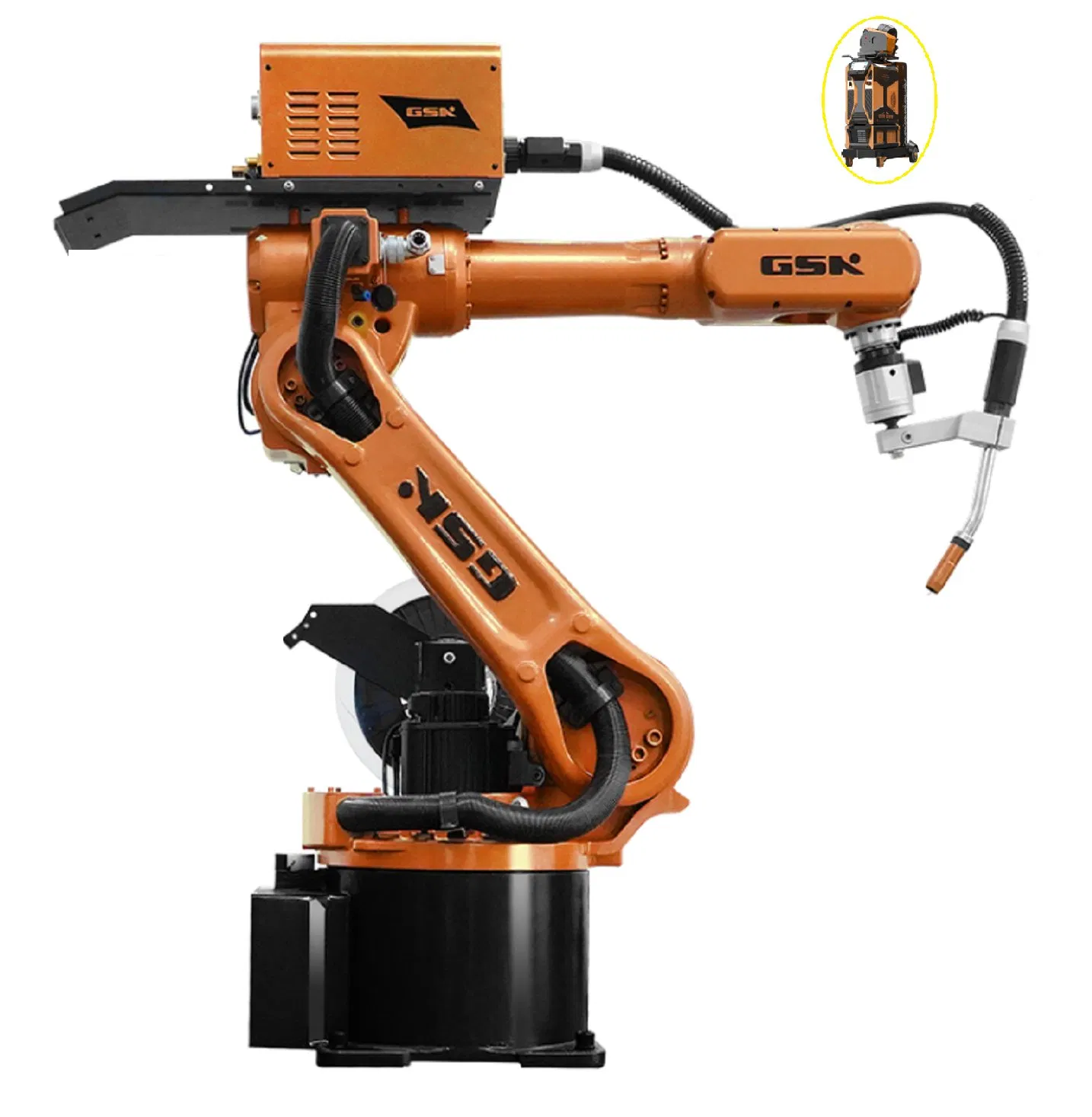

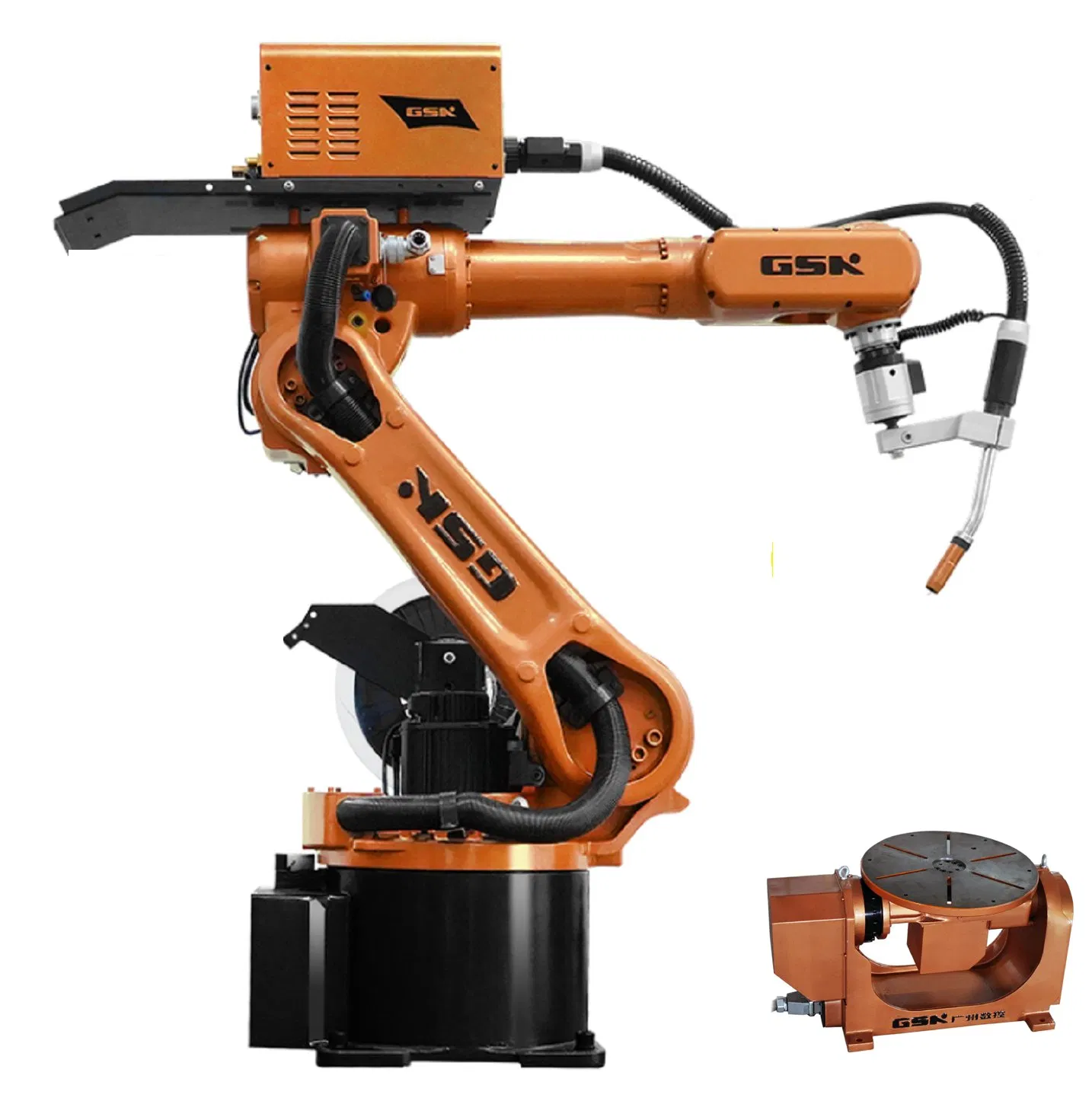

6 Axis CNC Industrial Automatic Welding Robot
This high-speed industrial robot arm is widely utilized in the automotive, motorcycle, agricultural machinery, and hardware engineering fields. It provides a robust solution for automated laser and arc welding applications.
| Type |
Dof |
Payload (kg) |
Repeatability (mm) |

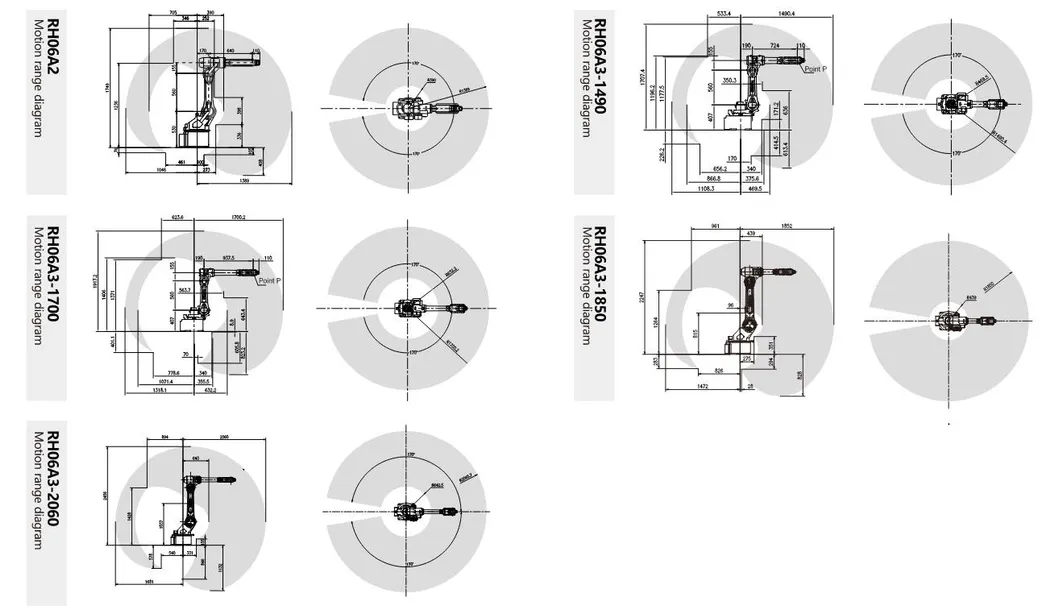

Motion Range (°) |
Top Velocity (°/s) |
Motion Radius |
Weight |
| J1 | J2 | J3 |
J1 | J2 | J3 |

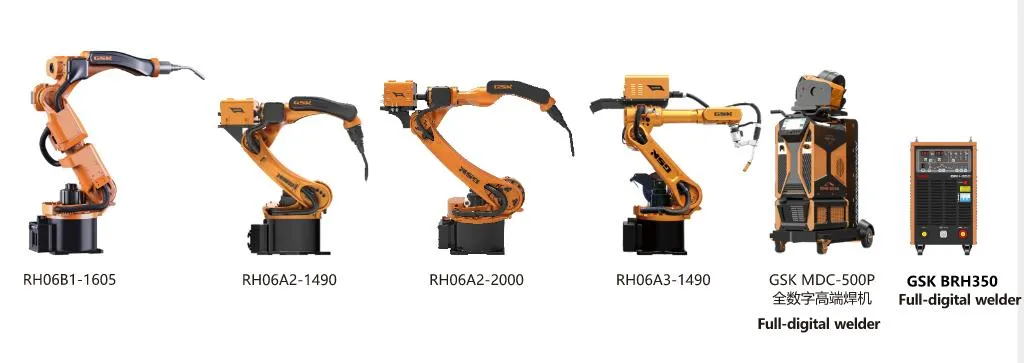

| RH06A2-1490 | 6 | 6 | ±0.05 | ±170 | +115~-80 | +80~-150 | 200 | 200 | 200 | 1490 | 190kg |
| RH06A3-1490 | 6 | 6 | ±0.05 | ±170 | +120~-85 | +83~-150 | 200 | 200 | 200 | 1490 | 185kg |
| RH06B1-1605 | 7 | 6 | ±0.05 | ±170 | +110~-70 | +80~-150 | 200 | 173 | 200 | 1605 | 215kg |
Advanced Control & Management Systems
Production Line Unit Control
- High-speed connection between CNC machines and industrial robots via specialized bus protocols.
- Supports both online and offline programming for maximum flexibility.
- Optimized for humanized operation to reduce labor costs and improve stability.

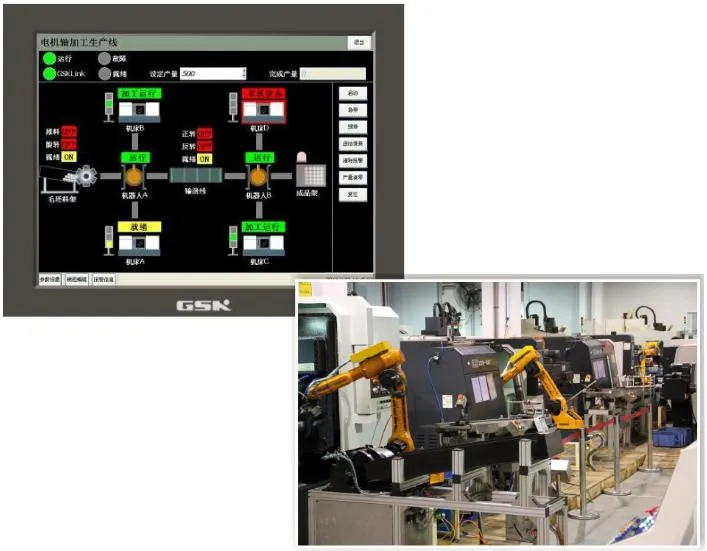

General Management System
- Designed for "Digitalized Factory" and "Intelligent Workshop" environments.
- Integrated CAM and CAPP application management.
- Real-time equipment utilization statistics and production flow monitoring.
Industrial Applications & Case Studies

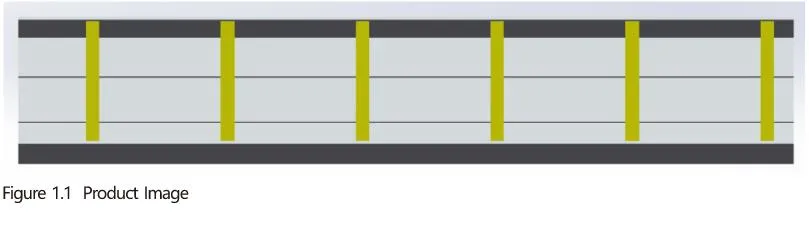

1. Aluminum Template Welding: Replaces manual labor with double-position alternating operation. Continuous production is guaranteed by automatic torch cutting mechanisms.

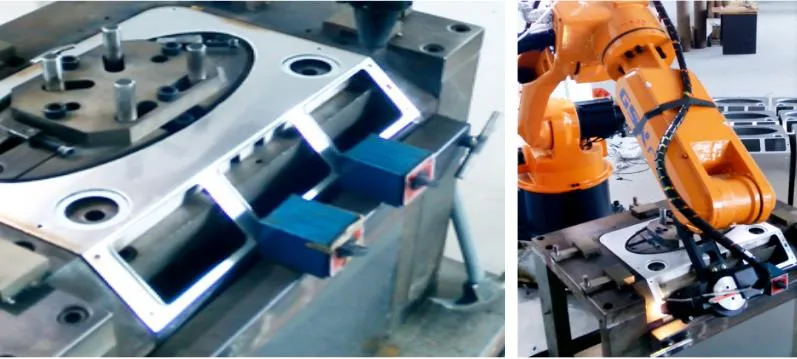

2. Laser Welding for Small Appliances: High-speed continuous welding for 0.6mm stainless steel sheets without deformation.

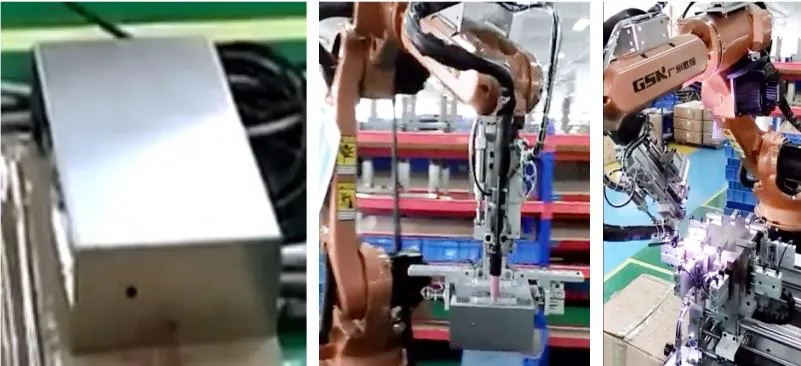

3. Electrical Industry TIG Welding: Automated loading, unloading, and rotating for full-automatic stainless steel welding.

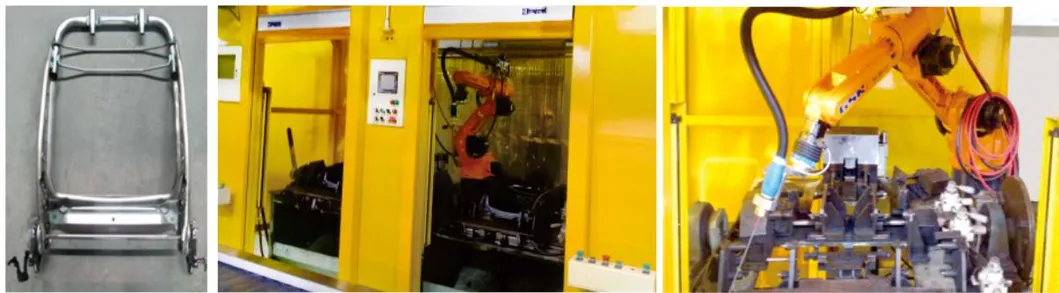

4. Automobile Accessory Fixtures: Multi-station layouts with safety light curtains to ensure zero interference and high device utilization.

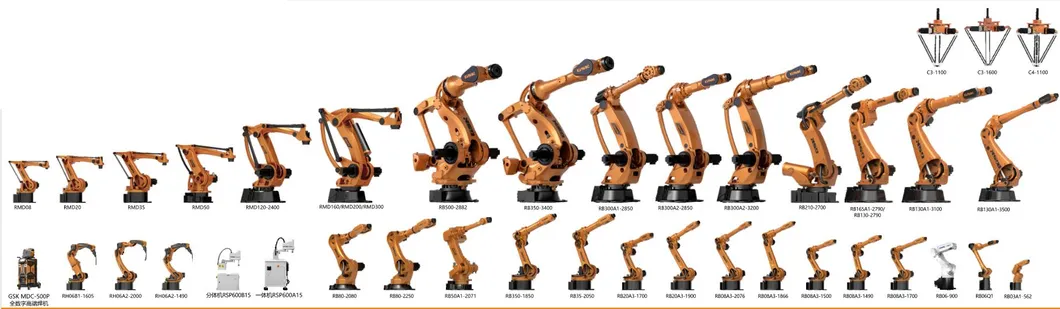

Industrial Robot Series
Leveraging over 30 years of R&D experience, our robot series covers transportation, welding, polishing, painting, stacking, and paralleling, comprising over 30 distinct product types.
Frequently Asked Questions
What is the repeatability of the RH06 series robots?
The RH06 series industrial robots feature a high precision repeatability of ±0.05mm, making them ideal for delicate welding tasks.
Can these robots be used for stainless steel welding?
Yes, they are highly effective for stainless steel sheets as thin as 0.6mm, ensuring minimal deformation and consistent bead forming.
What industries are these robots suitable for?
They are widely used in automotive, motorcycles, agricultural machinery, hardware, and small appliance manufacturing.
Does the system support laser welding equipment?
Yes, the robots can be equipped with optical fiber transmission laser welding machines for high-speed continuous operations.
How do these robots improve production safety?
Robots handle high-risk tasks involving high temperatures, smoke, and arc light, protecting workers and utilizing safety curtains in the workstation.
Is the programming suitable for non-experts?
The control systems feature simply humanized operation interfaces and support both online and offline programming.
