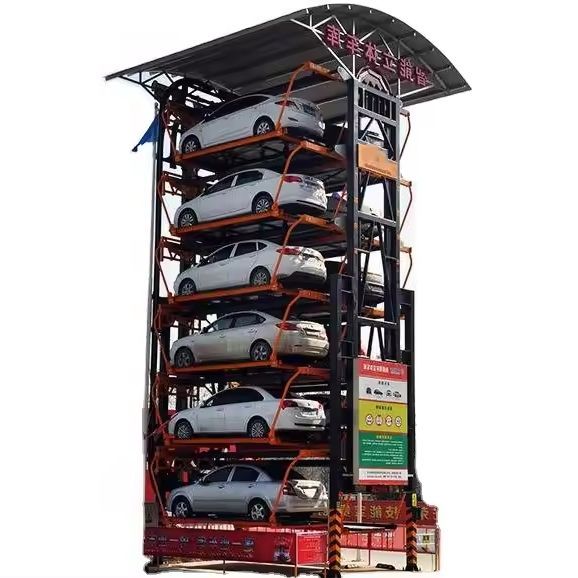

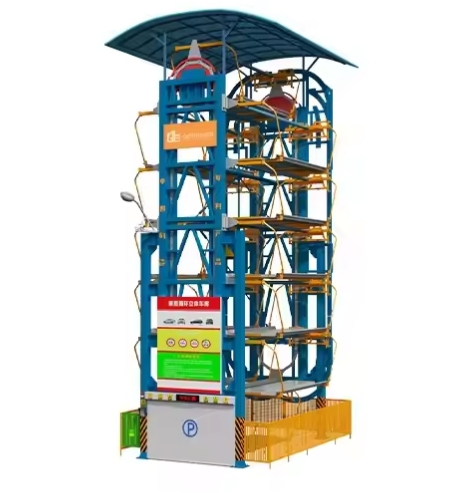

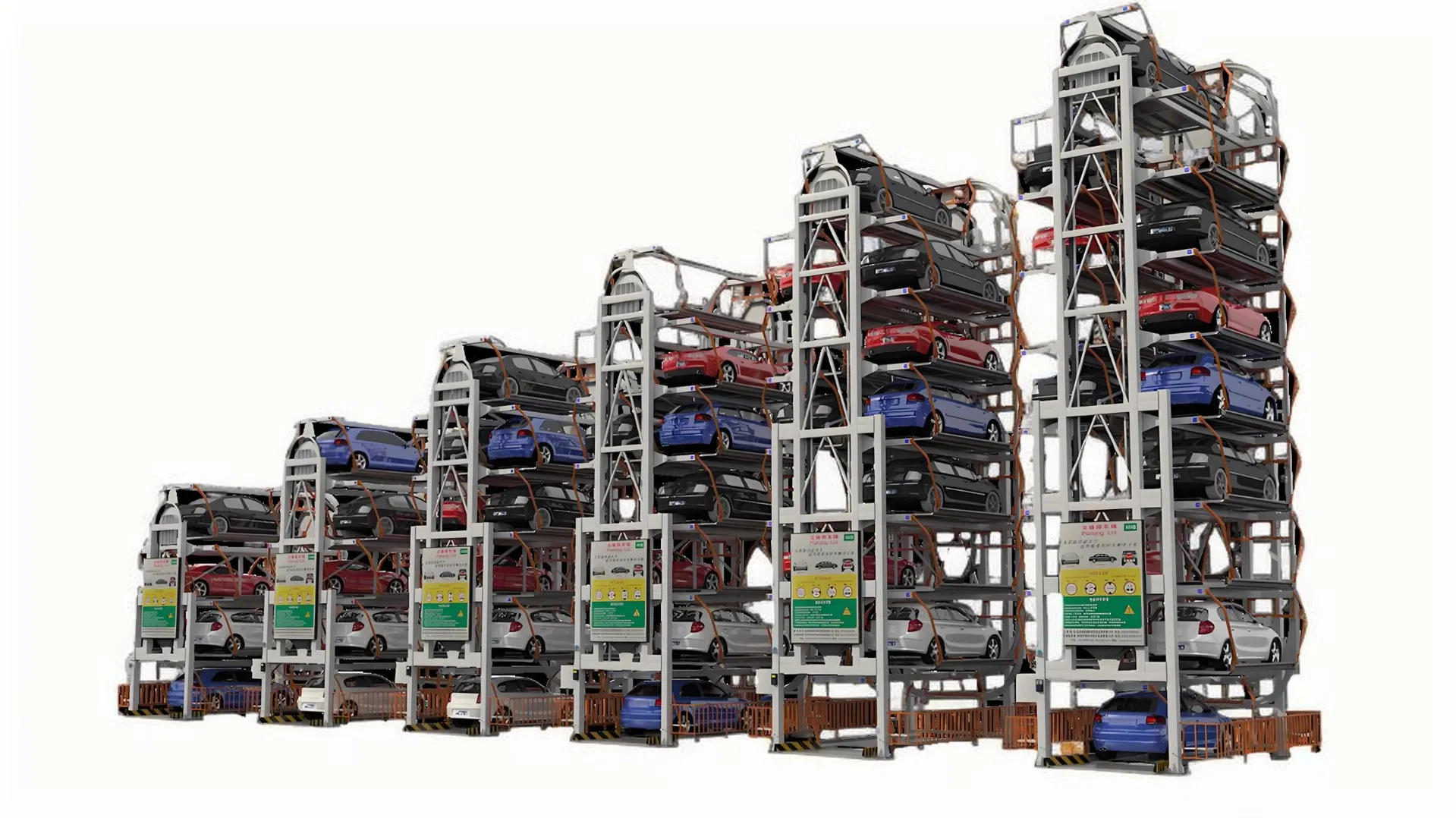

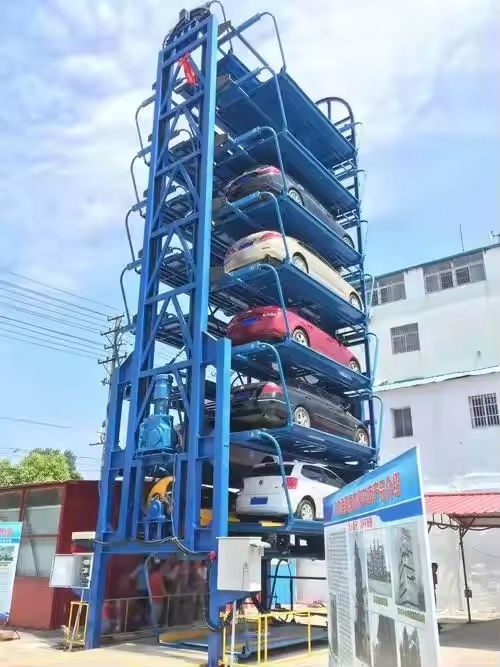

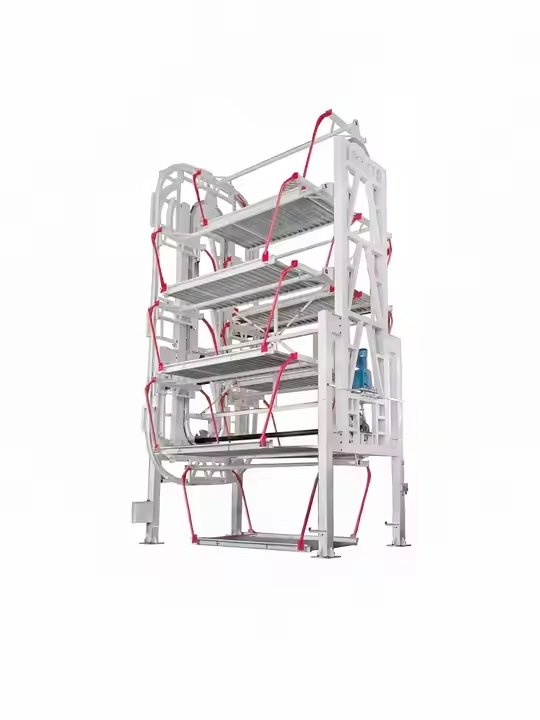

Smart Rotary Parking System for Car Storage Multilevel Car Parking System

Customization:	Available
Level:	5-9 Levels
Parking Post:	9-24 Posts

📊 Basic Info.

Model NO.

PCX

Compatibility

SUVs

Control System

PLC Control

Installation

Outdoor

Lifting Mechanism

Mechanical

Load Capacity

2350kg

Operation Mode

Fully Automatic

Safety Features

Anti-Collision Sensors, Emergency Stop, Overload Protection

Type

Automated Parking System

Pick-up Time

150s

Structure

Steel

Max Car Size

5300*1900*2000mm

📝 Product Description

Model(SUV)		5 Layers	6 Layers	7 Layers	8 Layers	9 Layers
Equipment Size	L	6000MM	6000MM	6000MM	6000MM	6000MM
	W	7200MM	7200MM	7200MM	7200MM	7200MM
	H	12300MM	14400MM	16500MM	18600MM	20700MM
Parking Spaces		8	10	12	14	16
Load Capacity(KG)		2350KG	2350KG	2350KG	2350KG	2350KG
Motor Power(KW)		5.5	9.2	15	18.5	22
Max Retrieve Time		≤87s	≤120s	≤135s	≤160s	≤165s

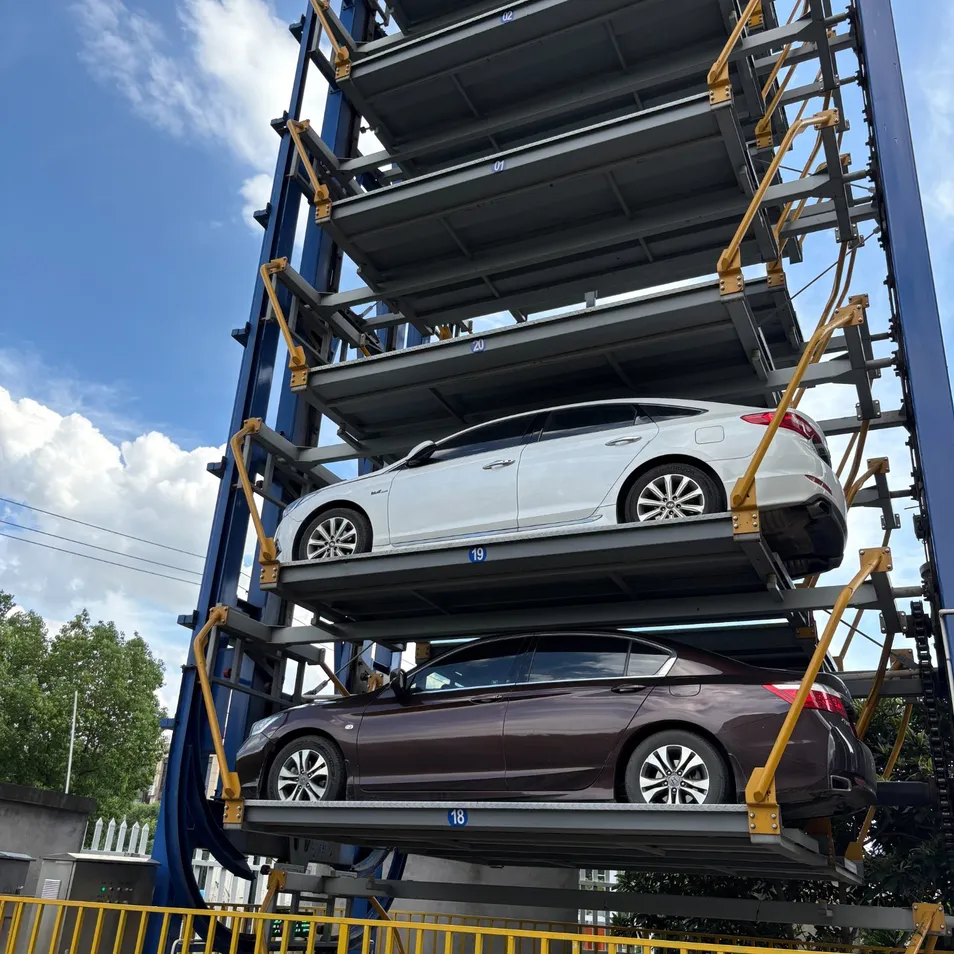

🖼️ Product Display

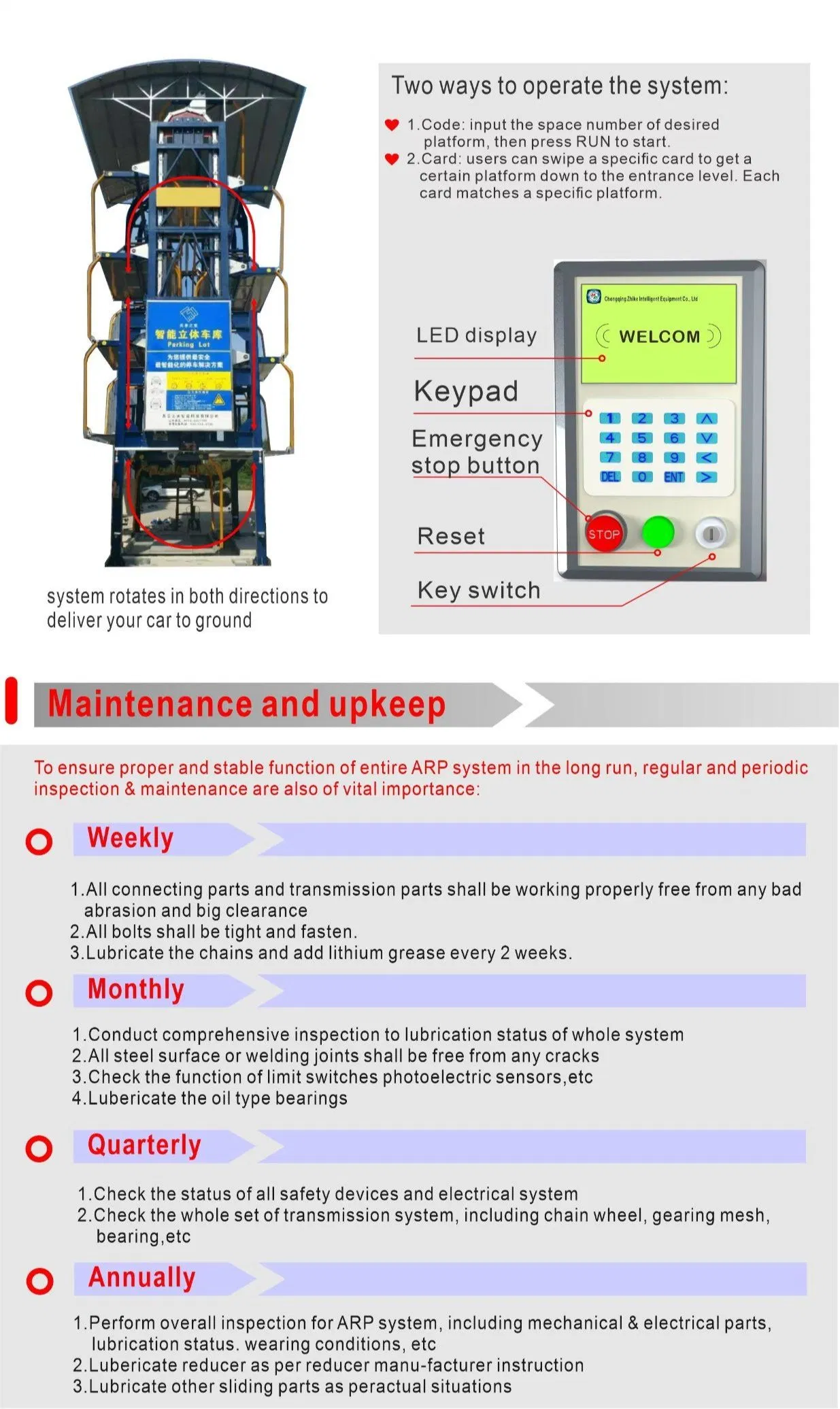

Key Advantages

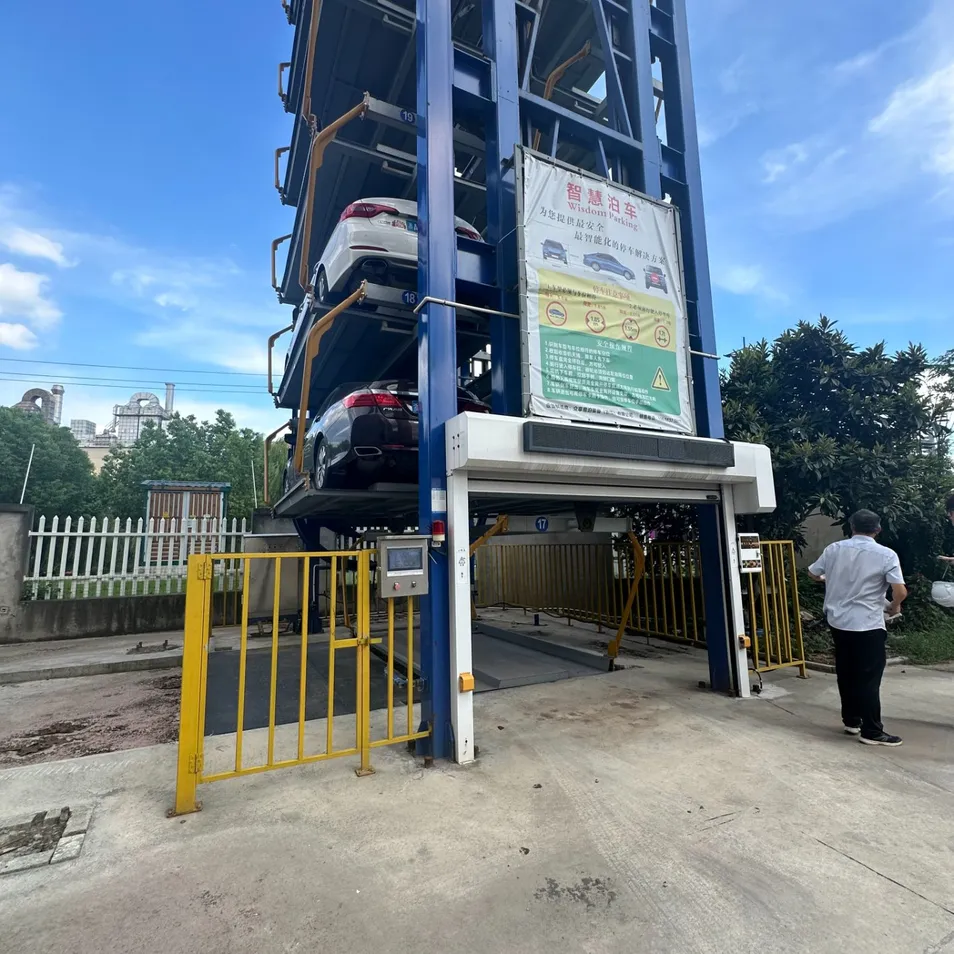

Design to park vehicles by vertically circulating cage in CW/CCW directions.
The most space efficient parking solution: park up to 20 cars in an area normally for 2 cars.
Simple one-touch control; does not require professional operators.
Intelligent rotation direction to shorten entry/exit time.
PLC automatic control system with touch screen interface.
Sandblasted steel parts with anti-corrosion primer and high-quality top coat.

🔍 Product Detail

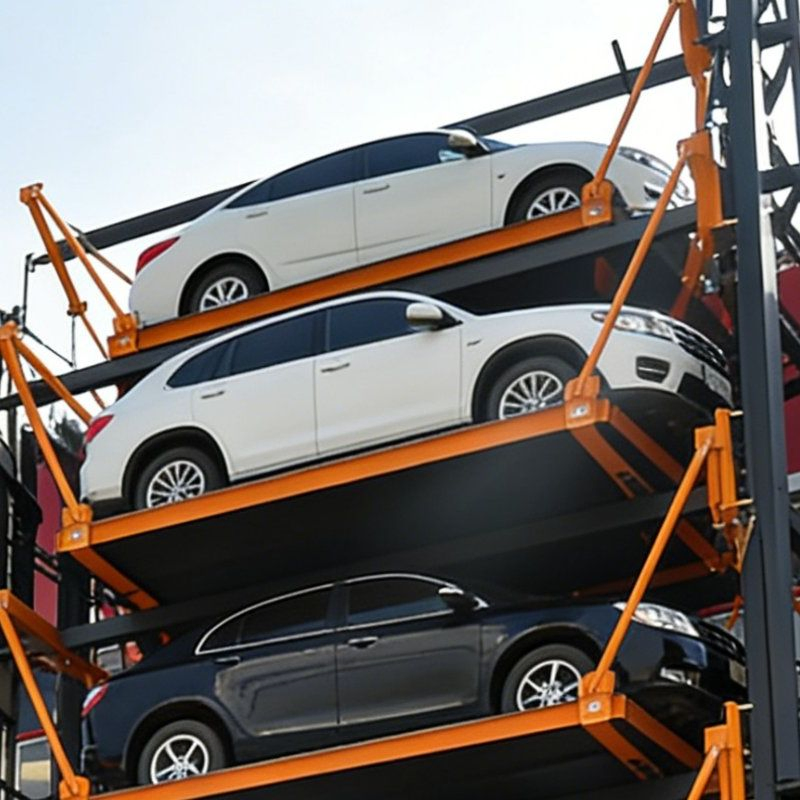

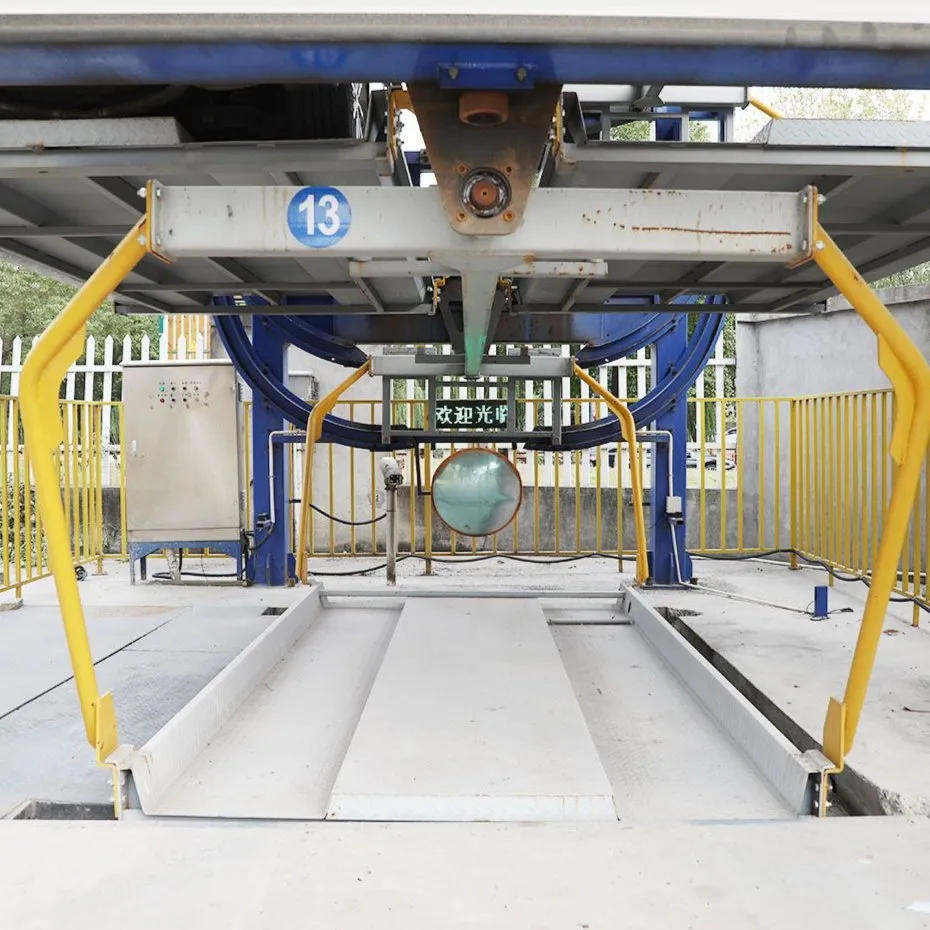

Load Platform

The dimensions of the vehicle-carrying plate may be customized in accordance with the specific requirements of the customer.

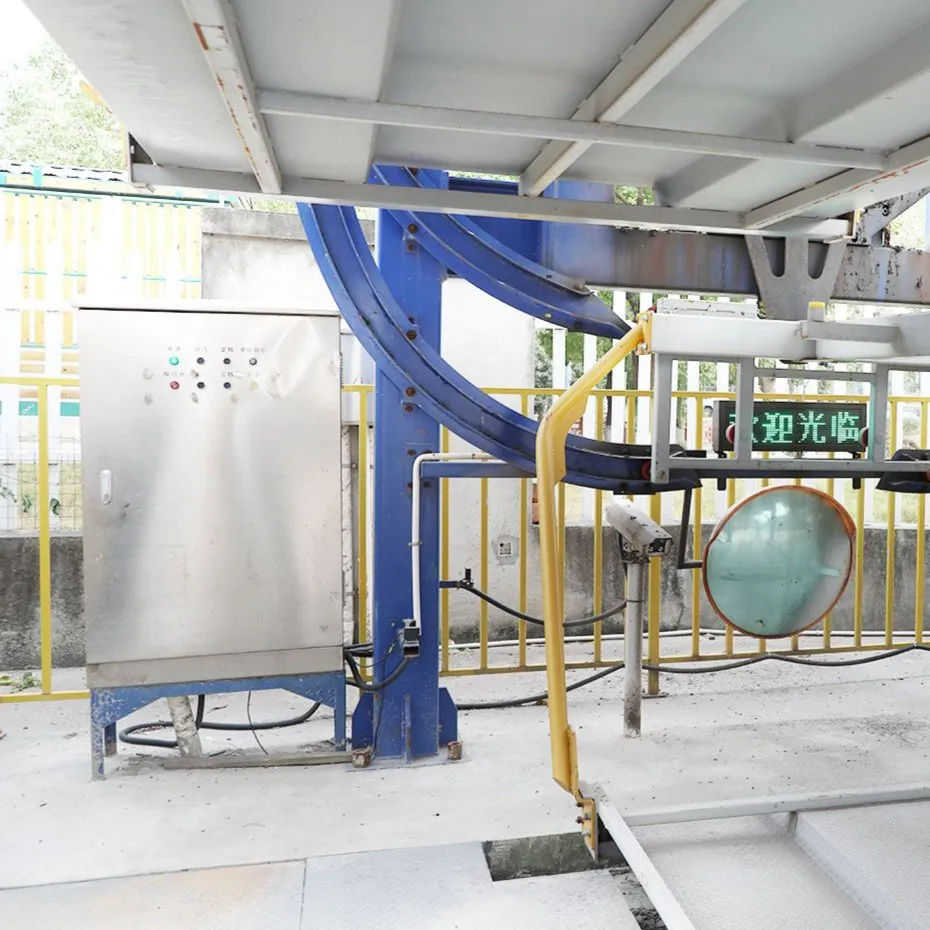

PLC Electrical Equipment

Equipped with high-quality PLC systems. The brand can be customized according to customer requirements for seamless integration.

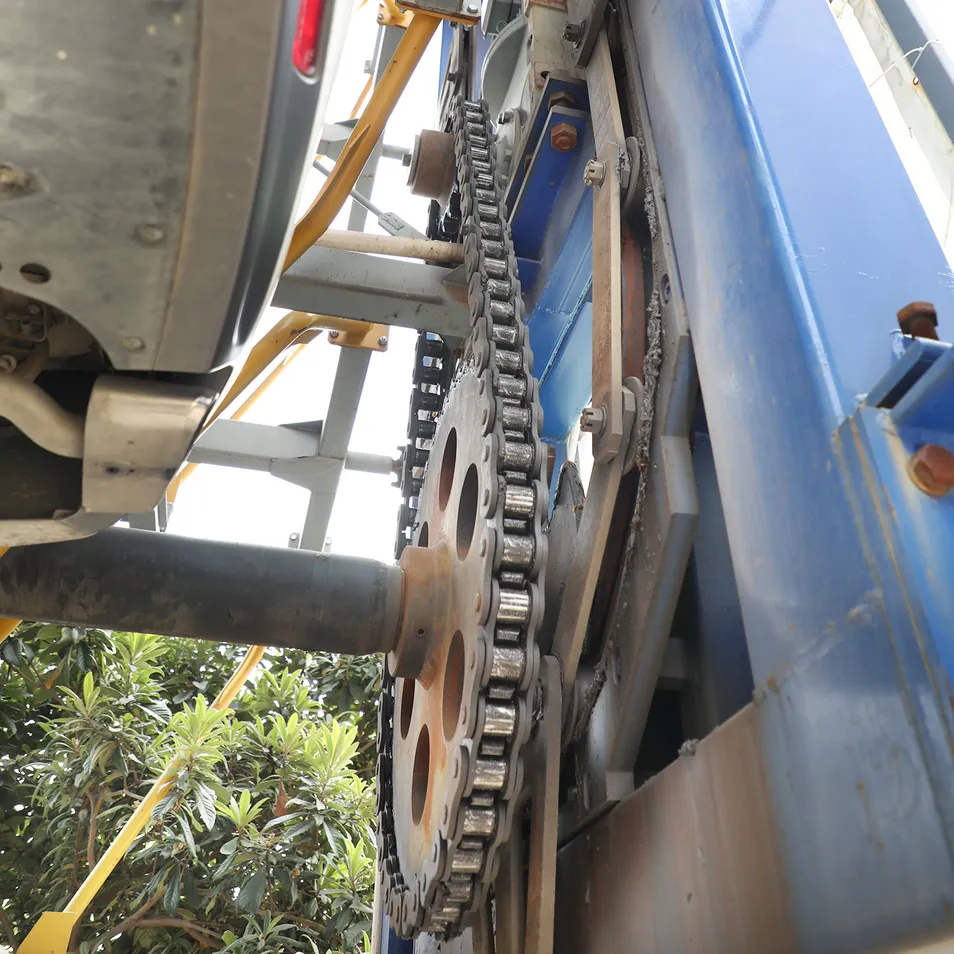

24A Gear Chain

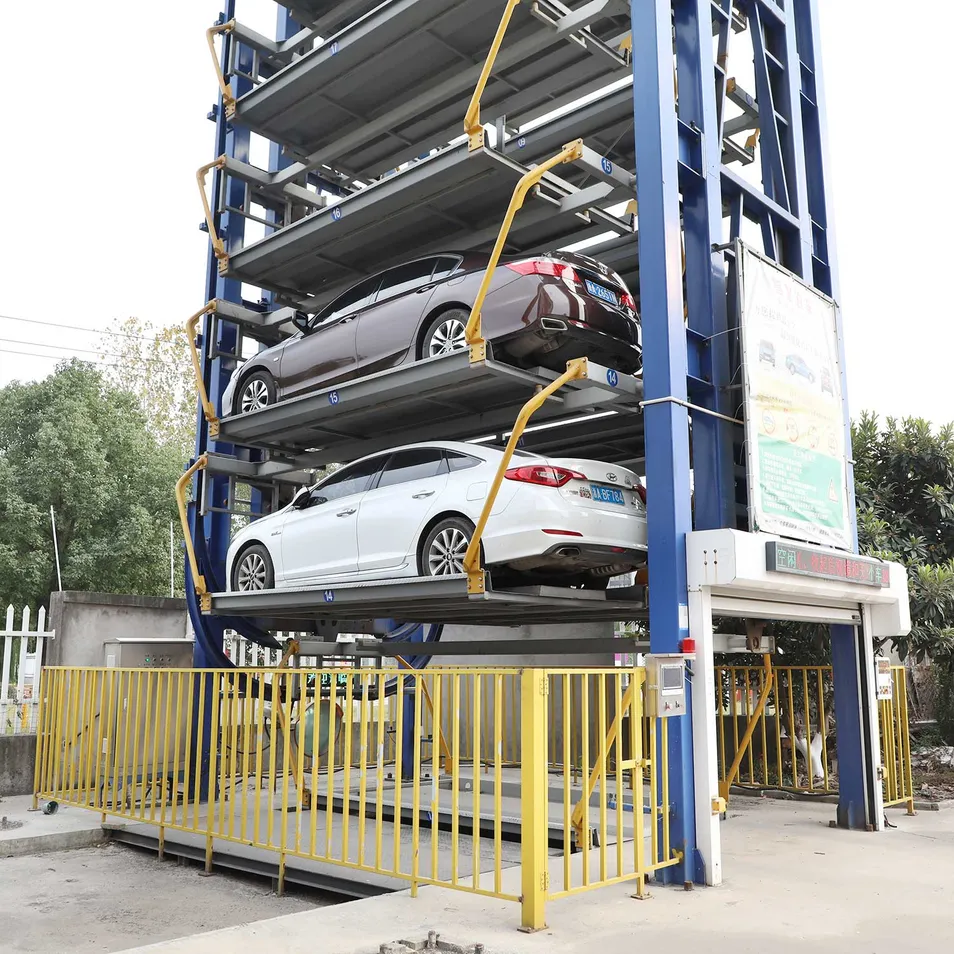

Fence (Optional)

🏢 Company Profile

We are a national high-tech enterprise specializing in the R&D, design, manufacturing, installation, and maintenance of mechanical parking equipment. Certified under the ISO9001 Quality Management System, the company has been recognized as one of the top manufacturers of stereo garages.

Leveraging a comprehensive industrial chain and strong technical capabilities, we offer a full range of intelligent parking products including lift-and-slide, vertical circulation, and planar movement systems. Our products have successfully entered global markets in Europe, Southeast Asia, the Middle East, Africa, and the Americas, known for safety, innovation, and modern industrial design.

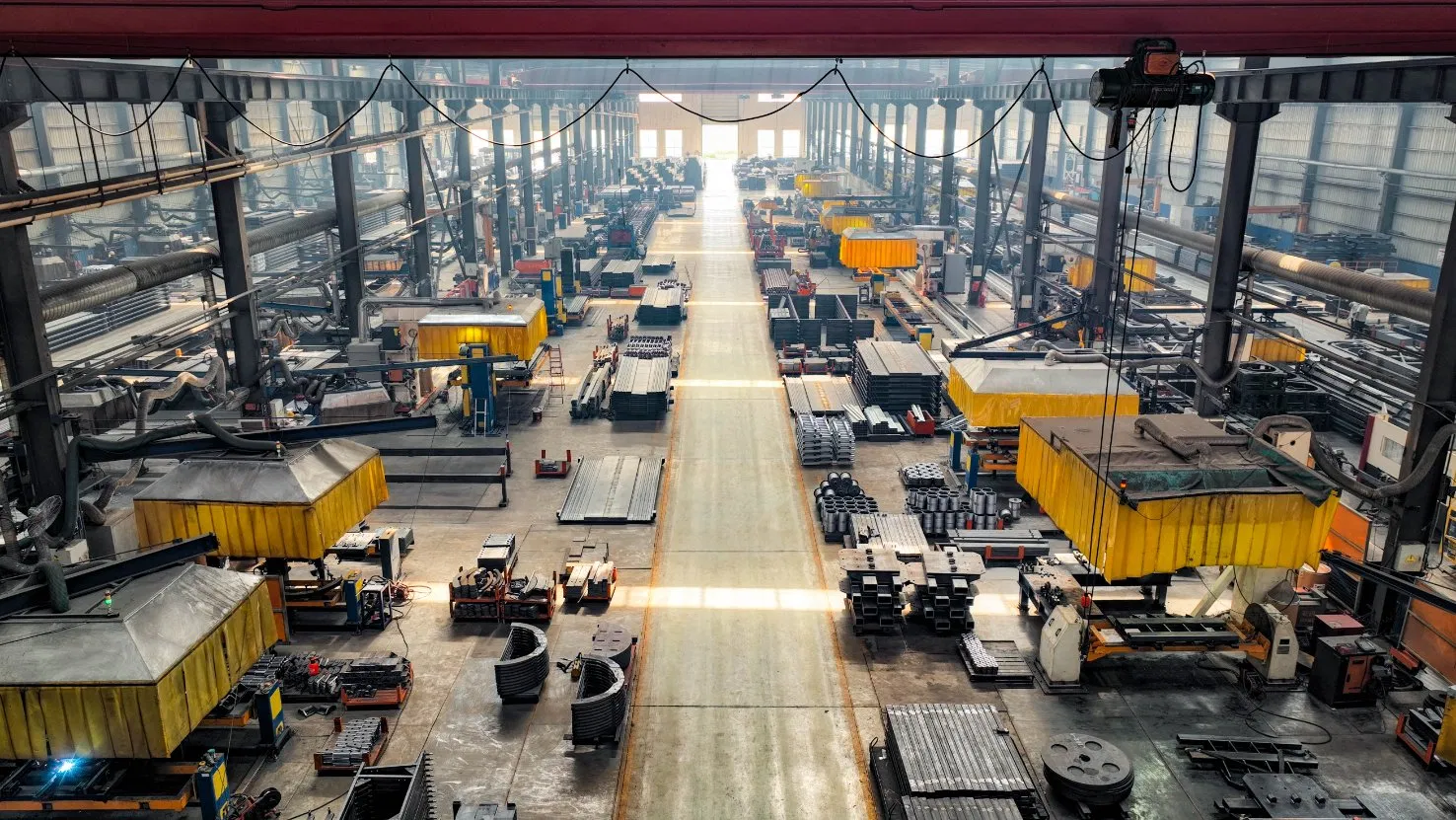

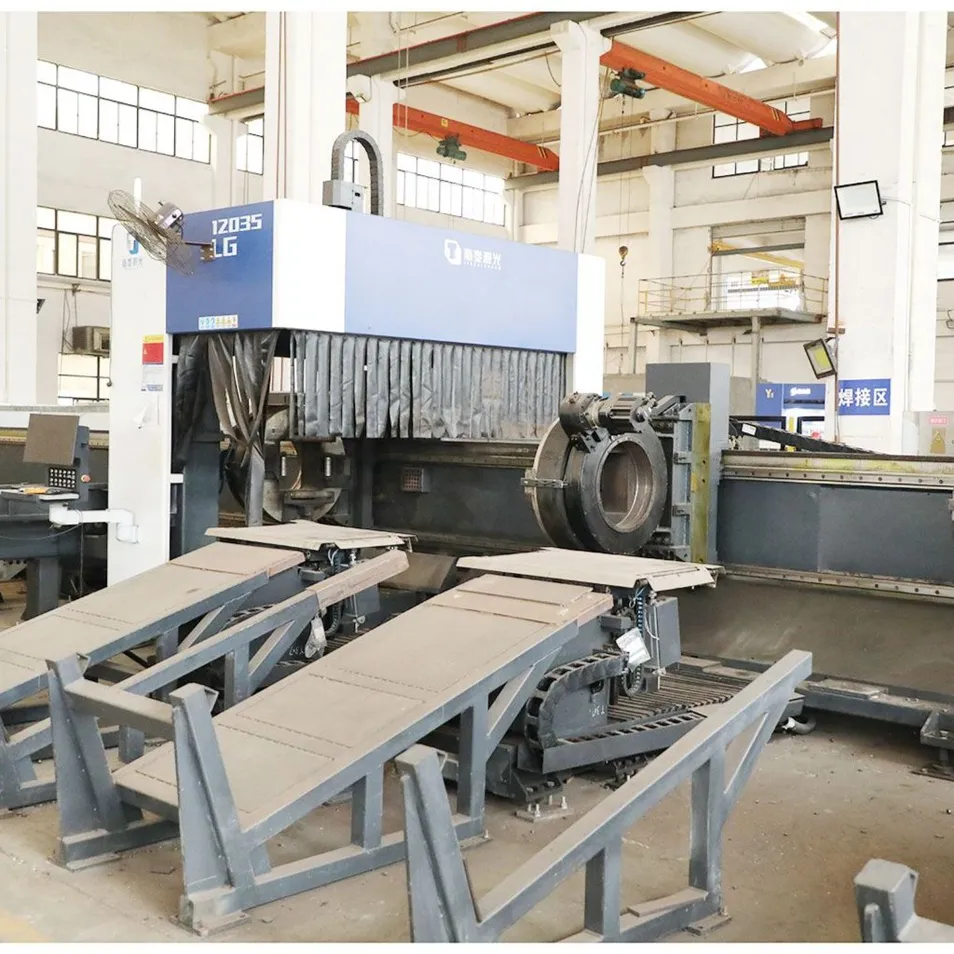

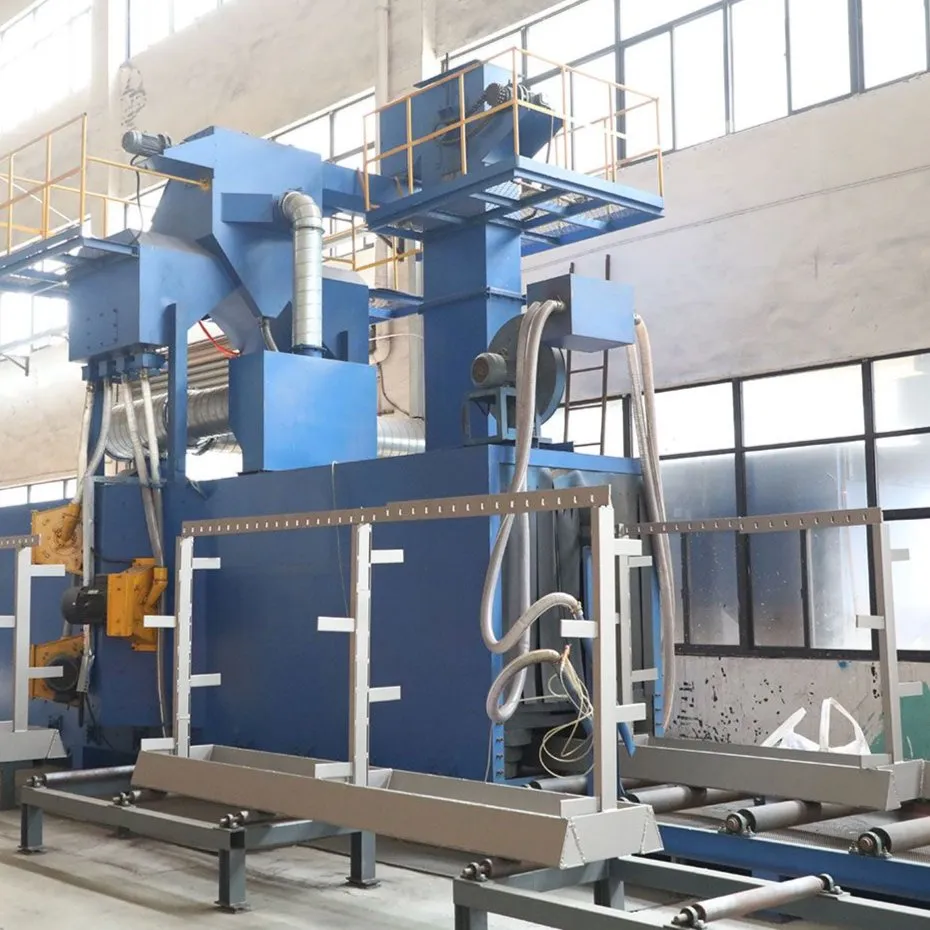

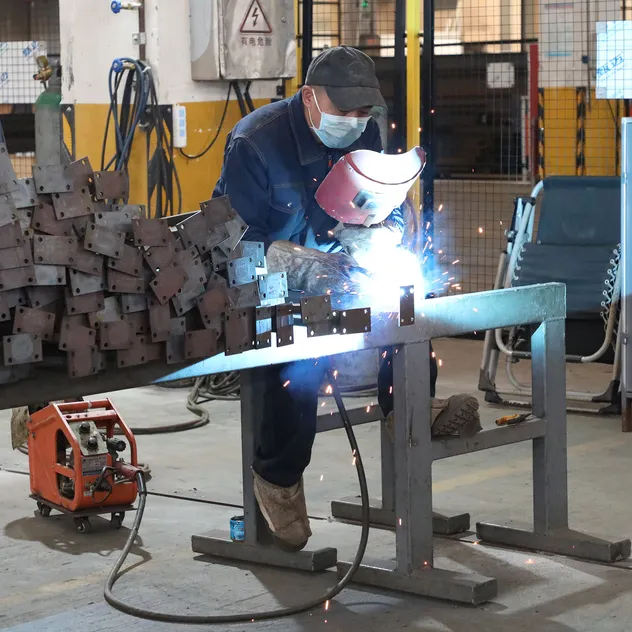

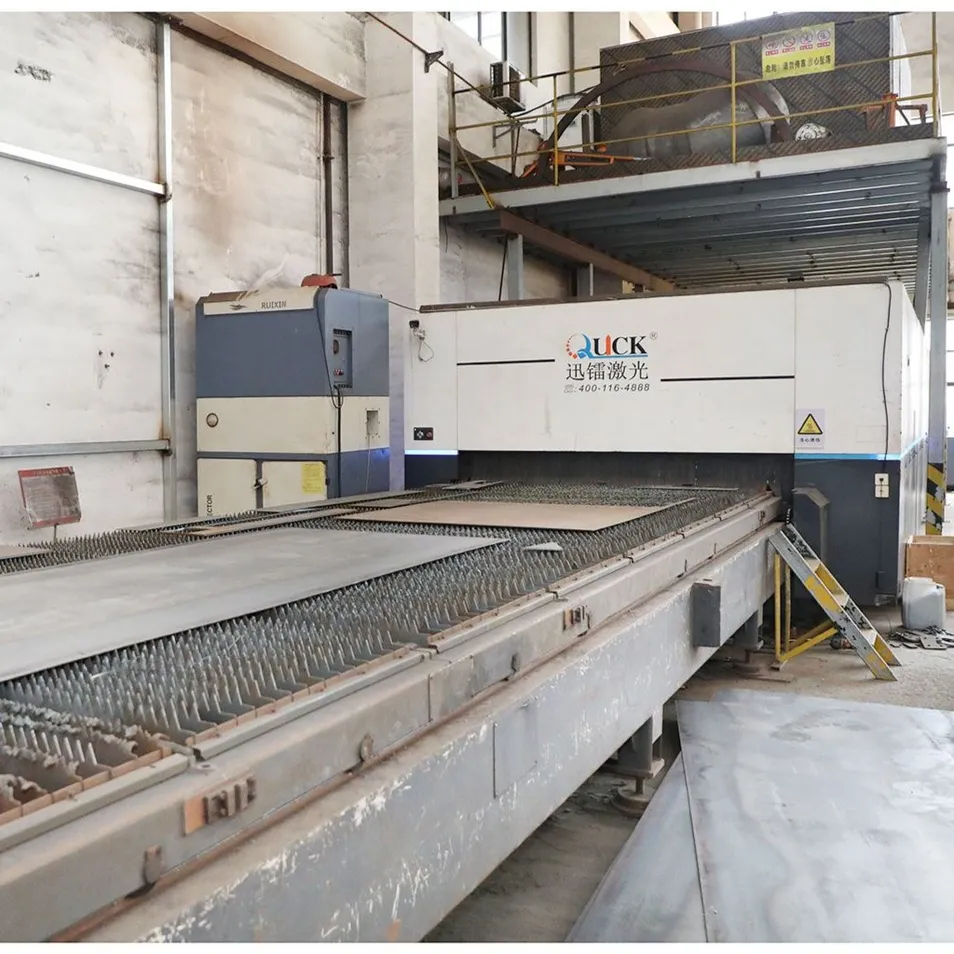

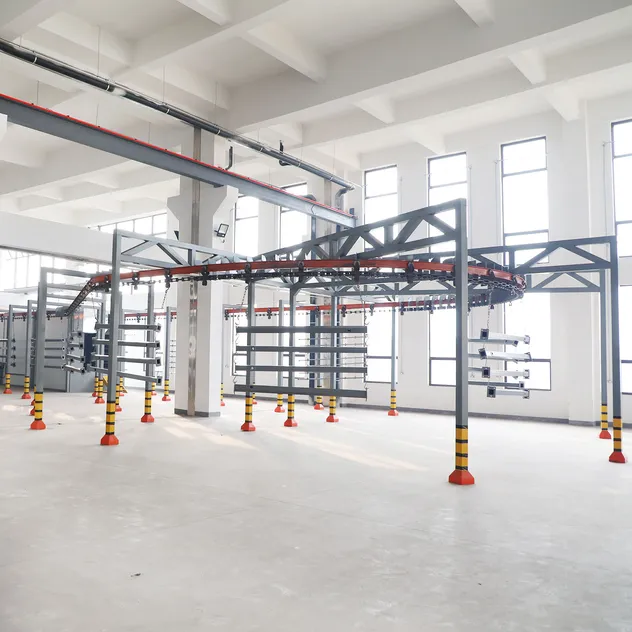

🏭 Factory Overview
